10. AIR INLET, cont'd

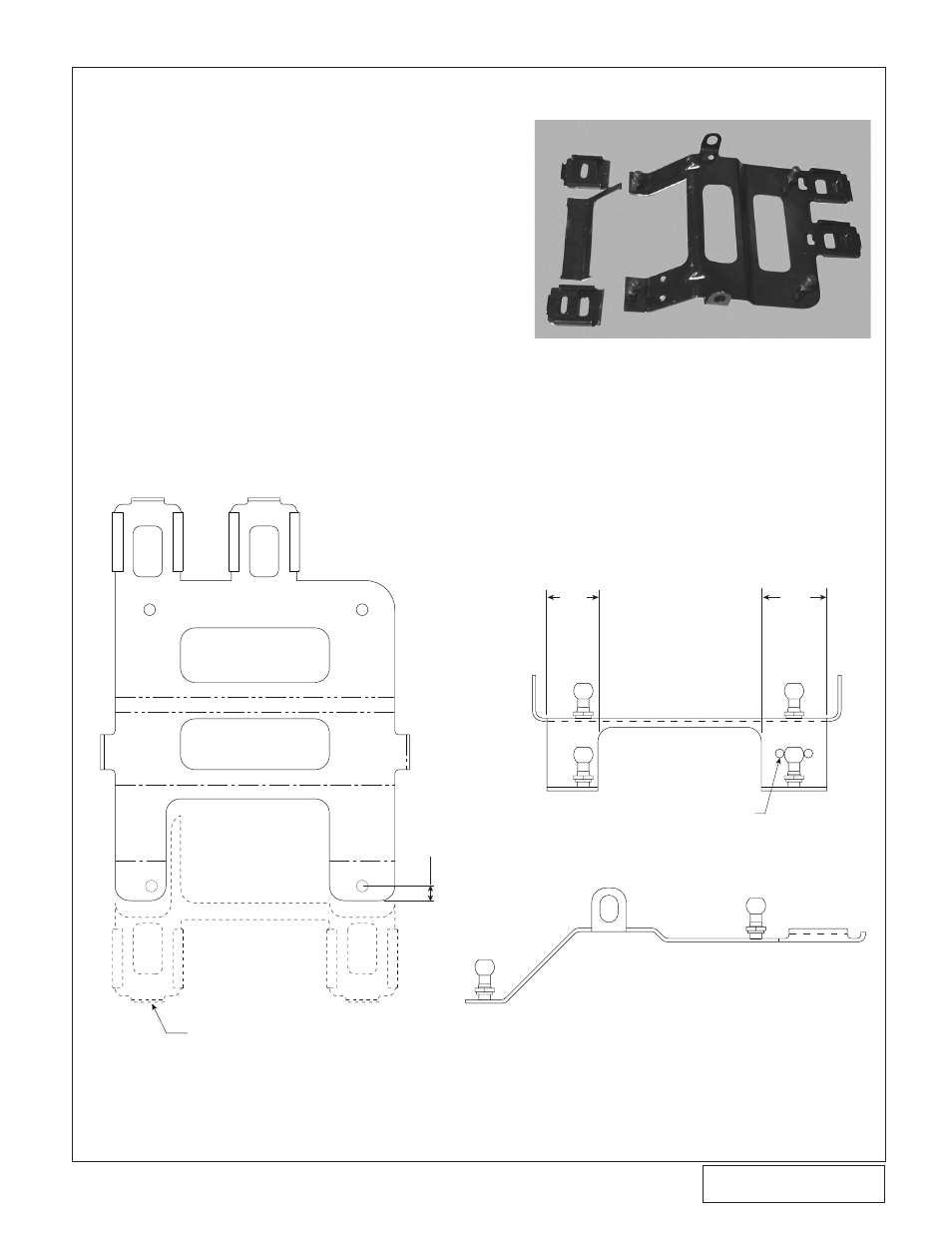

Fig. 10-i / Modified Shaker Bracket

(Mach 1 Models Only)

FRONT VIEW AFTER

MODIFICATION

USE THE BRACKET PROVIDED

AS A TEMPLATE AND

DRILL 2 Ø5/16" HOLES

DRIVER SIDE VIEW

AFTER MODIFICATION

THIS PORTION REMOVED

AND DISCARDED

.50

2.25

1.75

Fig. 10-j / Bracket mods (Mach 1 Only)

3. Modify the steel air scoop base mount as

shown. (See Figs. 10-i, 10-j.) A bandsaw is

the best tool to use. An abrasive cut-off wheel

or hacksaw may also be used.

4. Temporarily place the modified steel air scoop

base into its factory location on top of the

intake manifold. Loosely install the two factory

screws that secure the rear of the bracket to

the intake manifold (do not tighten at this time).

The two supplied relocation brackets must be

attached to the modified steel scoop base.
