Vortech 2000-2003 Ford Focus Zetec/SVT - Manual (Page 23)

P/N: 4FJ020-010
©2004 Vortech Engineering, LLC
All Rights Reserved, Intl. Copr. Secured
19APR04 v3.0 Focus(4FJ v3.0)
11

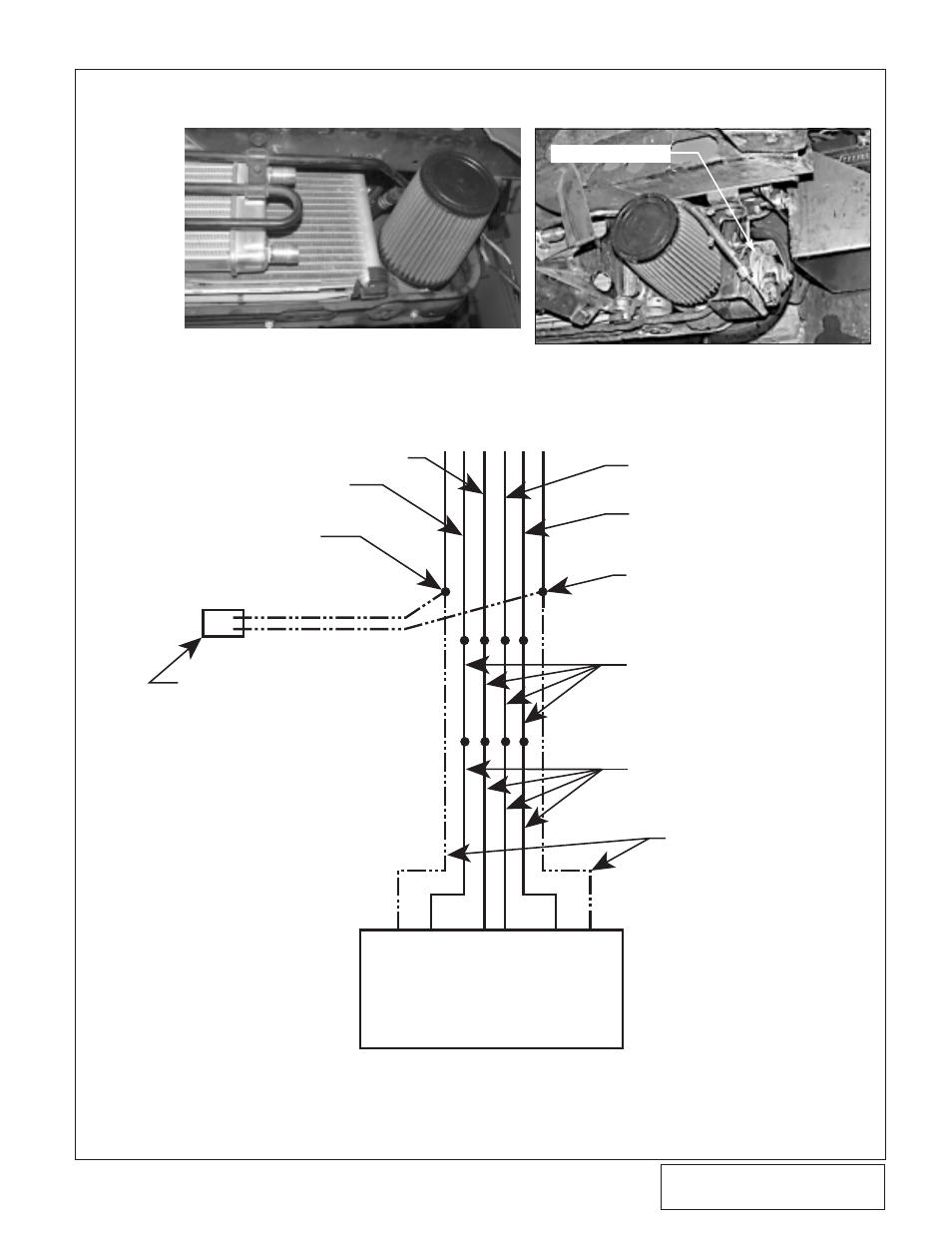

Fig. 9-d
Fig. 9-f
Fig. 9-e / MAF Plug Modifications
9. AIR INLET ASSEMBLY, cont’d
(SVT ONLY) -BLACK w/WHITE
STRIPE CONNECT TO THE BROWN
AIR TEMP SENSOR WIRE
(ZX3 ONLY) -EXTEND WIRE TO
MAF PLUG (ALL 6 WIRES)
RED
BLACK/BROWN
SUPPLIED IAT SENSOR CONNECTOR
(SVT MODELS ONLY)
MAF PLUG
(SVT ONLY)
WIRING NO LONGER
ATTACHED TO MAF PLUG
GREEN w/RED STRIPE
WHITE w/BLUE STRIPE
WIRING EXTENSIONS
EXTEND WIRES TO THE MAF
NEW LOCATION
BROWN w/BLUE STRIPE
(SVT ONLY) -WHITE w/PURPLE
STRIPE CONNECT TO THE RED
AIR TEMP SENSOR WIRE
(ZX3 ONLY) -EXTEND WIRE TO
MAF PLUG (ALL 6 WIRES)
BLACK w/ORANGE STRIPE
NEW HORN LOCATION
