Analog Port Operation 51
4
Click SIP to view individual SIP version information.

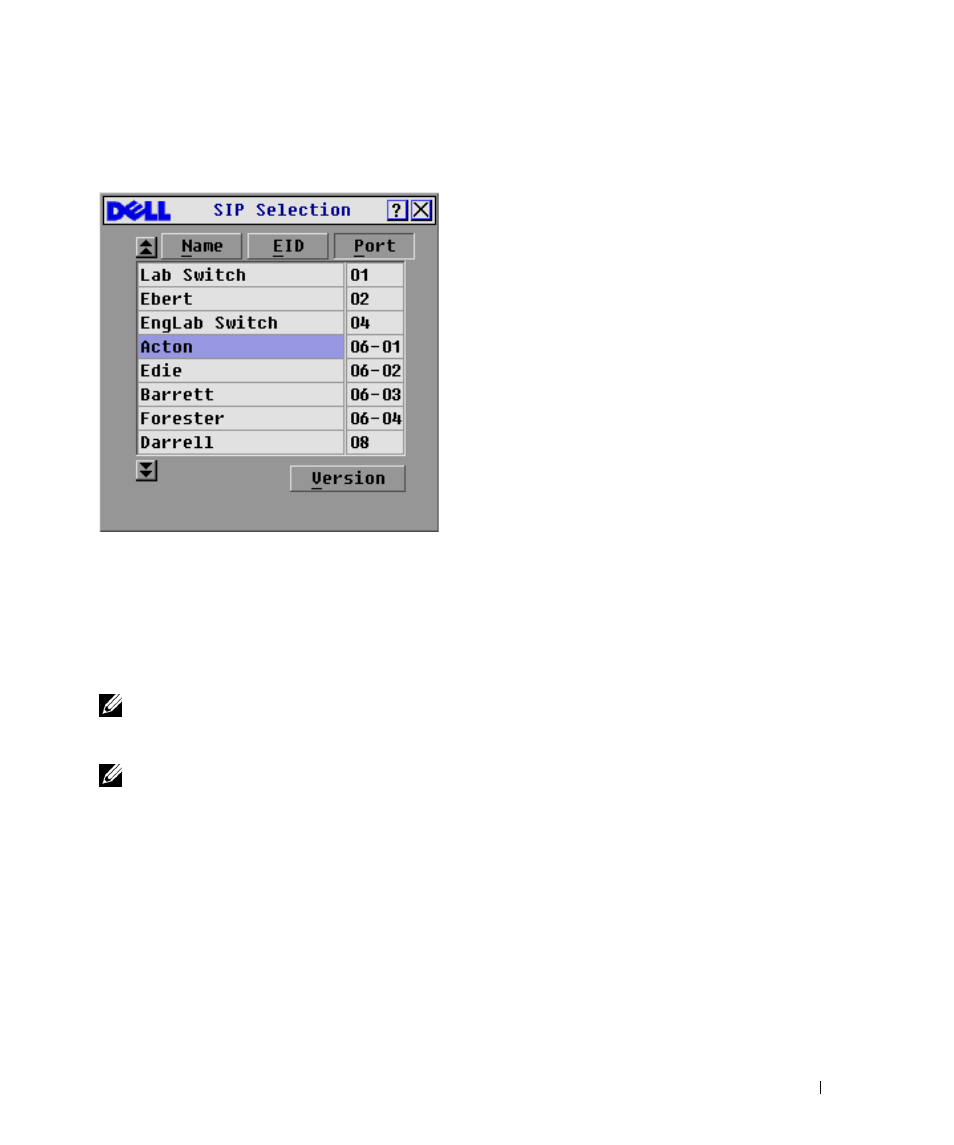

Figure 3-32. SIP Selection Dialog Box
5
Select the SIP that you wish to view and click Version. The SIP Version dialog box appears.
For more information on loading firmware, see "Appendix A: Flash Upgrades".
6
Click X or press to close the various Version dialog boxes.
Resetting a SIP
SIPs can be reset using the Reset button in the SIP Version dialog box.
NOTE: This procedure is only relevant where your 2161DS Console Switch system involves a PS/2 SIP
attached to a tiered switch. On these occasions, it may be necessary to reset the SIP when the tiered
switch is not recognized.
NOTE: If a reset is performed, when a 2161DS Console Switch is connected directly to a server, and not
a Cascade Switch, the mouse/keyboard may fail to respond. When this occurs, the target server requires
a reboot.
To reset a SIP:
1
Press . The Main dialog box will appear.
2
Click Commands - Display Versions. The Version dialog box appears.
3
Click SIP. The SIP Selection dialog box appears.
4
Select the PS/2 SIP that you wish to view and click Version. The SIP Version dialog box
appears.
