Analog Port Operation 55

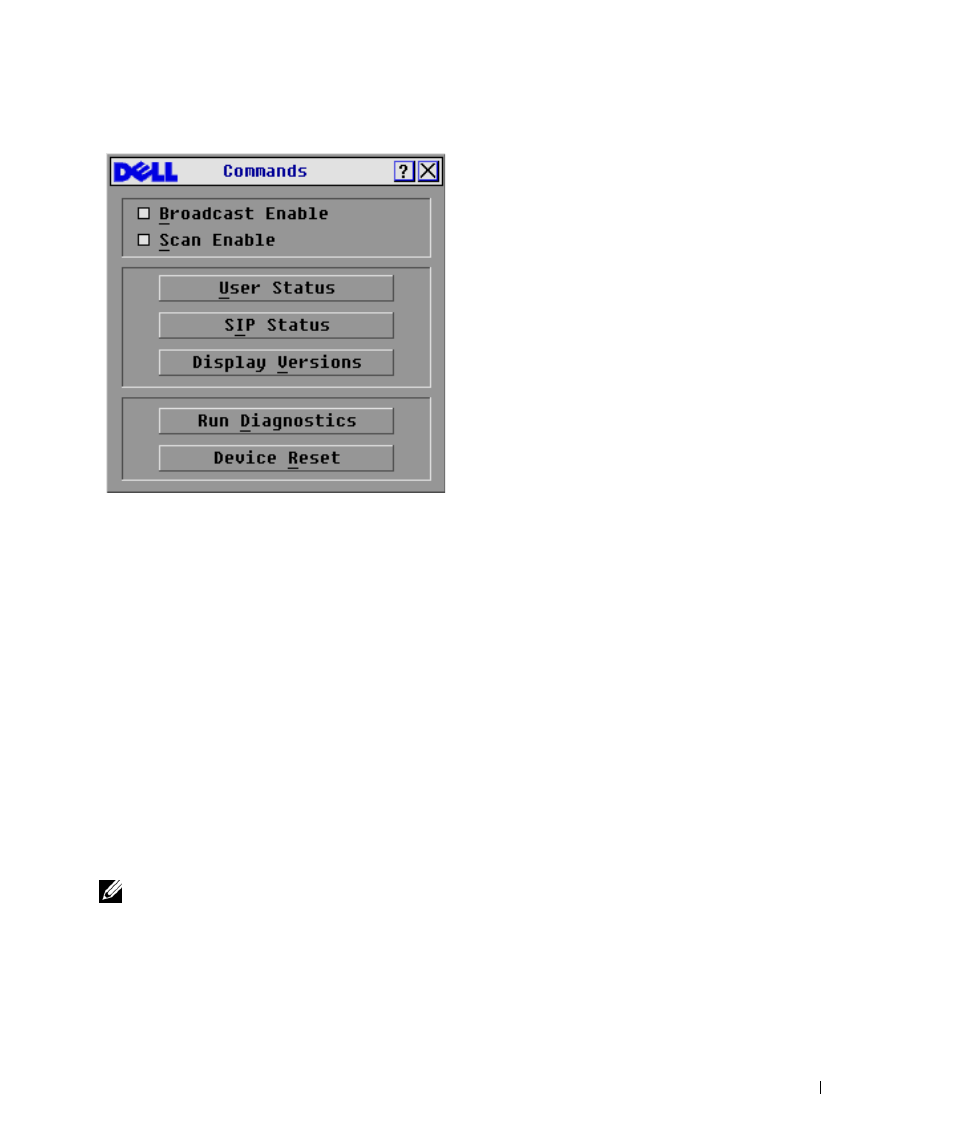

Figure 3-36. Command Dialog Box
3
Select Scan Enable in the Command dialog box.
To cancel scan mode:
1
Select a server if OSCAR is open.
-or-
Move the mouse or press any key on the keyboard if OSCAR is not open. Scanning will stop at
the currently selected server.
-or-
Press . The Main dialog box will appear.
2
Click Commands. The Command dialog box appears.
3
Clear Scan Enable.
Broadcasting to Servers
The analog user can simultaneously control more than one server in a system, ensuring that all
selected servers receive identical input. You can choose to broadcast keystrokes and/or mouse
movements independently.
NOTE: You can broadcast to only one server per ARI connection.
To access the Broadcast dialog box:
1
Press . The Main dialog box will appear.
2
Click Setup - Broadcast. The Broadcast dialog box appears.
