Dell 2161DS - Manual (Page 10)

10 Product Overview
w
w
w
.d
el
l.
c
o
m
|
s
upp
ort
.del
l.
com
Access Via Network Connection
No special software or drivers are required on the attached computers. Users access the 2161DS
Console Switch unit and all attached systems via Ethernet from a PC running the Remote Console
Switch Software application. This software resides on the user PC only. User PCs can be located
anywhere a valid network connection exists. The 2161DS Console Switch unit can be configured
on a separate network from your data network, allowing access to your servers even if your
applications network is down.

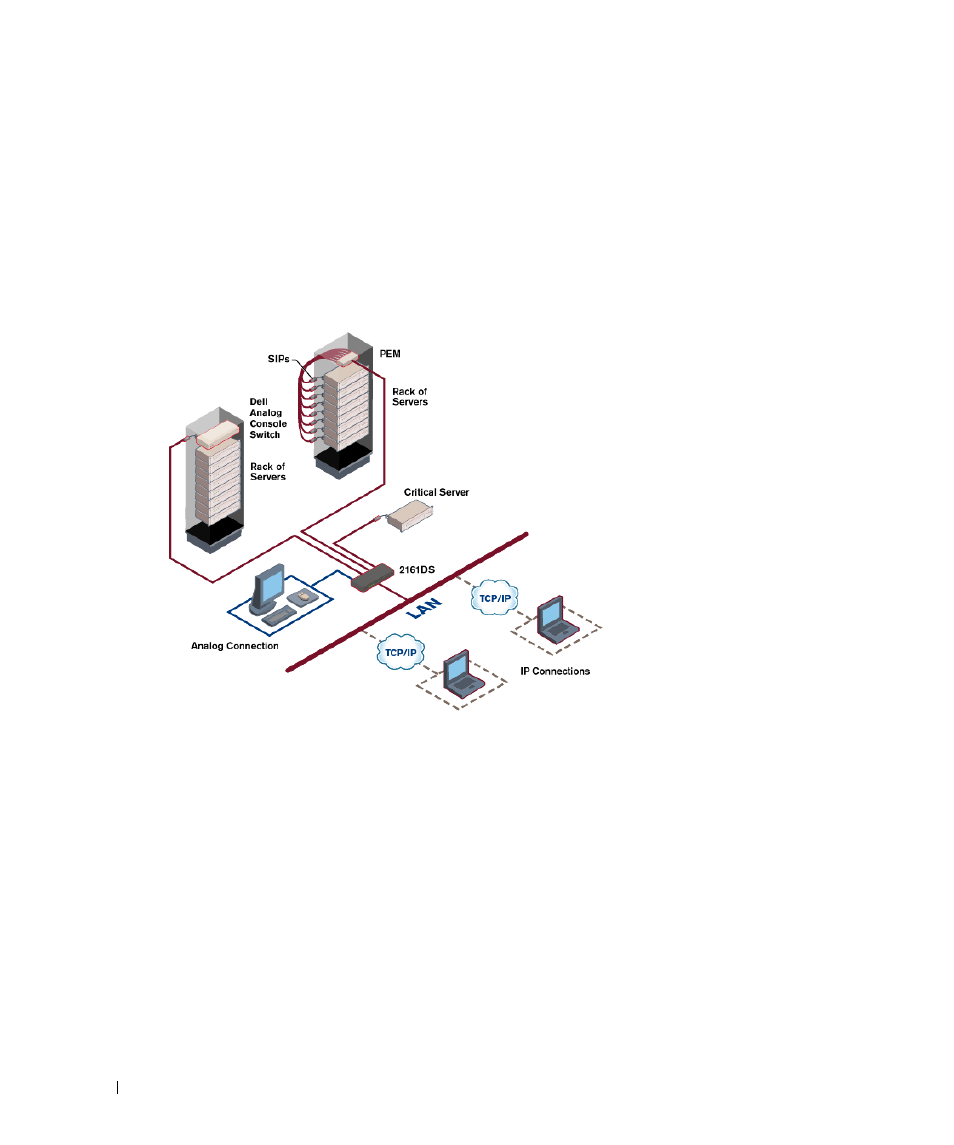

Figure 1-1. Example 2161DS Console Switch Configuration
Point and Click Control With the Remote Console Switch Software
The Remote Console Switch Software is a cross-platform management application that allows you
to view and control the 2161DS Console Switch and all attached servers. The Remote Console
Switch Software provides secure appliance-based authentication, data transfers, and
username/password storage. By utilizing an Explorer-like interface for navigation with an intuitive
split-screen interface, this software provides you with a single point of access for your entire system.
From here, you can manage the 2161DS Console Switch, install a new 2161DS Console Switch
unit or launch a video session to a system server. Multiple servers can be accessed by one user. Each
additional computer's video will appear in a separate program window.
