Analog Port Operation 49

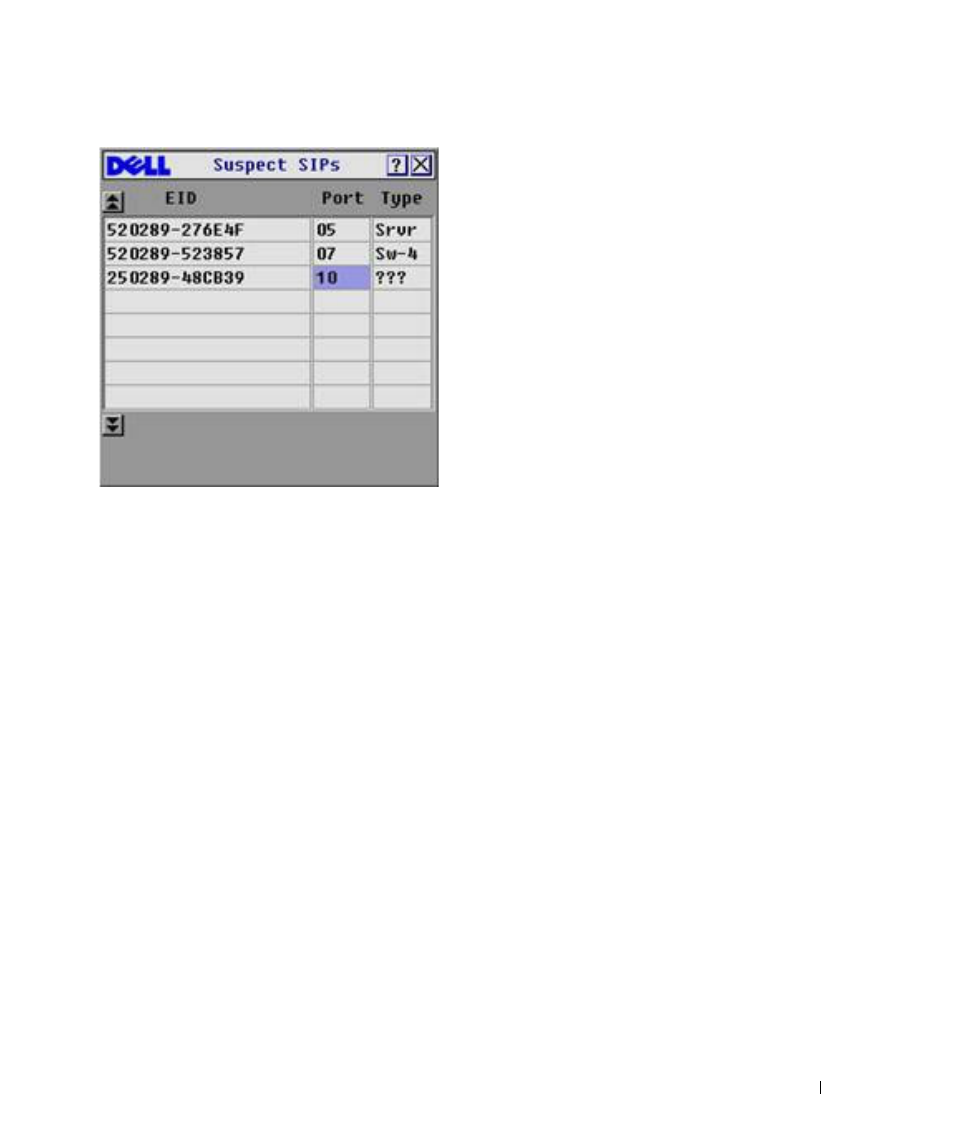

Figure 3-29. Suspect SIPs Dialog Box
a
In Figure 3-29, the first SIP is connected to a server. The second SIP is connected to
port 4 on a cascaded switch, where 'sw' is the switch and the number 4 indicates the
fourth port.The third SIP is inactive. Make a note of each SIP in the suspect SIP list. You
may want to troubleshoot each of these SIPs.
Displaying Version Information
Use the Version dialog box to display the 2161DS Console Switch and SIP firmware versions, as
well as keyboard and mouse information for the currently selected server. For optimum
performance, keep your firmware current. For more information on updates, see "Appendix A:
Flash Upgrades".
To display version information:
1
Press . The Main dialog box will appear.
2
Click Commands - Display Versions. The Version dialog box appears. The top half of the box
lists the subsystem versions in the 2161DS Console Switch unit.
