Velodyne SC-IWBB User Manual
Page 58
www.velodyne.com
52 -SC-IW Installation Manual
Step 16 - Install Metal Grille Insert

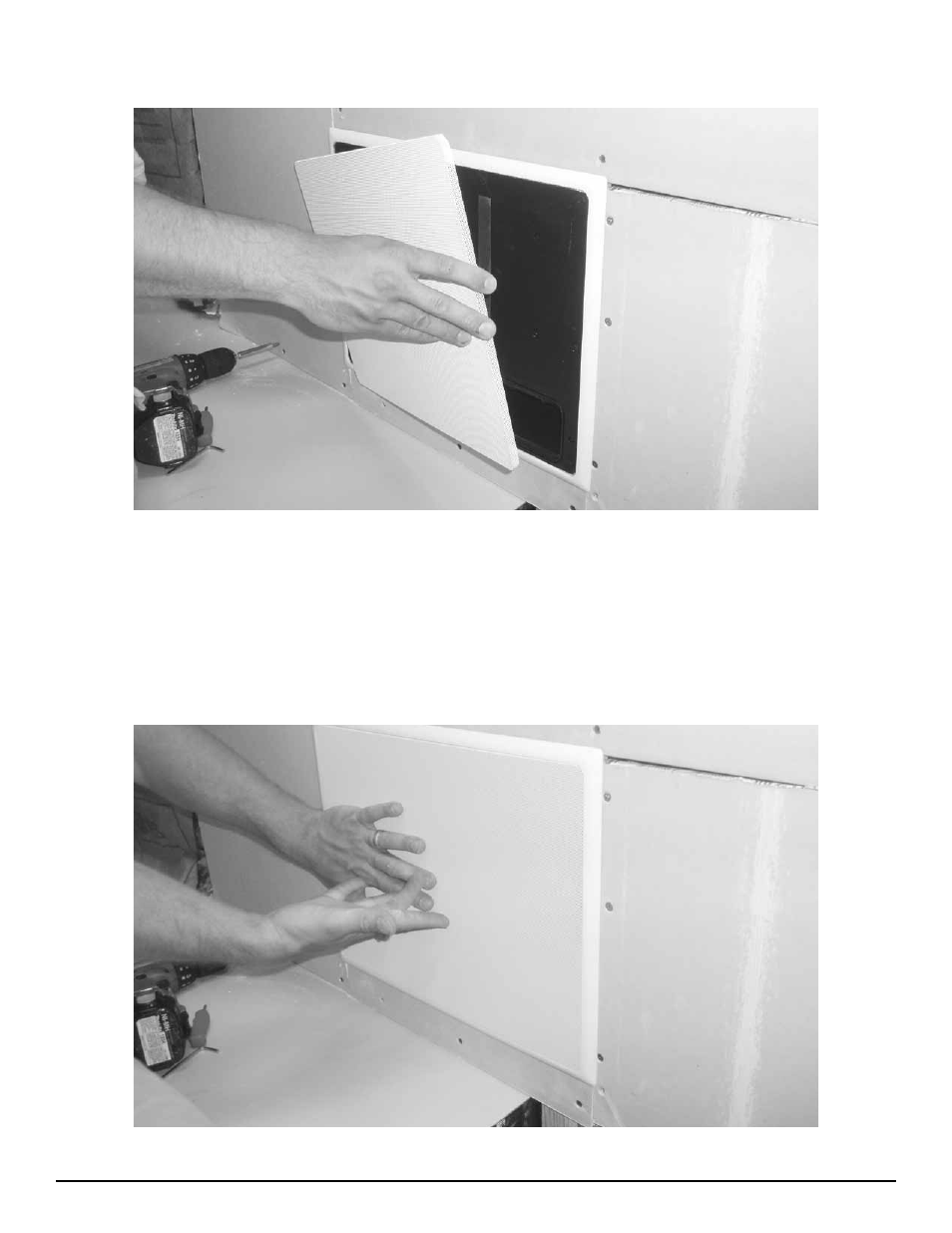

Figure 52: Metal Grille Insert Installation
Step 17 - Installation Complete
The installation is complete. Test the installation with bass audio material and check for buzzes, rattles, and air
leaks and address accordingly.
The grille can also be painted to match the de´cor if desired.
Figure 12: Completed Installation
