Velodyne SC-IWBB User Manual
Page 23
www.velodyne.com
SC-IW Installation Manual - 17
Step 3 - Route Wire
Route the wire from the location where the electronics gear is located to where the SC-IW will be. There is “extra
space” between the studs and the back box in the event that the wire has to pass along the side of the back
box to the driver module.

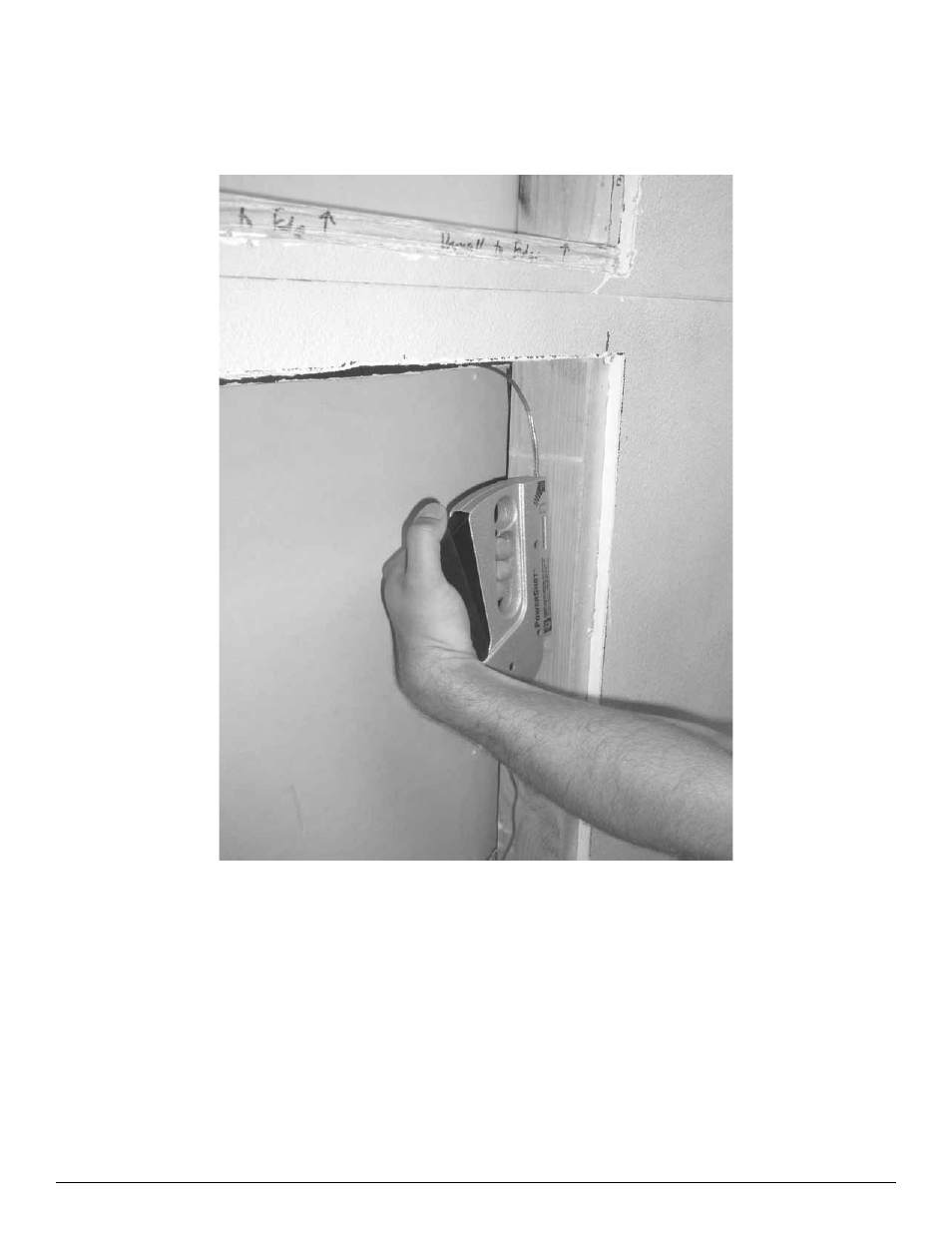

Figure 15: Route Wire
