Velodyne SC-IWBB User Manual
Page 29
www.velodyne.com
SC-IW Installation Manual - 23
Step 10 - Install Designer Grille
Remove metal grille insert from the plastic grille and insert into opening into the wall. The grille should then be
affixed to the studs using the four included phillips drive pan head screws.

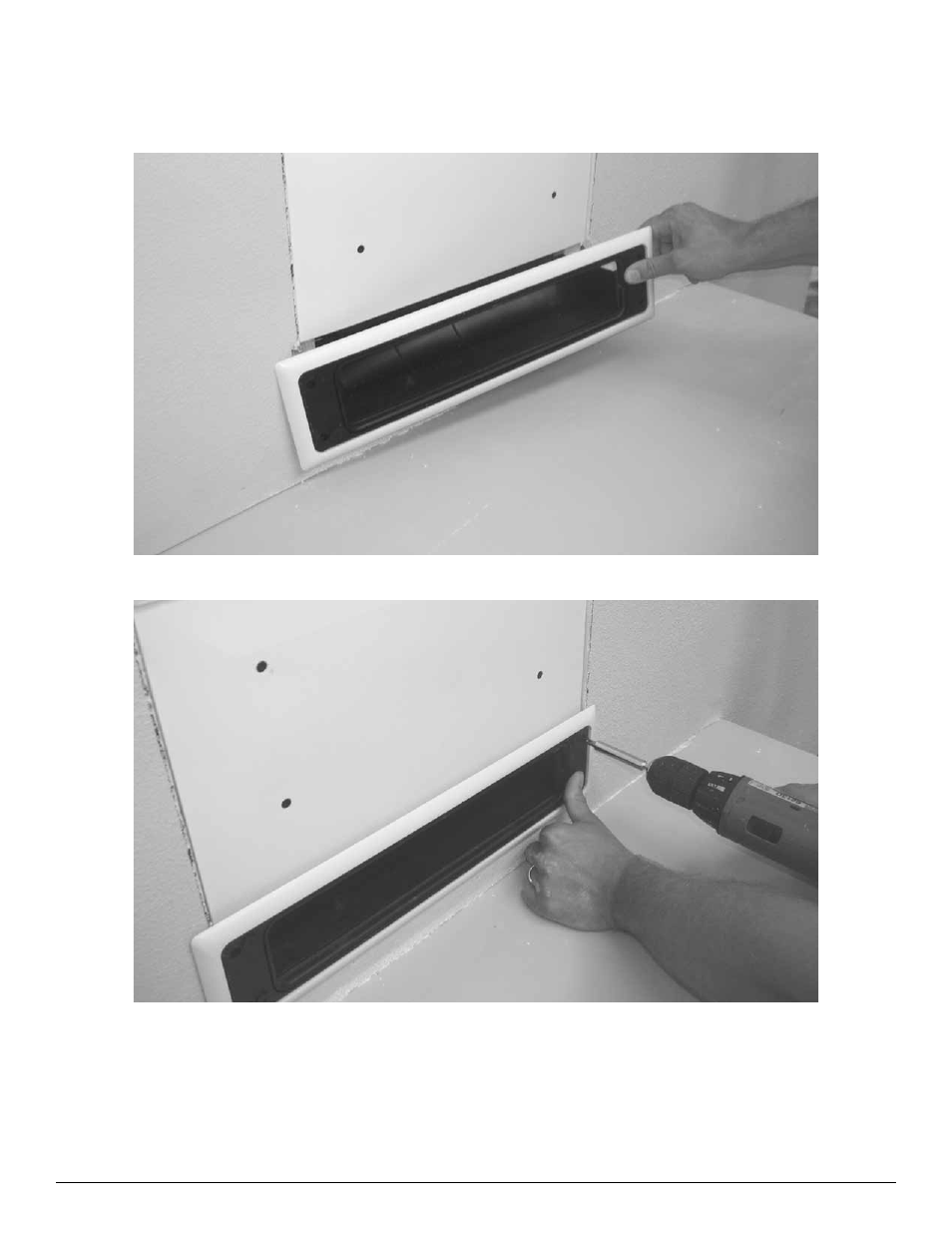

Figures 21a and 21b: Designer Grille Installation
