Velodyne SC-IWBB User Manual
Page 32
www.velodyne.com
26 -SC-IW Installation Manual
Step 2 - Cut Out Drywall Per Template
Once the studs have been located, place the supplied designer grille template on the wall. After the template
is secured to the wall with either staples or tape, score the drywall along the lines as detailed on the template.

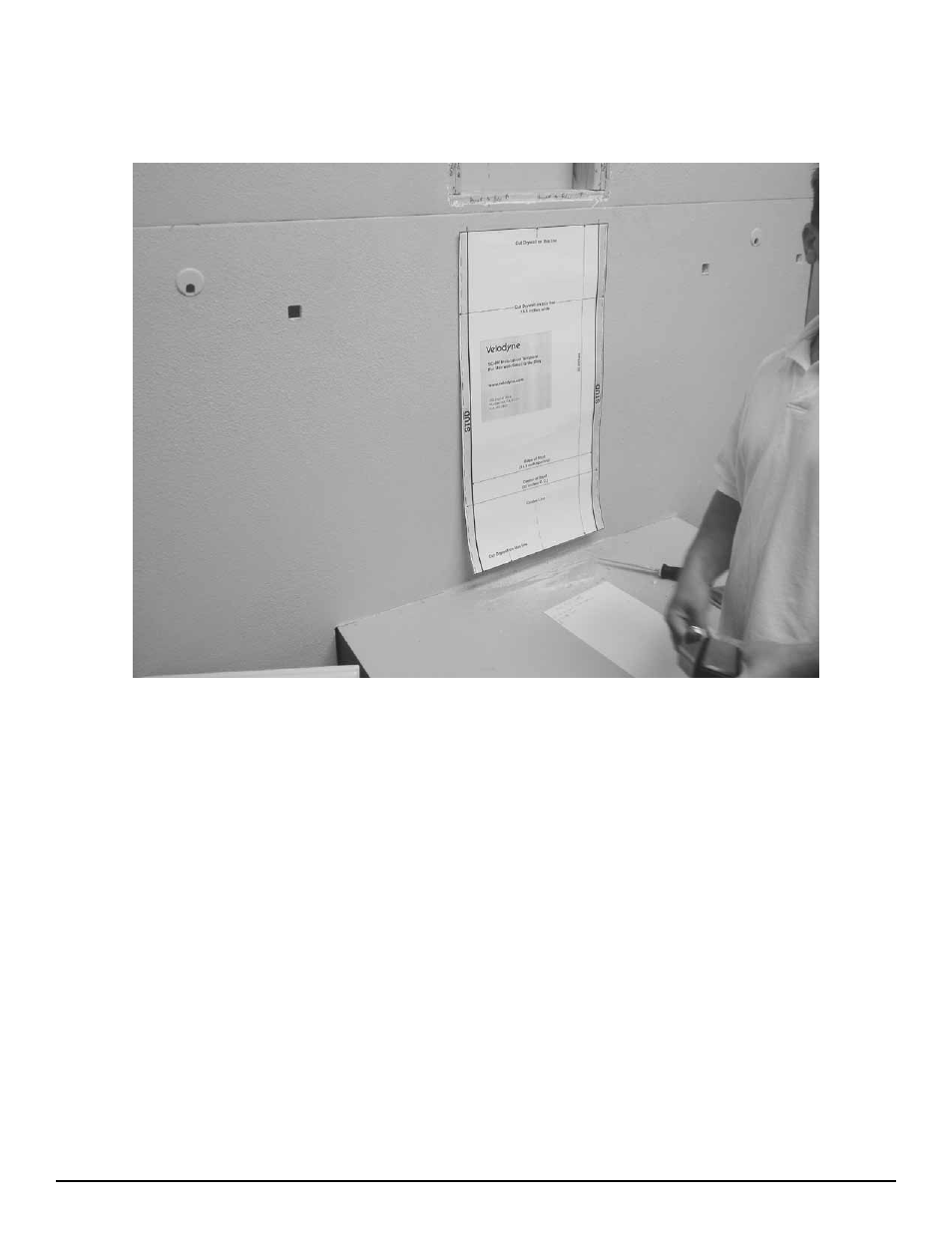

Figure 25: Cut Out Drywall Per Template
Note: Two templates are provided, one for the designer grille and one for the standard grille. Be sure to use the
correct template!
