44 -SC-IW Installation Manual
Step 7 - Install Subwoofer into Opening
After the in-wall subwoofer assembly is complete, orientate the assembly inside the wall. In this installation
example we have decided to face the unit downward. It is critical at this point that the top of the cabinet module
is aligned with the top of the cutout and that the brackets are 5 3/8” from the bottom of the cutout.

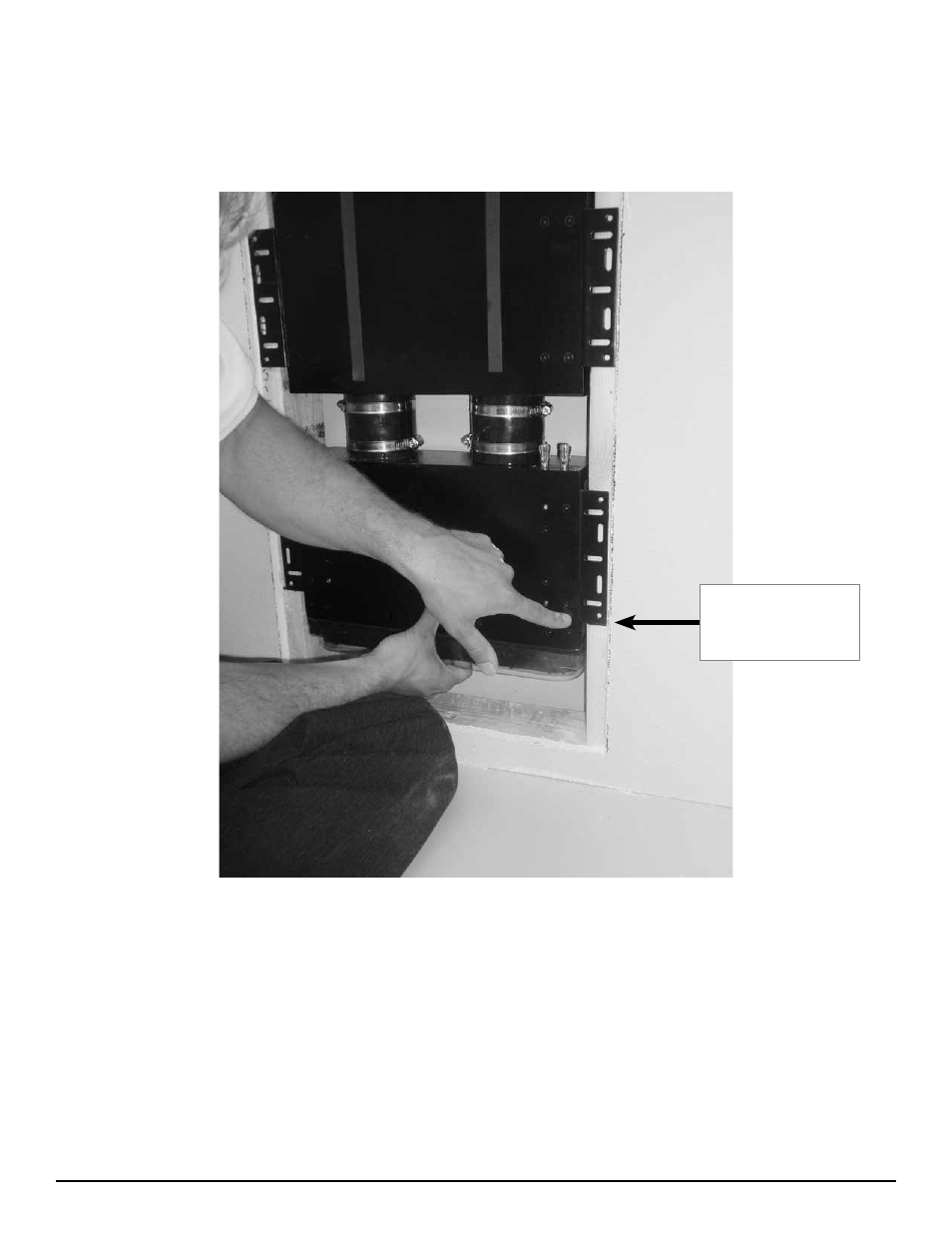

Figure 44: Subwoofer Installation
5 3/8”
