Dimensions
Dimensions are for
reference only.
Contact the factory
for certified drawings
for a particular model
number.
Linear = mm/inches

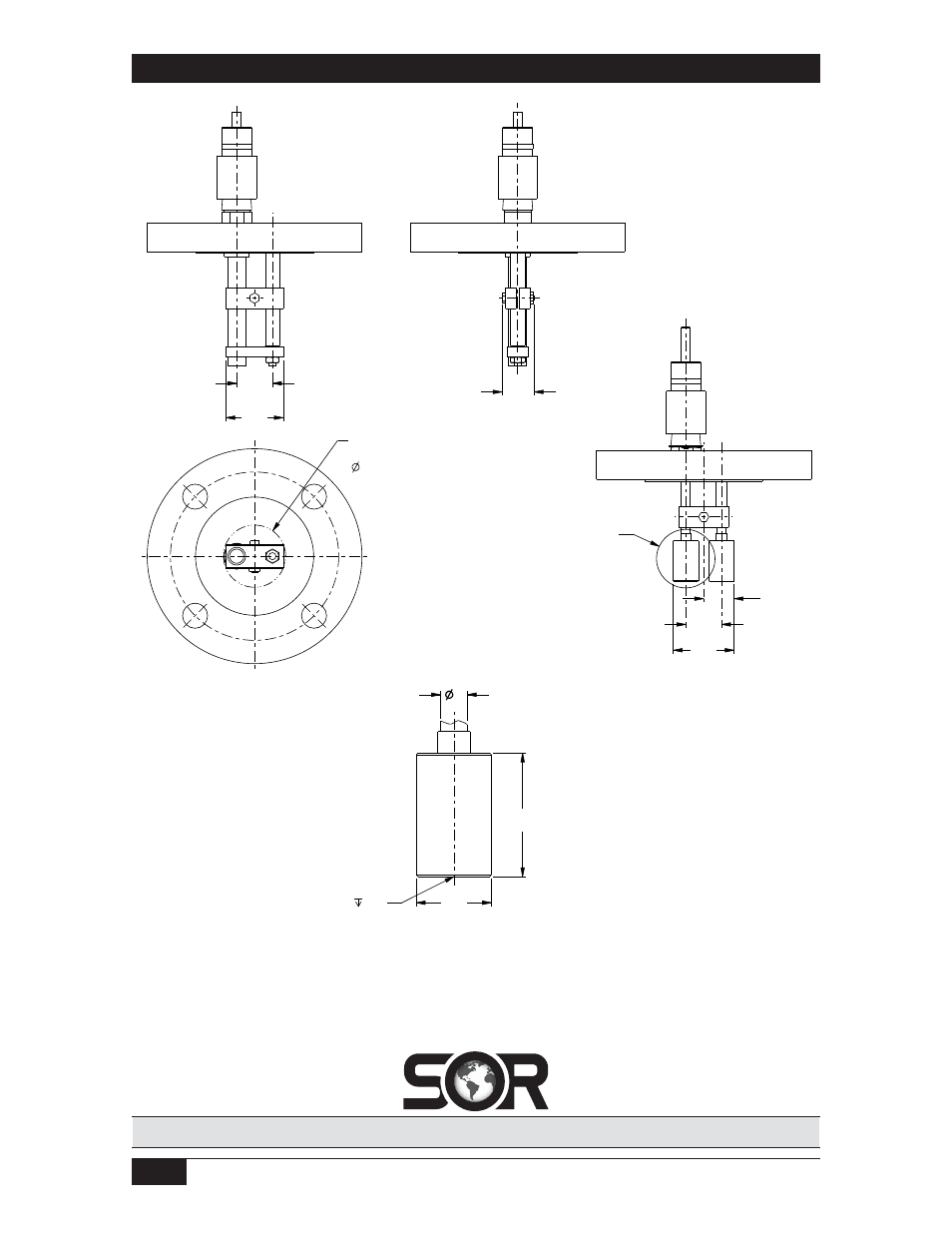

Drawing 0390652
D
36.5
1.44
22.2
0.88
DETAIL A
SCALE 1.5
3/4-16 UNF-2B X 11.1
0.44
MINIMUM CLEARANCE HOLE
FOR INSTALLATION
54.9
2.16
50.8
2.00
31.8
1.25
28.4
1.12
31.8
1.25
54.0
2.13
27.0
1.06
DUAL RIGID PROBE DETAIL
SEE DETAIL A
DUAL CABLE PROBE DETAIL
3/4-16 UNF-2
