4/24 Form 1571 (10.13) ©SOR Inc.
THIS DRAWING IS THE EXCLU
NO USE WHATSOEVER OF THE I
HEREON, NOR REPRODUCTION I
MADE WITHOUT THE EXPRESS WR
TOLERANCES:
(UNLESS OTHERWISE SPECIF
FRACTIONS: ±1/64
DECIMALS: .XXX±.005 .XX±
ANGLES: ±1°
MACHINE FINISH: 63 RMS

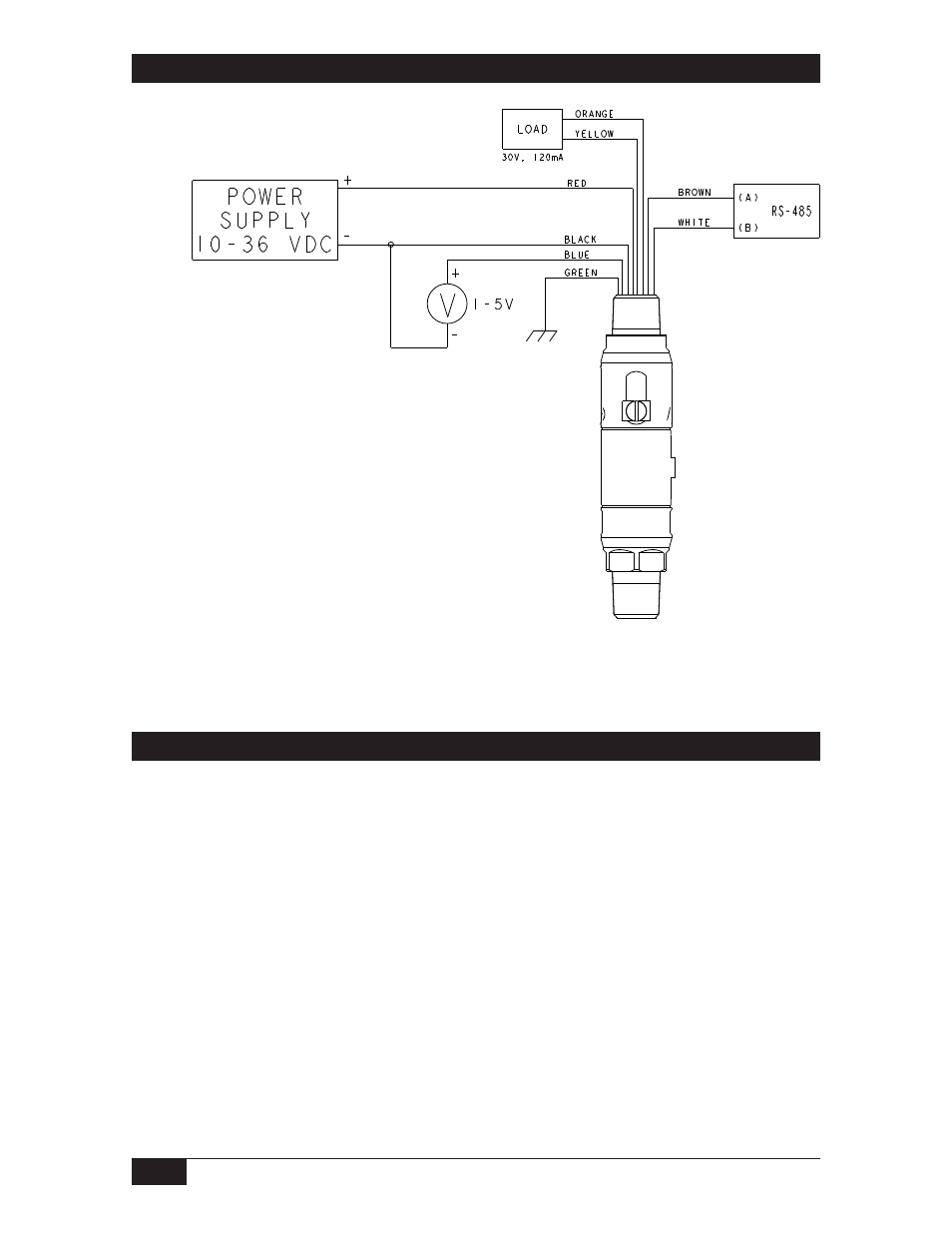

Electrical Termination - 1-5 VDC Output
Drawing
0190359
NOTE: An external ground screw is included for additional earth ground connection.
72” flying leads are provided for connection
to a terminal strip within a cabinet or a splice
within an outlet box:
Red (+) 10-36 VDC + Power Connection
Black (–) Power Supply Ground
Orange Switch Contacts:
Yellow Normally Open Solid-State Relay
Brown RS-485
(A)
White RS-485 (B)
Blue (1-5 VDC Output)
Green Earth Ground
Bare Drain Wire - Connected to
Earth Ground (trimmed at factory)
}
}
Switch Operation
The 815PT switch output is a solid state, normally open relay that is rated to 30V,
120mA. This switch can be configured nine different ways depending on your
application requirements, as noted below. Specific switch action can be requested
at the time of order. In all nine configurations, the fail-safe state for the 815PT switch
output will be open (i.e., if power is removed from the 815PT, the switch contacts will
open automatically). The 815PT has a 0.25% URL switch set point accuracy.
Switch Output Default – Mode 3 is the default configuration for the 815PT switch
output. In this mode the switch output is closed when the process pressure is within
a user selectable range and open when the pressure is outside of these boundaries.
This is designed for applications where there is a known acceptable operating pressure
range. For example, the “window” could be set for an acceptable operating range of
50PSI to 150PSI. The 815PT switch output will be closed when the pressure being
monitored is between 50 and 150 PSI. If the pressure goes below 50PSI or above
150PSI, the 815PT switch output will open (See

, page 5).
}
