Creating a blank program (1)
This button is used to call up a blank program template. Only section 1 is
pre-defined as the loading section. In this phase, the start conditions of the
programs are defined. The room temperature (20°C) is the standard
default.
NOTE
If the product is frozen outside the freeze-dryer (double-chamber method),
the shelf temperature must be adapted accordingly in section 1.
For all the other sections, the set values must be defined (see figure
below):
• Press the button “Insert section” (4) and select the position of the
section as well as the freeze-drying phase. The section will be inserted
at the defined position.
• Adapt the parameters of the inserted section. All of the values are not
available in all of the freeze-drying phases.
• Insert and edit the next section.
NOTE
During the creation of a program, the order of the individual freeze-drying
phases must be maintained. This means that it is not possible to insert a
freezing section after a main drying section.
“Program” buttons:
1
"Program"
2 "Program name"
3 "Show diagram"
4 "Insert section"
5 "Delete section"
6 Button for calling up
more functions and
set values
7 "Save"

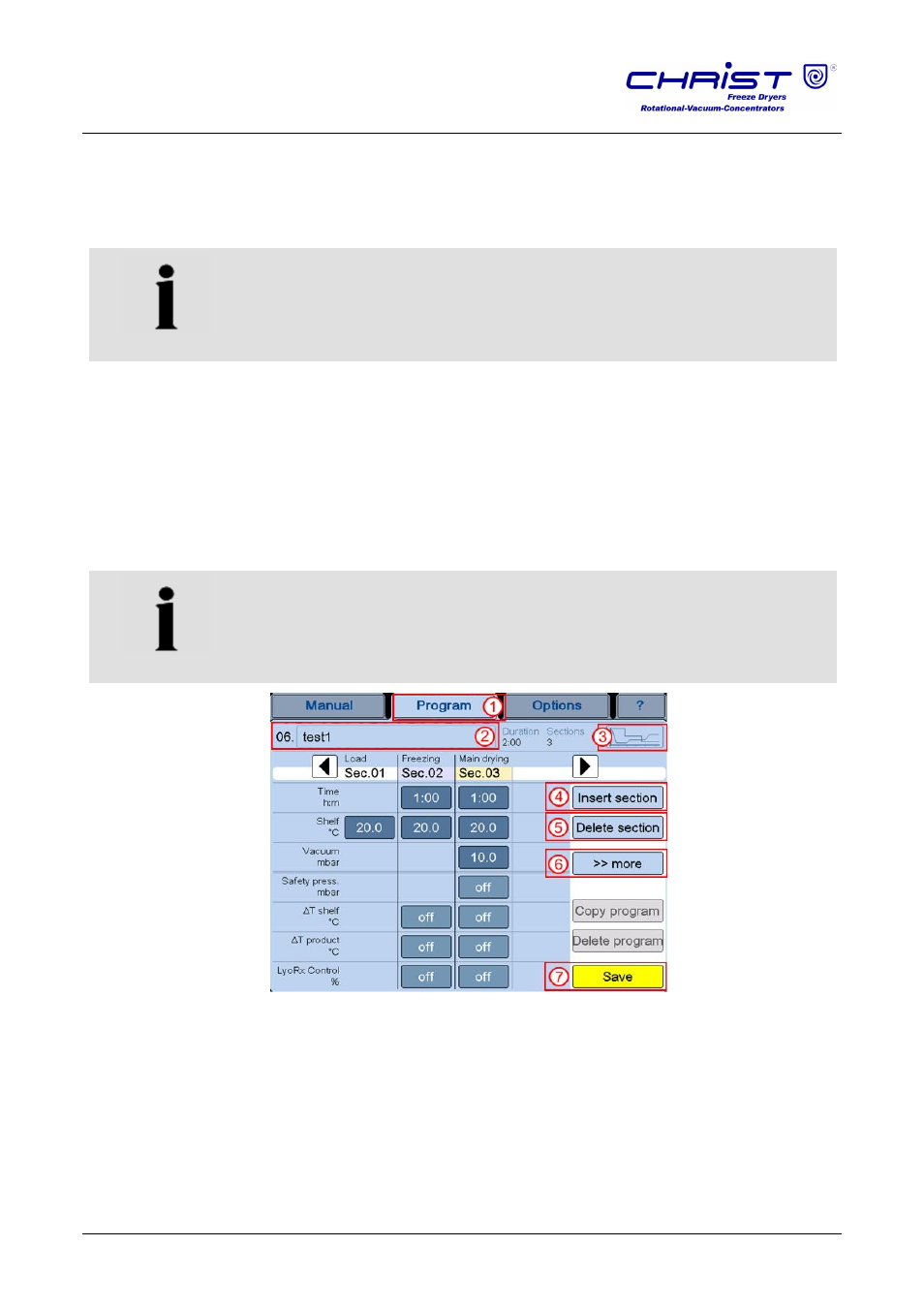

Fig. 64: Editing a blank program template
• The button “Delete section” (5) can be used to delete sections.
• The button ">>more" (6) can be used to enter more functions and set
values in a program-related manner, depending on the type of freeze-
dryer (see the sections below).
• Proceed in this manner in order to create an entire program according
to your specific needs.
• Pressing the button “Diagram” (3) displays the program in the form of a
diagram.
