Freeze-dryer EPSILON 1-4 LSCplus
Freeze-dryer EPSILON 2-4 LSCplus
2 Layout and mode of operation
Version 04/2014, Rev. 1.4 of 09/12/2014 • sb
13
Translation of the original operating manual
4
Connections for the
product sensors and a
LyoRX sensor
5 Shelf
6 Ice condenser
7 Defrosting water
collecting tray

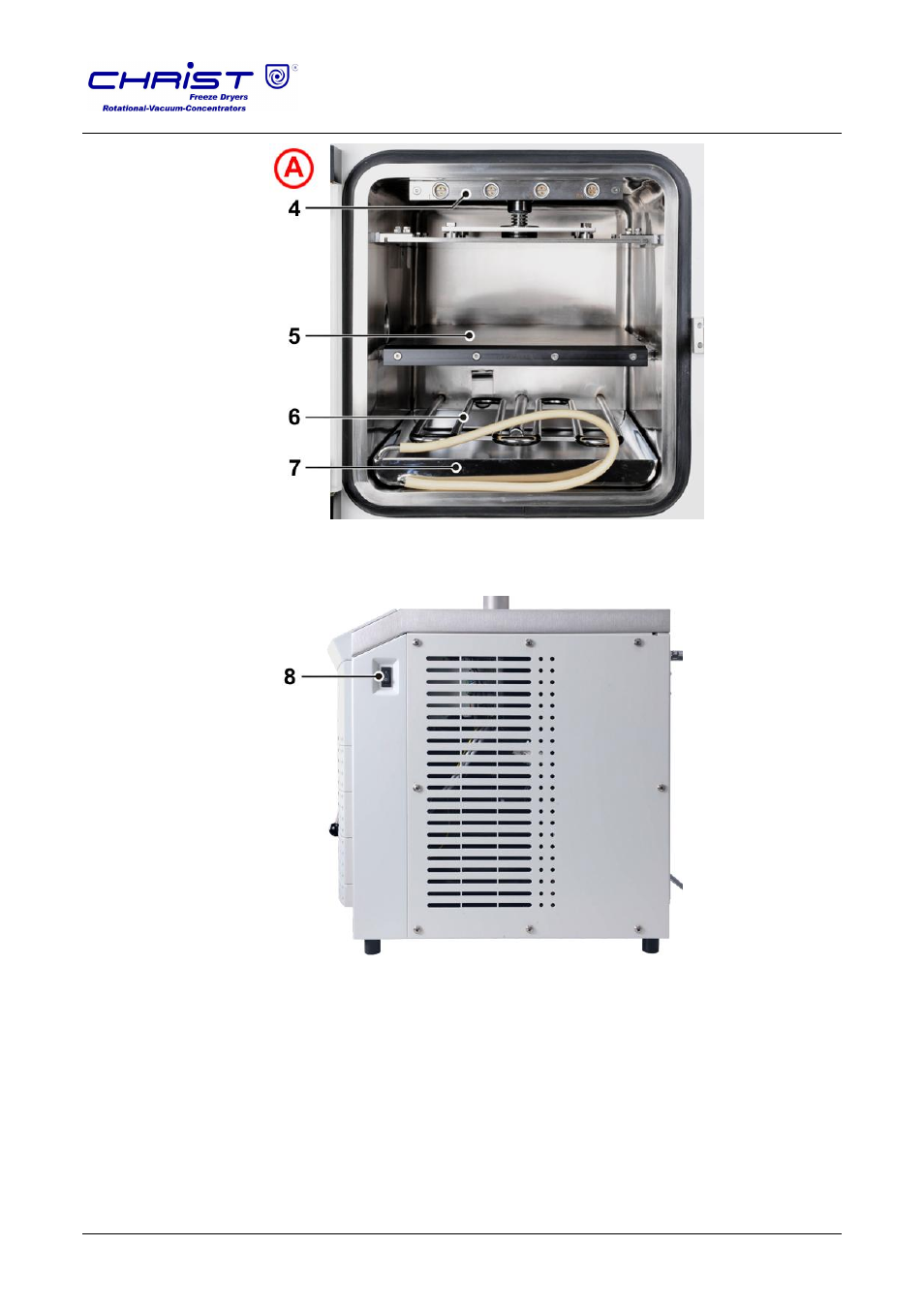

Fig. 2: Detailed view A – drying chamber
8
Mains switch
Fig. 3: Right side of the freeze-dryer
