Fig. 62: The warm-up phase of the vacuum pump is shifted to the freezing phase prior to the
first drying section
Pos: 143 /01 0 Univ ersal mod ule/Seit enwec hsel @ 0\m od_ 120 211 624 4312 _0. docx @ 10 5 @ @ 1 Pos: 144 /20 0 Ch rist/3 60 G T-BA L abo r-Pilot (STANDARDMODU LE)/0 60 Bet rieb/ LSCplus/ 060 -00 50- 003 2-0 011 Prog ra mm erstell en Epsilo n @ 25\ mod _14 0498 399 771 8_6 8.do cx @ 1 839 70 @ 4 @ 1
6.5.3.1 Creating a program
To create a new program:
• Press the button "New program" in the main window "Program". The
dialog box that is displayed offers various different program templates.
The scroll bar on the right-hand side can be used to scroll through the
list.
1 Button for creating a
blank program
2 Scroll bar for
selecting a program
template

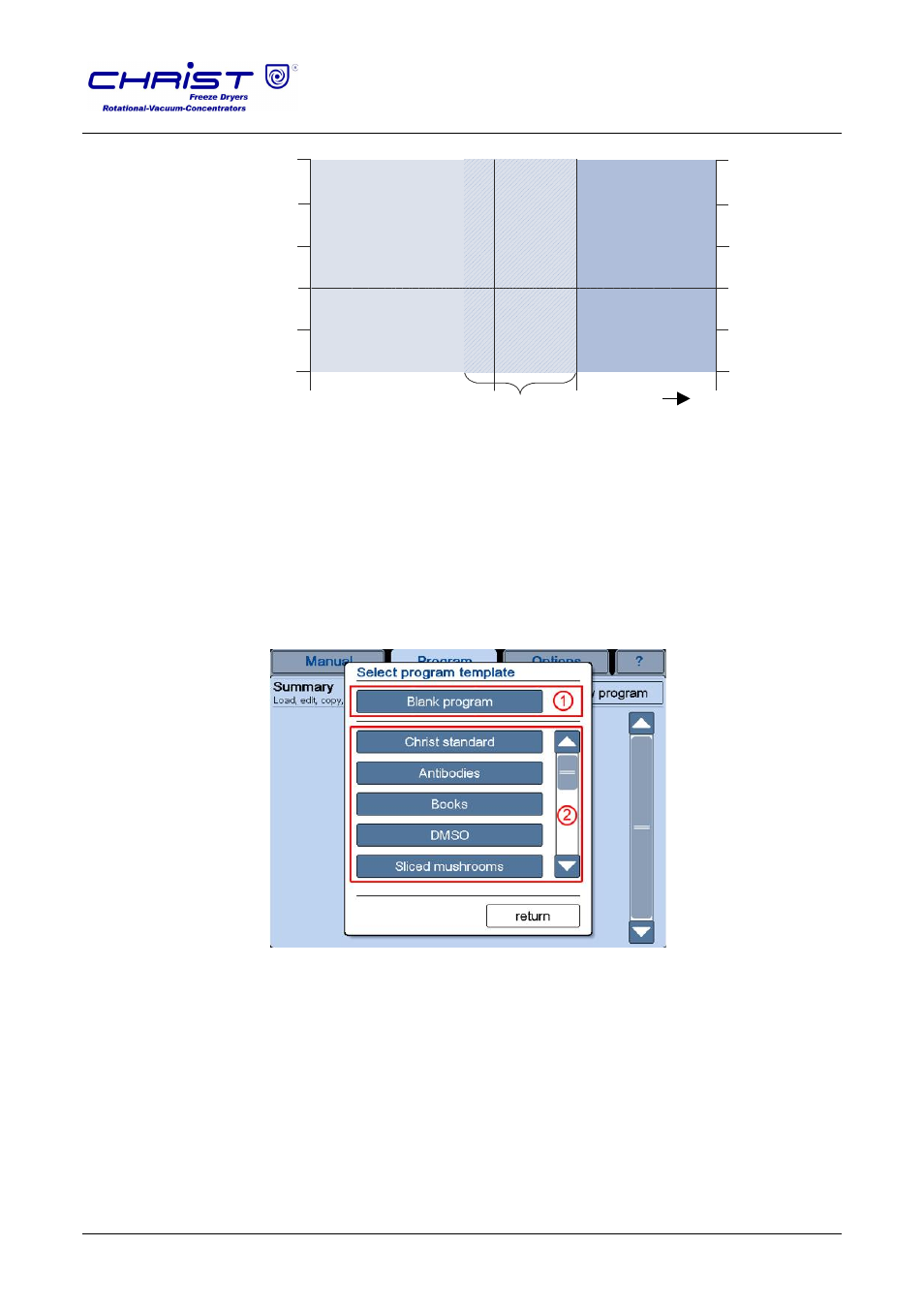

Fig. 63: Dialog box "Select program template"
T/°C
t/h
100
10
1
0.1
0.01
0.001
+30
+20
+10
0
-10
-20
Pressure/mbar
Section
“freezing”
First
section
“drying”
Warm-up phase
of the vacuum pump
Last
section
“freezing”
