Delta 1-24 LSC&
Delta 2-24 LSC&
11 Appendix
98
Version 04/2013, Rev. 1.2 of 20/02/2014 • sb
Translation of the original operating manual

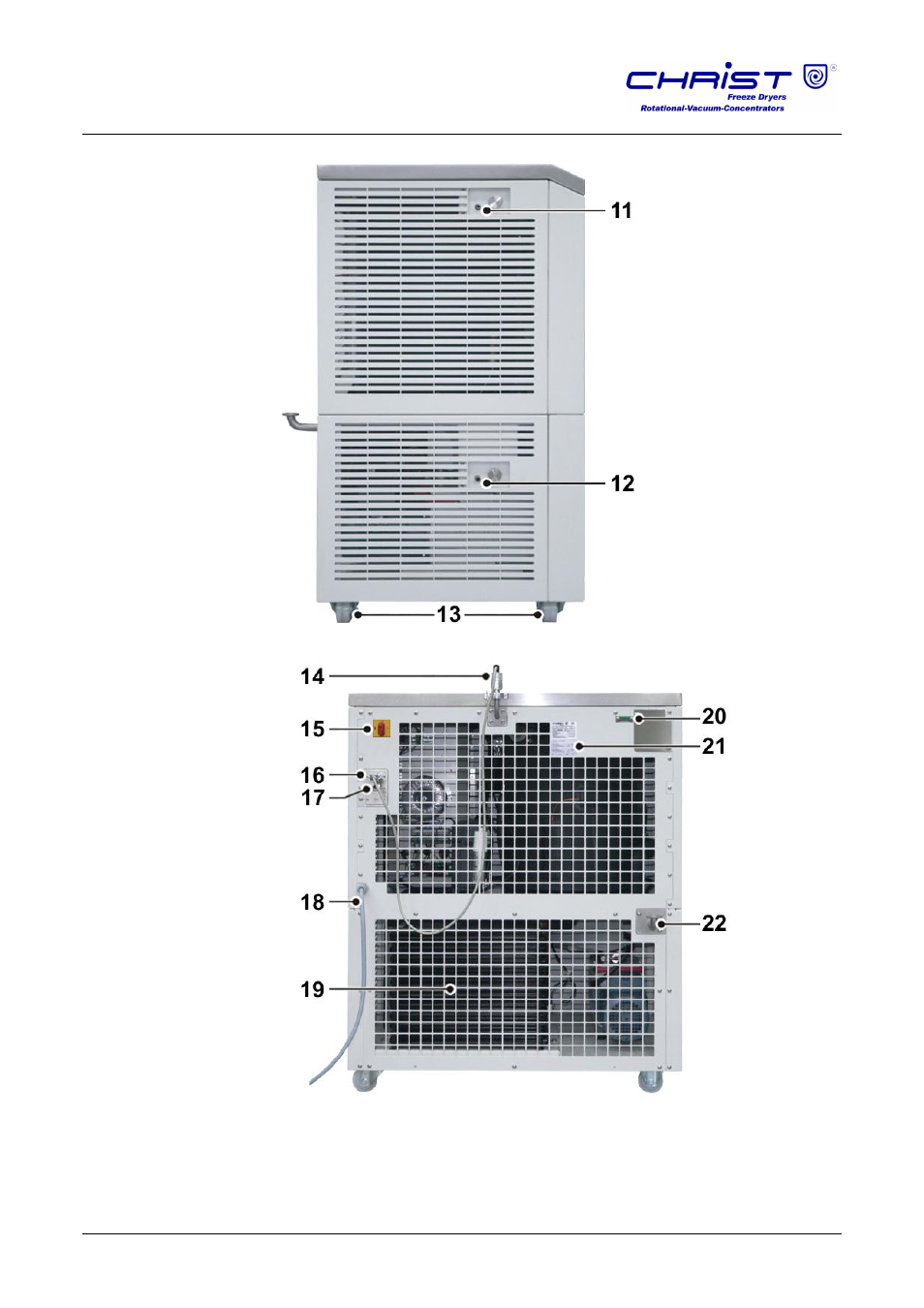

11 Aeration valve
12 Media drain valve
13 Fixed castors
Fig. 78: Left side of the
freeze-dryer
14 Vacuum sensor
15 Mains voltage
16 Electrical connection of
the vacuum sensor
17 Serial interface
18 Mains cable
19 Heat exchanger of the
refrigeration unit
(behind the panel)
20 Option: Connection for
electrical lifting device
21 Name plate
22 Vacuum connection
Fig. 79: Rear side of the
freeze-dryer
