Delta 1-24 LSC&
Delta 2-24 LSC&
11 Appendix
Version 04/2013, Rev. 1.2 of 20/02/2014 • sb
97
Translation of the original operating manual

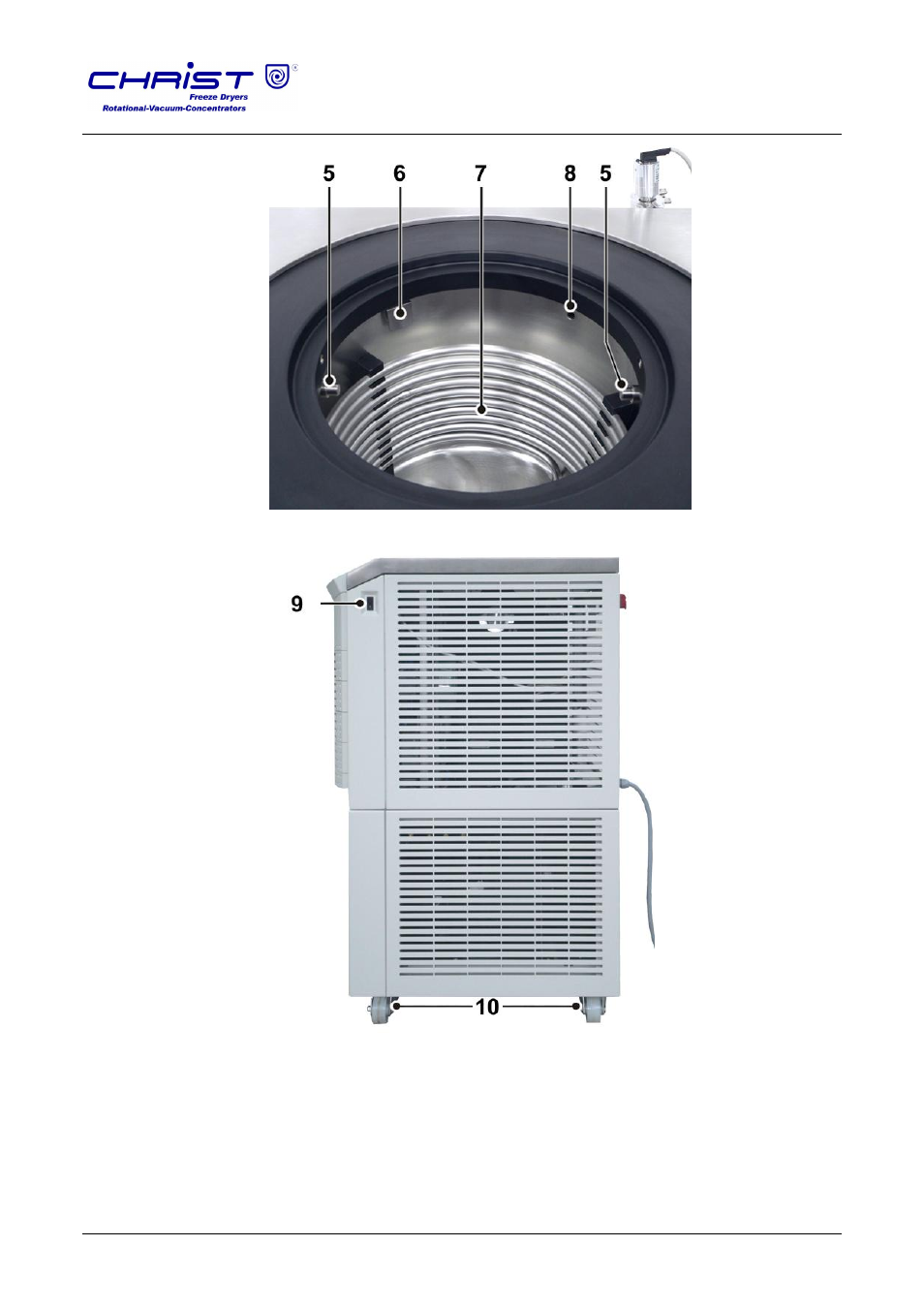

5
Contact bolt
6 Pipe connection of the
vacuum pump (behind
the cover plate)
7 Ice condenser
8 Vacuum sensor
Fig. 76:
Ice condenser chamber
9
Control system on/off
10 Steerable castors
Fig. 77: Right side of the
freeze-dryer
