Delta 1-24 LSC&
Delta 2-24 LSC&
6 Operation
42
Version 04/2013, Rev. 1.2 of 20/02/2014 • sb
Translation of the original operating manual
Actual values of the current process (4)
This area shows the current process data. The fields can be configured as
desired:
• Select the button of the field that you would like to reconfigure. A dialog
box opens:

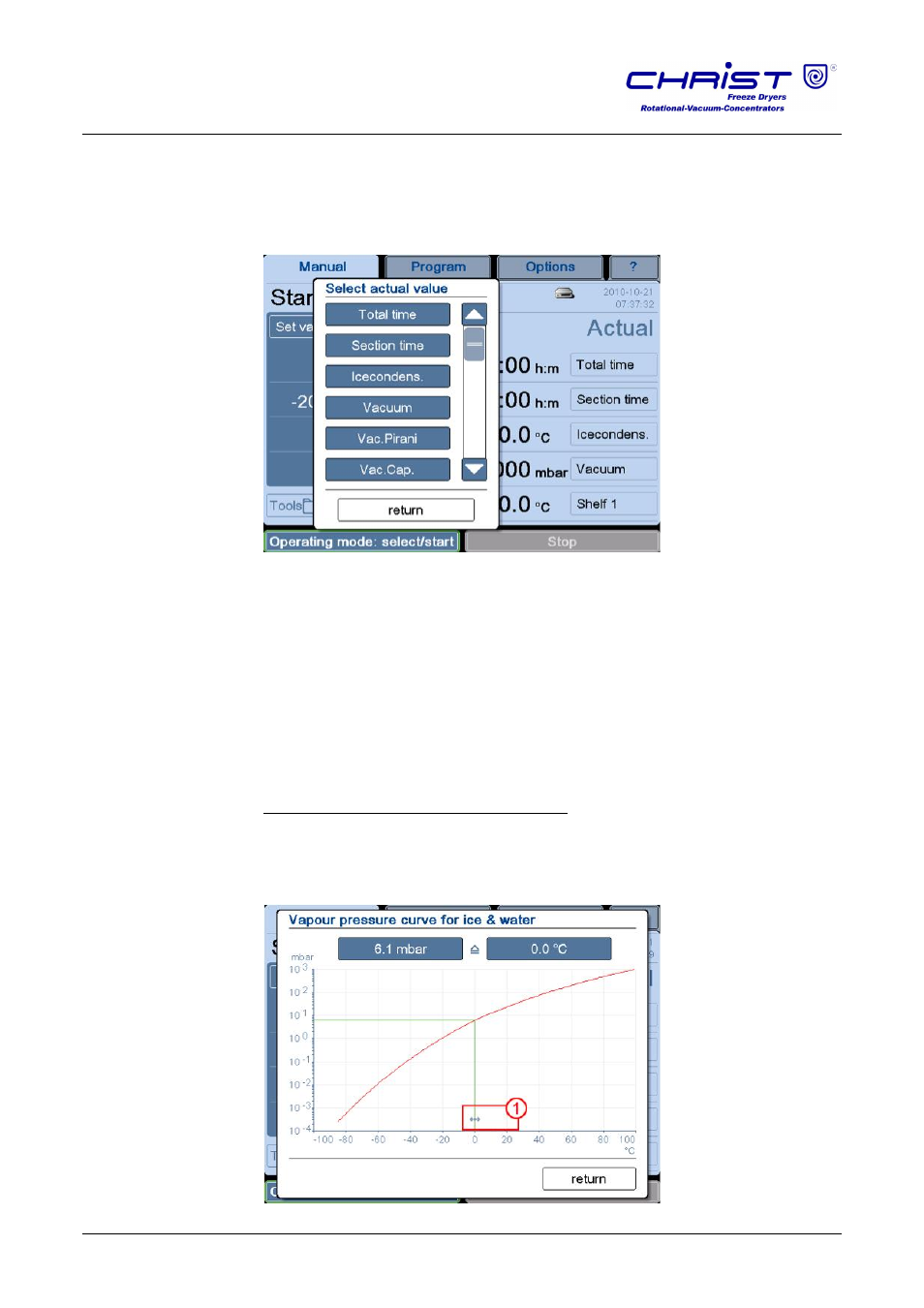

Fig. 22: Dialog box "Select actual value"
• Select the desired configuration or quit the dialog box by pressing the
"return" button.
In this way, it is possible to configure a personalised overview of the actual
values.
Dialog box "Tools" (5)
This dialog box is used to call up various aids and resources.
Vapour pressure curve for ice and water
A diagram shows the relationship between the pressure and sample
temperature. The pressure and temperature values can be changed by
pressing the buttons or by moving the arrows (see figure, item 1). The other
value will be adapted automatically.
Fig. 23: Dialog box “Vapour pressure curve for ice and water”
