Delta 1-24 LSC&
Delta 2-24 LSC&
5 Set-up and connection
Version 04/2013, Rev. 1.2 of 20/02/2014 • sb
35
Translation of the original operating manual
1
Vacuum sensor
2 Connection socket

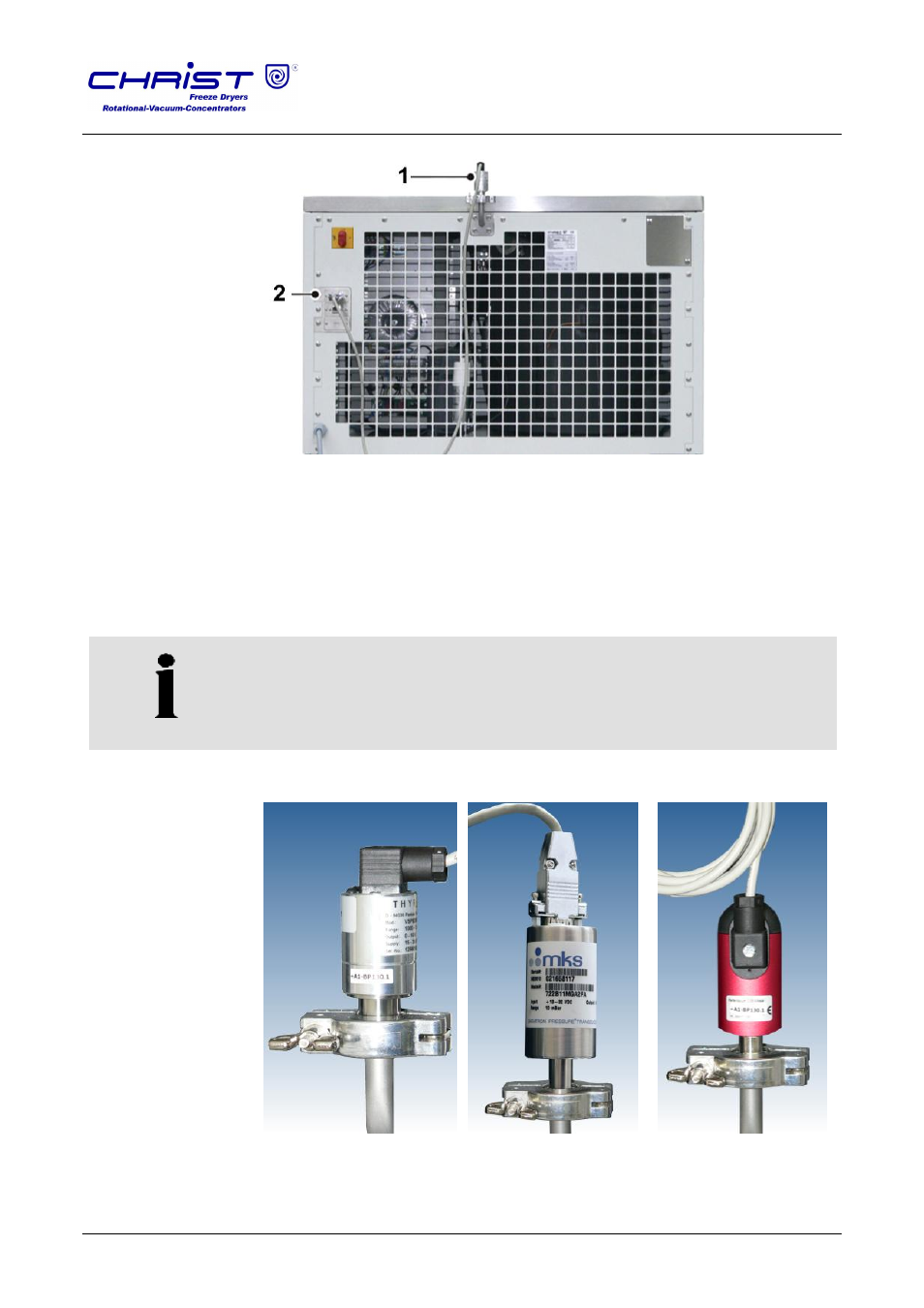

Fig. 15: Position of the vacuum sensor and the connection socket
• Switch the unit off by actuating the mains power switch.
• Take the vacuum sensor out of its original packaging and fasten it to the
connector with a clamping ring (DIN16KF) and a centring ring (included
in the scope of supply).
• Plug the connector to the connection socket and hand-tighten the
screws on the connector.
NOTE
It is absolutely essential to comply with the manufacturer’s instructions in
the separate operating manual of the vacuum sensor!
Thyracont VSP62/63 MKS 722B Pfeiffer TPR 280/281
Fig. 16: Installed vacuum sensors of different manufacturers
