2 Layout and mode of operation
14
Version 04/2013, Rev. 1.2 of 20/02/2014 • sb
Translation of the original operating manual
11 Aeration valve
12 Media drain valve
13 Fixed castors

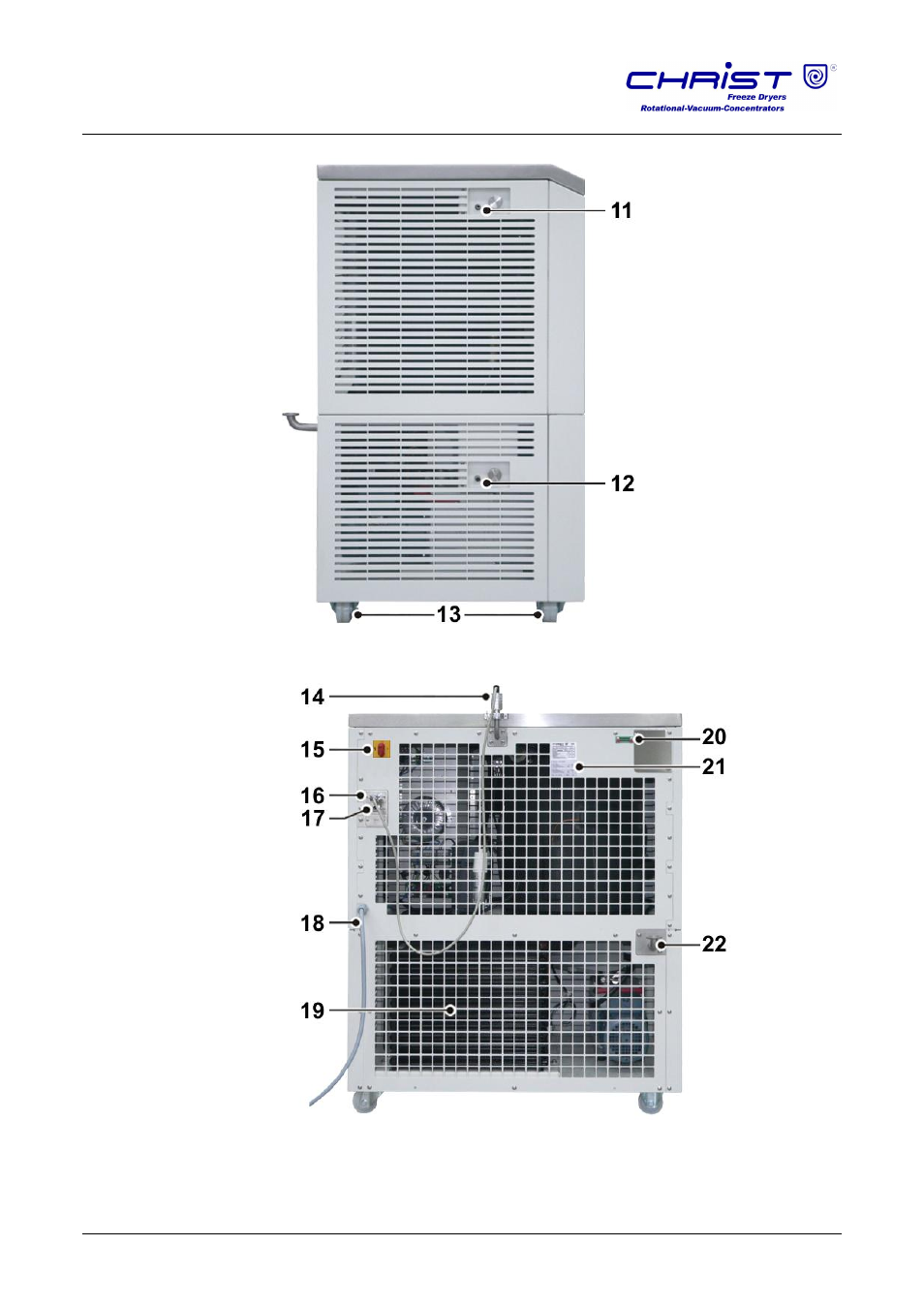

Fig. 5: Left side of the
freeze-dryer
14 Vacuum sensor
15 Mains voltage (Main
switch)
16 Electrical connection of
the vacuum sensor
17 Serial interface
18 Mains cable
19 Heat exchanger of the
refrigeration unit
(behind the panel)
20 Option: Connection for
electrical lifting device
21 Name plate (see
chapter 2.1.2 - "Name
plate")
22 Vacuum connection
