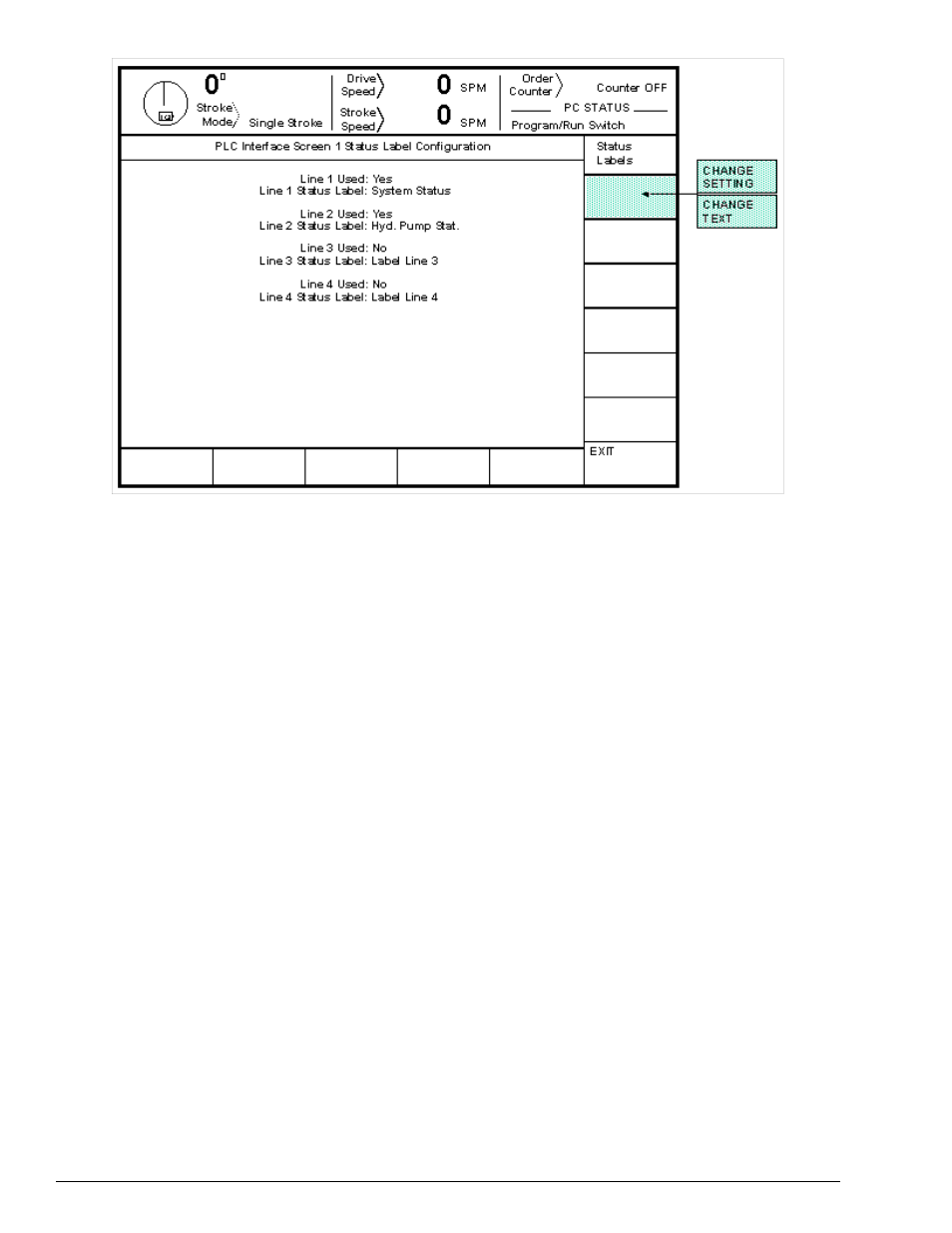

Figure 3.7: Example Status Label Configuration Screen
The four status lines can be individually enabled or disabled on a line by line basis. If “Line X Used” is
“Yes” then the status line will be shown on the PLC operation screen (see “e” on Figure 4.1 to see what
this configuration shown in Figure 3.6 would look like on the operation screen)
Each status line label can consist of up to 15 characters. Notice also, that Line 1 and Line 3 could be
used instead of Line 1 and Line 2 to provide a space between status lines if desired.
