SERVICE MANUAL
ELECTRICAL SYSTEM
46
909 6577 000(1)2006-02

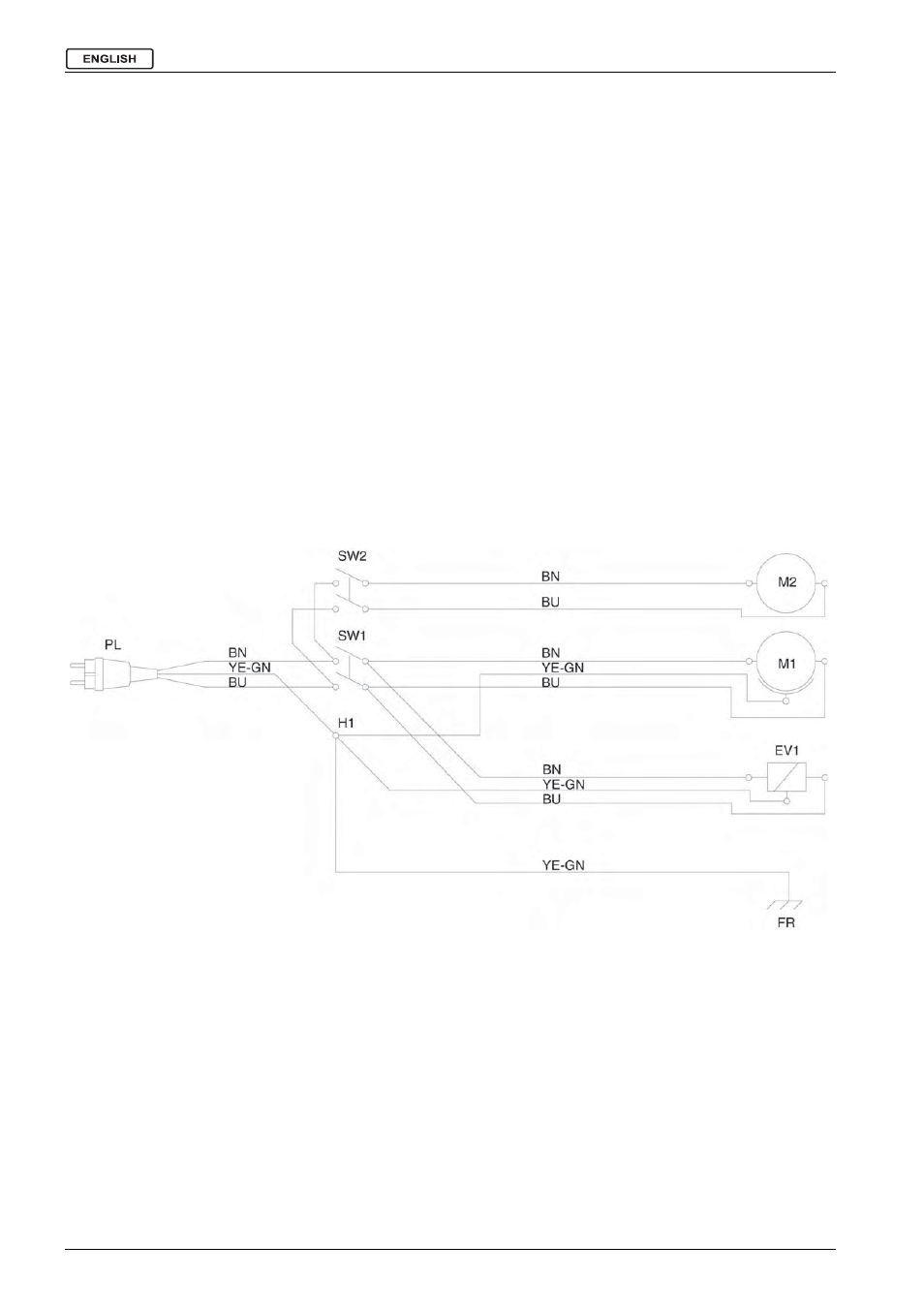

WIRING DIAGRAM [RAZOR E 17]
Key:
EV1:
Solenoid valve
FR:
Frame
M1:
Brush/pad motor
M2:
Vacuum system motor
PL:
Plug
SW1: Brush/pad switch
SW2: Vacuum switch
Color code
BK
Black
BU
Blue
BN
Brown
GN
Green
GY
Grey
OG
Orange
PK
Pink
RD
Red
VT
Violet
WH
White
YE
Yellow
S301395
