RECOVERY WATER SYSTEM
909 6577 000(1)2006-02 27
VACUUM SYSTEM MOTOR DISASSEMBLY/ASSEMBLY
[RAZOR SV 17 - RAZOR E 17]
1. Check that the switches (5 and 6) are turned to “0”.
2. If there is recovery water in the tank (43), drain it through the hose (22).
3. Disconnect the vacuum hose (29) from the squeegee (17).
4. Open the cover (12).

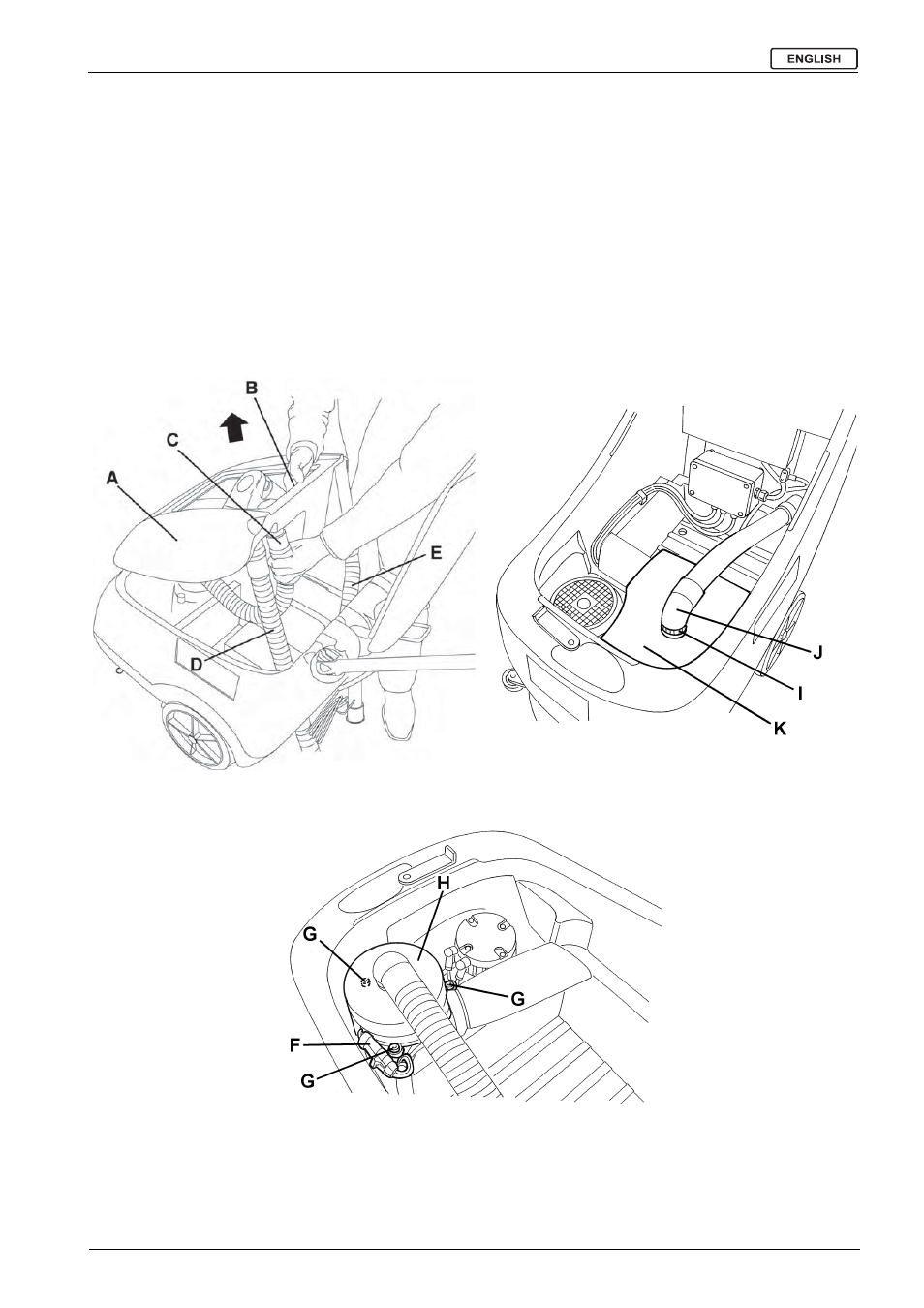

5. Grasp the recovery water tank (A) in the area (B) and lift it, as shown in the figure, then disconnect the vacuum hose (C)
from the tank and remove the tank (A) together with the hoses (D) and (E).
6. (RAZOR E 17) Loosen the clamp (I) and disconnect the hoses (J), then remove the waterproof cover (K).
7. Disconnect the vacuum system motor electrical connector (F).
8. Remove the vacuum system motor fastening screws (G).
9. Remove the vacuum system motor (H).
10. Reassemble in the reverse order of disassembly.
S301369 S301374
S301375
