SERVICE MANUAL
OTHER SYSTEMS
30
909 6577 000(1)2006-02
OTHER SYSTEMS
MACHINE SPEED ADJUSTMENT
[RAZOR SV 17 - RAZOR E 17]
1.
Check that the switches (5 and 6) are turned to “0”.
2.
If there is recovery water in the tank (43), drain it through the hose (22).
3.
Disconnect the vacuum hose (29) from the squeegee (17).
4.
Open the cover (12).
5.

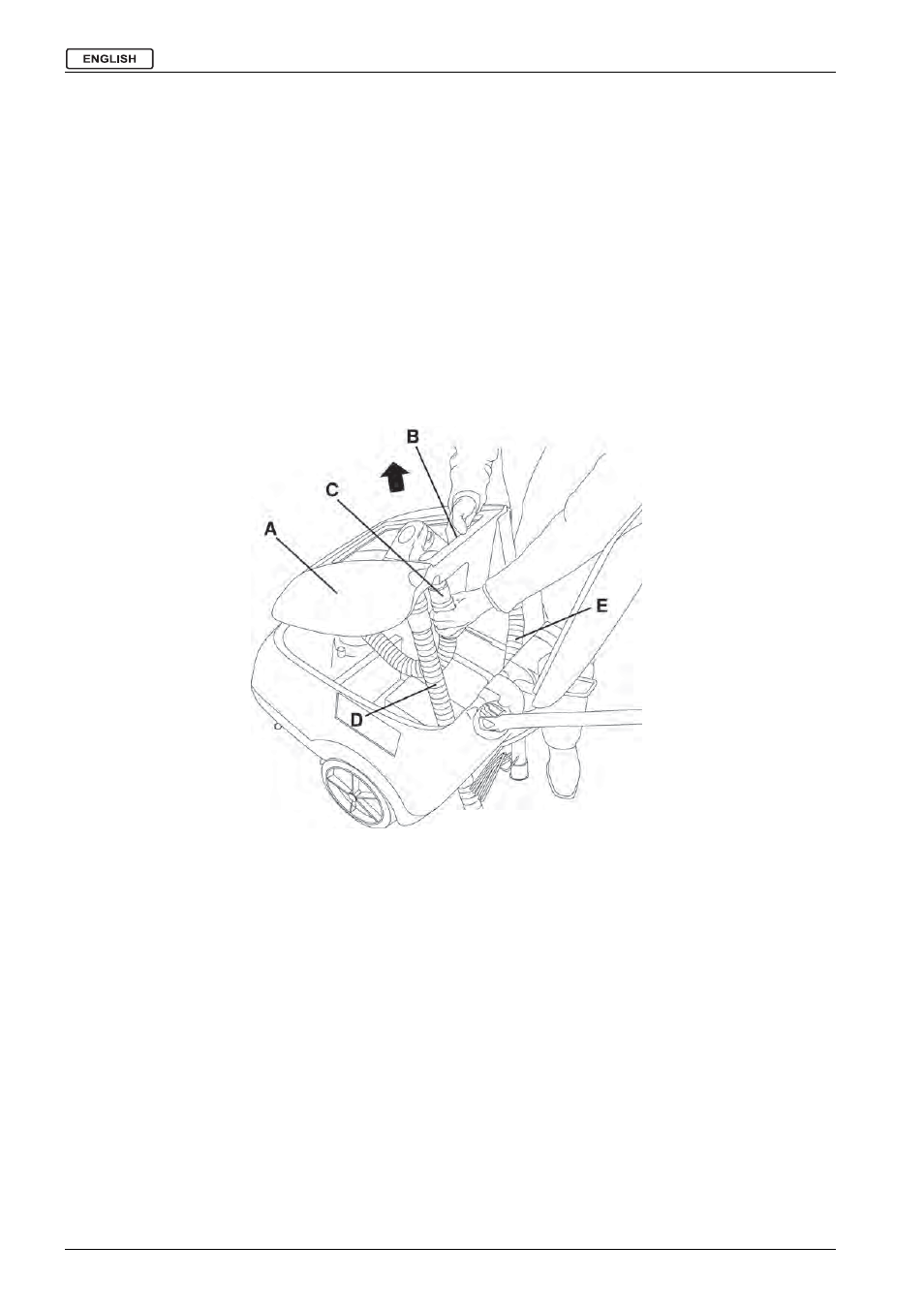

Grasp the recovery water tank (A) in the area (B) and lift it, as shown in the figure, then disconnect the vacuum hose (C)
from the tank and remove the tank (A) together with the hoses (D) and (E).
6.
Adjust the machine speed by means of the screw (53), according to the following procedure:
–
Loosen the screw (57) on the right side of the machine, by turning it counter-clockwise.
–
Turn the adjusting screw (53) counter-clockwise to increase the machine speed.
–
Turn the adjusting screw (53) clockwise to decrease the machine speed.
–
After adjusting, tighten the screw (57).
7.
Carry out steps from 3 to 5 in the reverse order.
8.
With the machine ready to operate, carry out hands-on tests of the machine speed and, if other adjustments are
necessary, repeat steps 1 to 8.
S301369
