RECOVERY WATER SYSTEM
26
909 6577 000(1)2006-02
VACUUM SYSTEM MOTOR CARBON BRUSH CHECK AND REPLACEMENT
[RAZOR SV 17 - RAZOR E 17]
1.
Remove the vacuum system motor (see the procedure in the relevant paragraph).
2.

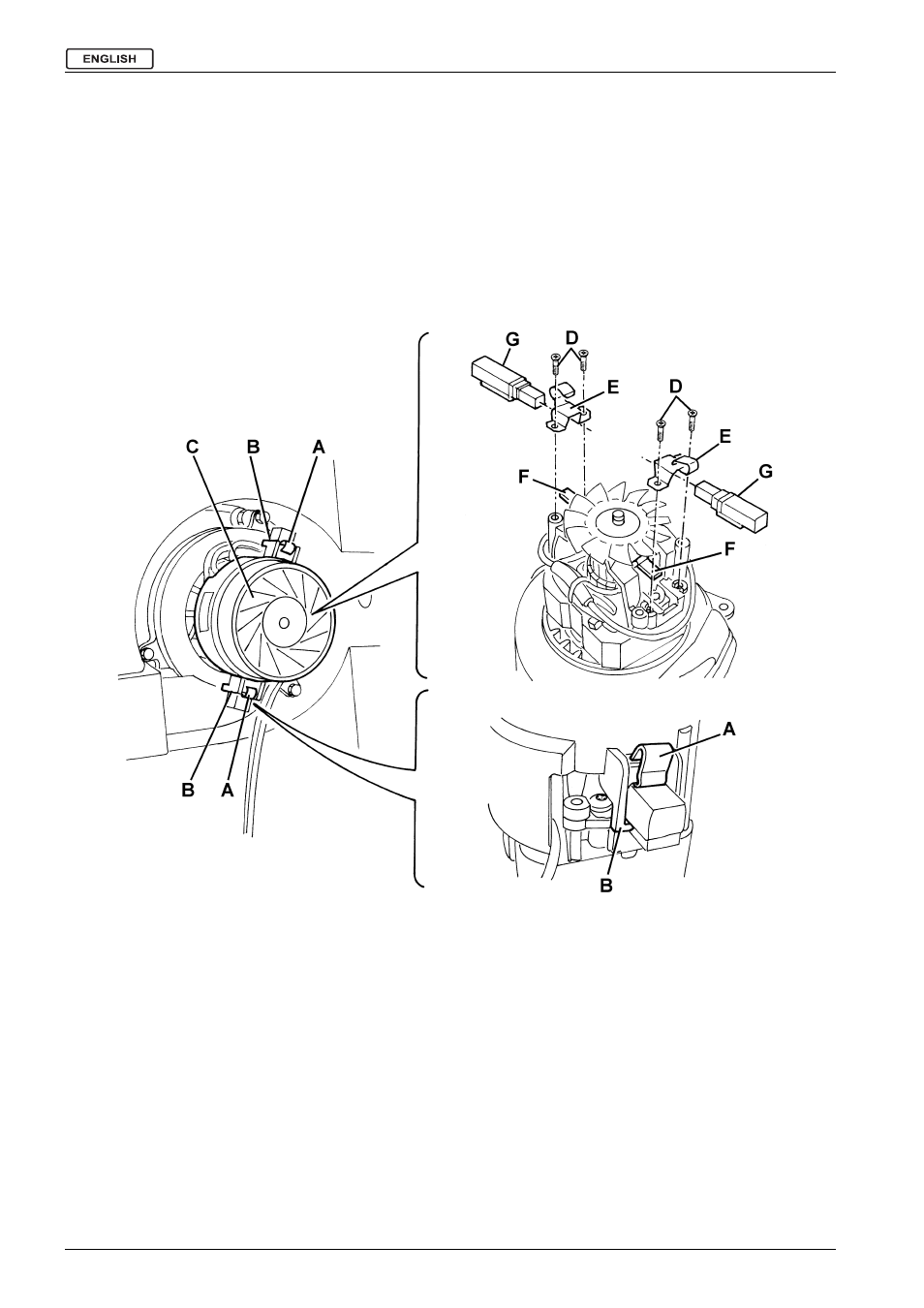

At the workbench, disengage the fasteners (A) and (B), then remove the cover (C) from the vacuum system motor.
3.
Remove the screws (D) and the fasteners (E).
4.
Disconnect the electrical connections (F) and remove the brushes (G).
5.
Check the carbon brushes for wear. Replace the carbon brushes when: the contact with the motor armature is insufficient,
the carbon brushes are worn, the carbon brush contact surface is not integral, the thrust spring is broken, etc.
6.
If necessary, replace the carbon brushes. Replace the carbon brushes as an assembly.
7.
Reassemble in the reverse order of disassembly.
