SERVICE MANUAL
ELECTRICAL SYSTEM
42
909 6577 000(1)2006-02

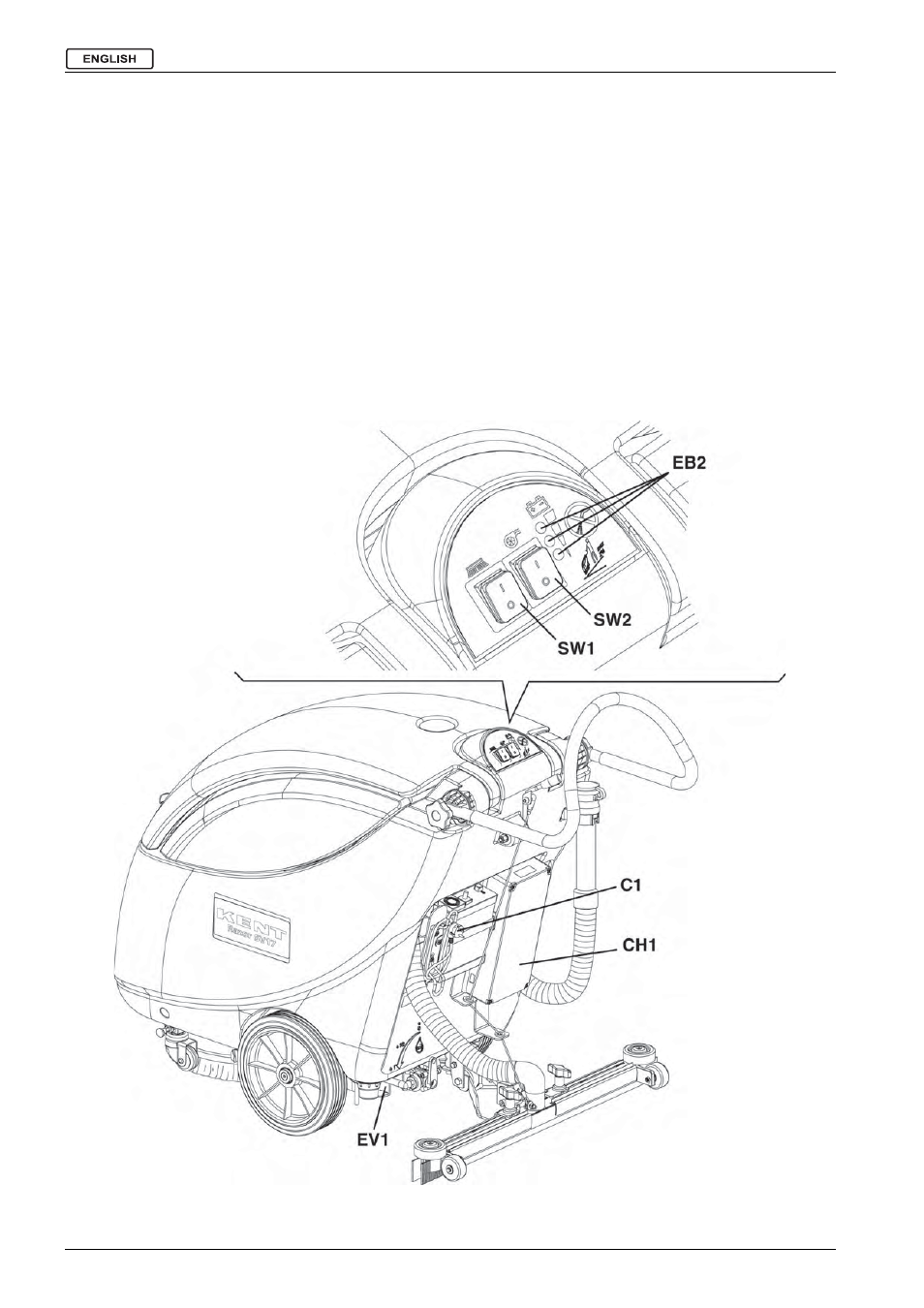

COMPONENT LOCATION [RAZOR SV 17]
CH1: Battery charger
C1:
Battery charger connector
EB1:
Electronic board (CF BA430)
EB2:
Electronic board led (CF BALED)
ES1:
Brush switch
ES2:
Vacuum switch
EV1:
Water solenoid valve
F1:
Brush fuse (40A)
F2:
Vacuum system fuse (30A)
F3:
Solenoid valve and electronic board fuse (5A)
IS1:
Negative insulator
M1:
Brush/pad motor
M2:
Vacuum system motor
SW1: Brush/pad switch
SW2: Vacuum switch
S301391
