SERVICE MANUAL
RECOVERY WATER SYSTEM
28 909 6577 000(1)2006-02
SQUEEGEE DISASSEMBLY/ASSEMBLY [RAZOR SV 17 - RAZOR E 17]
1. Check that the switches (5 and 6) are turned to “0”.
2. Lower the squeegee (17) by means of the lever (25).
3. Disconnect the vacuum hose (29) from the squeegee.
4. Loosen the handwheels (18) and remove the squeegee (17).
5. Reassemble in the reverse order of disassembly.

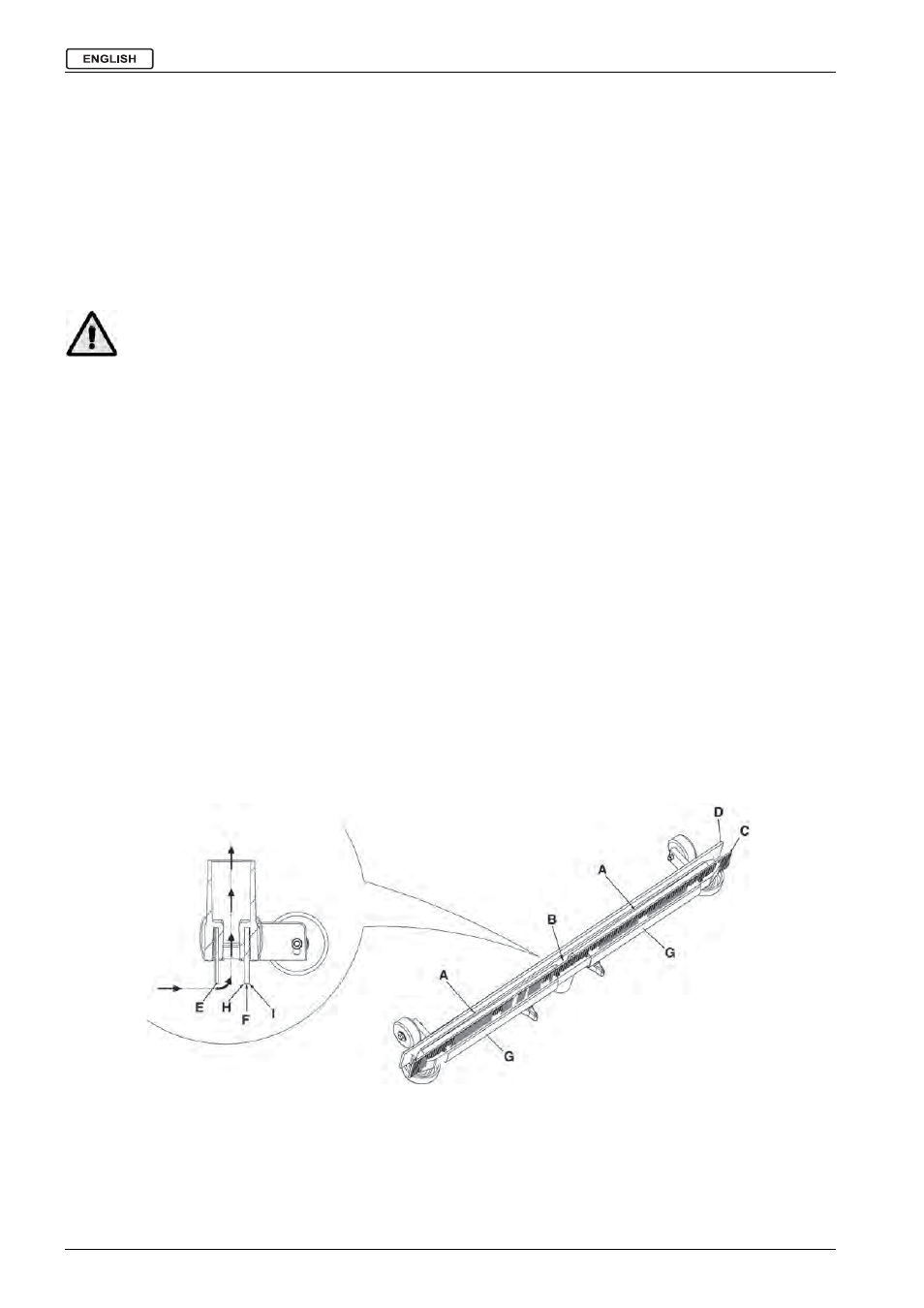

SQUEEGEE CLEANING/CHECK AND BLADE REPLACEMENT [RAZOR SV 17 - RAZOR E
17]
Preliminary procedures
1. Remove the squeegee.
Cleaning
2. Wash and clean the squeegee; in particular, clean the compartments (A) and the vacuum hole (B) from dirt and debris.
Check the front blade (C) and the rear blade (D) for integrity, cuts and tears; otherwise replace them.
Blade check and overturning/replacement
3. Check that the edges (E) of the front blade and the edges (F) of the rear blade lay down on the same level, along their
length; otherwise adjust their height according to the following procedure:
–
Remove the fixing springs (G) and adjust the front blade (C) and the rear blade (D). Reinstall the fixing springs on
the properly adjusted front and rear blades.
4. Check the front blade (C) and rear blade (D) for integrity, cuts and tears; otherwise replace them according to the
following procedure. Also check the front corner (H) of the rear blade for wear; if it is worn, overturn the blade to replace
the worn corner with the other one (I), provided that it is integral. If the other corner (I) is worn too, replace the blade
according to the following procedure:
–
Remove the fixing springs (G) and replace (or overturn) the rear blade (D). Reinstall the fixing springs on the properly
adjusted front and rear blades, according to the procedure shown in the previous step.
Reset
5. Reassemble the squeegee.
S301218
CAUTION!
It is advisable to use protective gloves when cleaning the squeegee because there may be cutting debris.
