SERVICE MANUAL
ELECTRICAL SYSTEM
909 6577 000(1)2006-02 37
Battery charging with (optional) battery charger installed on the machine
11. Connect the battery charger cable (27) to the electrical mains (the mains voltage and frequency must be compatible with
the battery charger values: see the battery charger Manual).
12. When the green warning light (34) stays on, the battery charging cycle is over.
13. When the battery charging is over, disconnect the battery charger cable (27) from the electrical mains and wind it round
its housing on the machine.
Reset
14. For lead (WET) batteries only:
–
Check for the correct level of electrolyte inside the batteries (50). If necessary, add distilled water through the caps.
– Close all the battery caps.
– If necessary, clean the upper surface of the batteries.

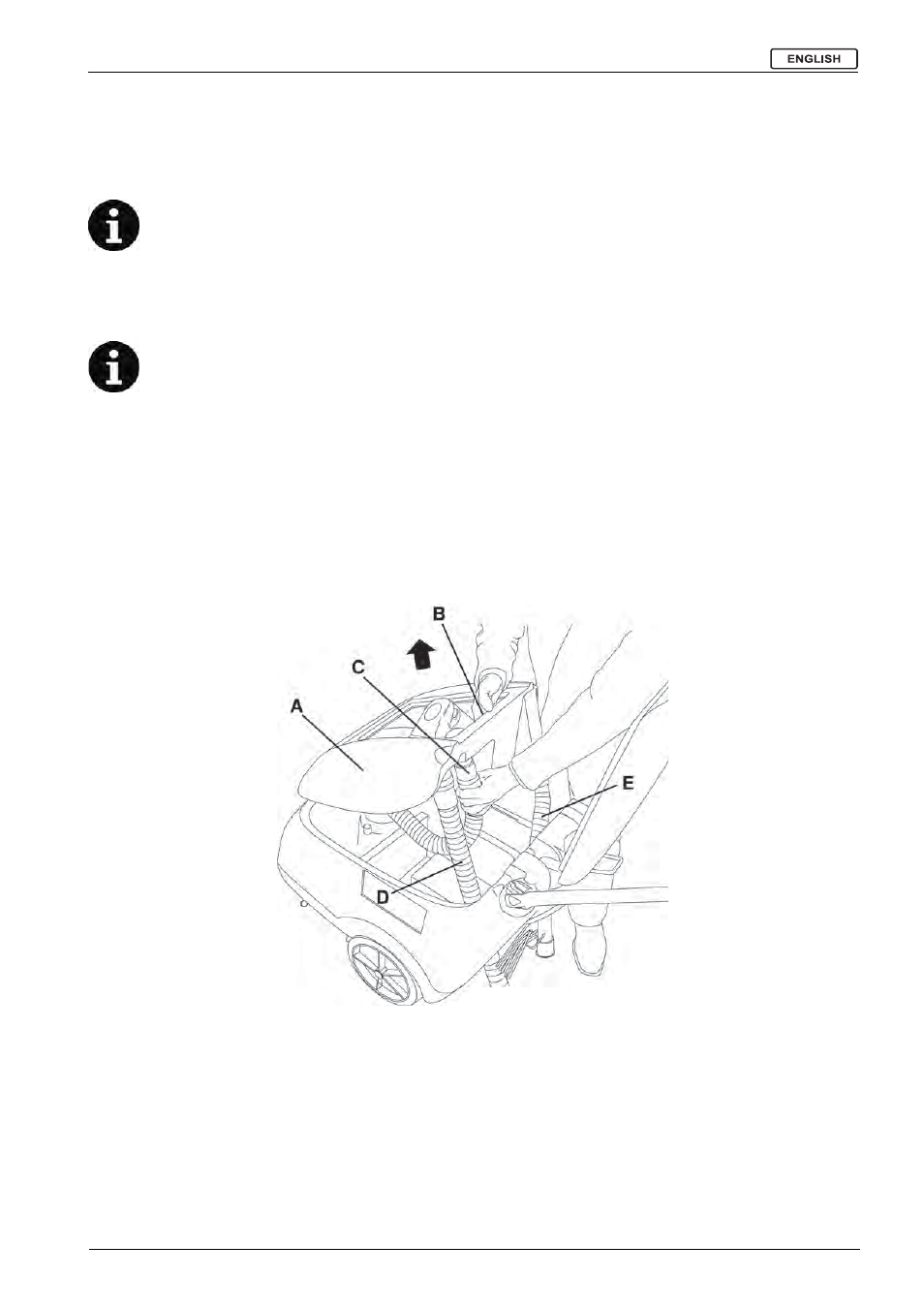

– Grasp the recovery water tank (A) in the area (B) and lay it on the machine as shown in the figure, then connect the
vacuum hose (C) to the tank, and bring it back to its original position.
– Connect the vacuum hose (29) to the squeegee (17).
– Close the cover (12).
15. Now the machine is ready to be used.
S301369
NOTE
When the battery charger is connected to the electrical mains, all machine functions are automatically cut
off.
The green warning light (34) flashes when the battery charger is charging the batteries.
NOTE
For further information about the battery charger operation (33), see the relevant Manual.
