SERVICE MANUAL
OTHER SYSTEMS
909 6577 000(1)2006-02
31
BRUSH/PAD-HOLDER DECK DISASSEMBLY/ASSEMBLY
[RAZOR SV 17]
Disassembly
1.
Remove the batteries.
2.

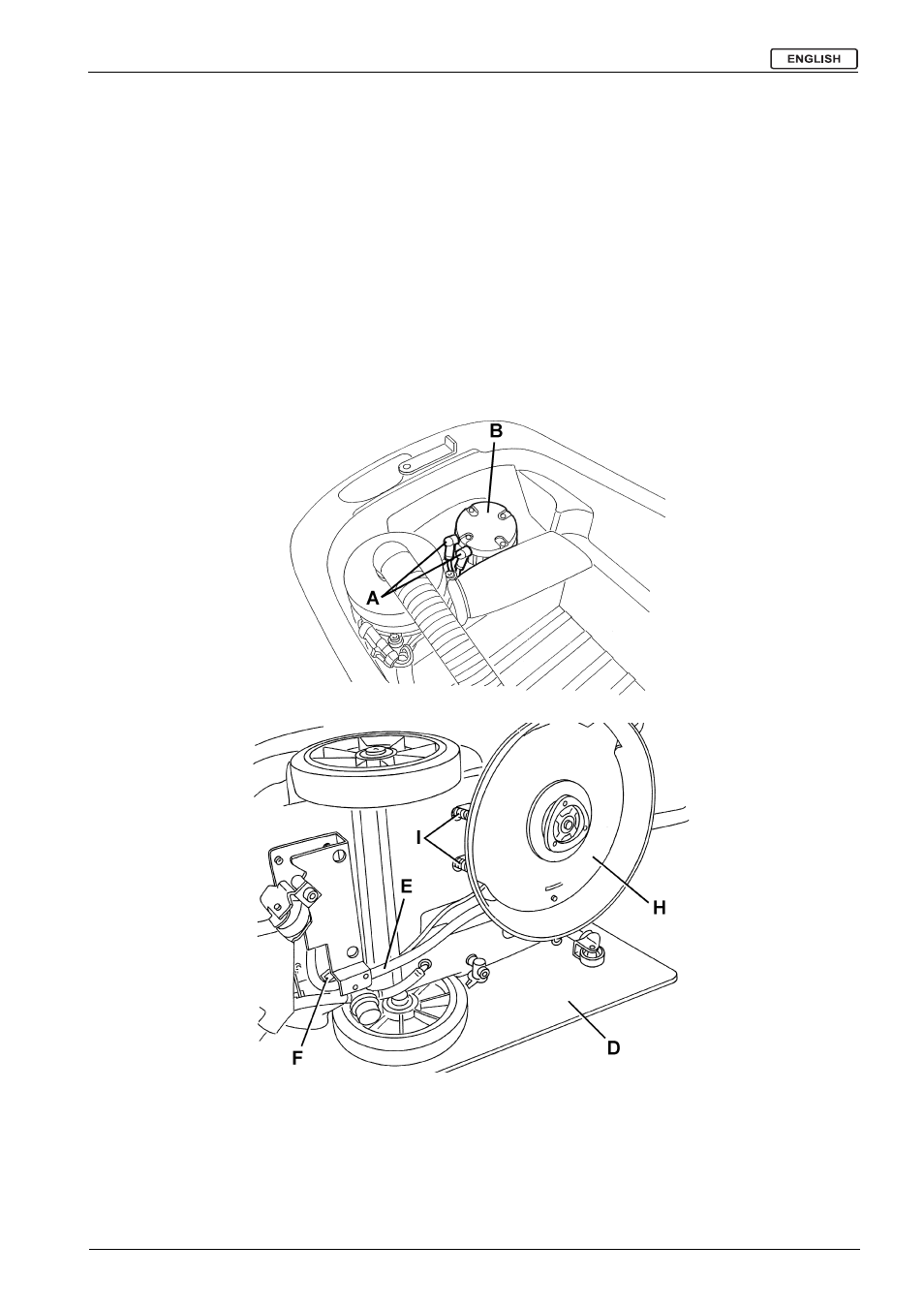

Remove the caps (A) and disconnect the electrical connections from the brush motor (B).
3.
Remove the left deck fastening screw (58).
4.
Use a protection (D) to avoid damaging the machine and tilt it carefully to lay its left side on the floor.
5.
Disconnect the solution hose (E) from the solenoid valve (F).
6.
Remove the right deck fastening screw (57).
7.
Remove the deck (H).
Assembly
8.
Reassemble in the reverse order of disassembly, and note these items:
–
When reassembling the deck (H), reinsert the deck fixing springs (I) correctly.
S301376
S301220
