SERVICE MANUAL
BRUSHING SYSTEM
20 909 6577 000(1)2006-02

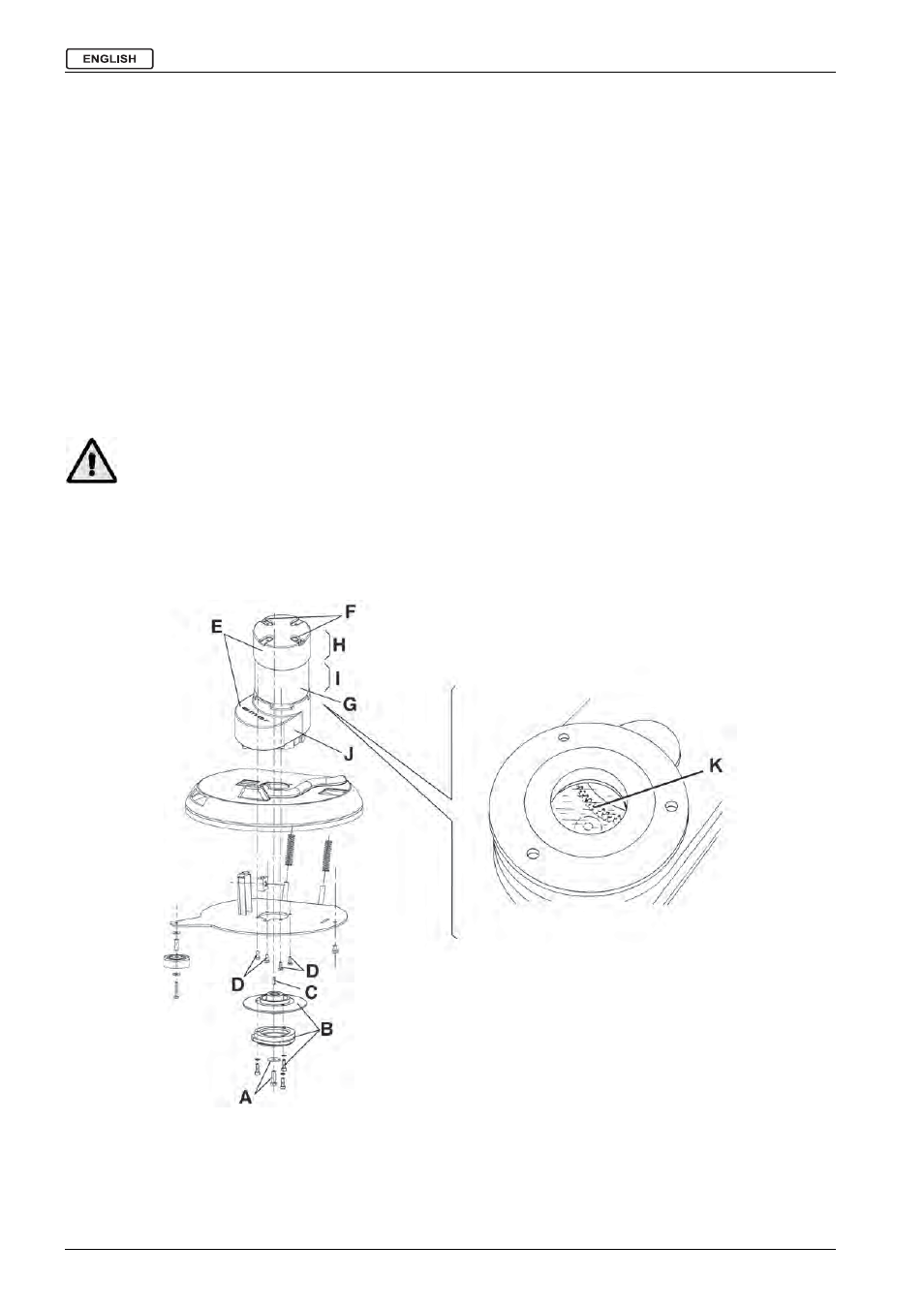

BRUSH MOTOR AND REDUCTION UNIT DISASSEMBLY/ASSEMBLY [RAZOR SV 17]
Motor/reduction unit disassembly/assembly
1. Remove the brush/pad-holder (54/55), according to the instructions in the Instructions for Use Manual.
2. Remove the brush/pad-holder deck.
3. At the workbench, remove the central screw (A).
4. Remove the polygonal support (B).
5. Recover the key (C).
6. Remove the screws (D).
7. Remove the brush motor (E).
8. Reassemble in the reverse order of disassembly.
Separating the motor from the reduction unit
9. Disassemble the motor/reduction unit as above indicated.
10. Remove the nuts (F) fixing the motor to the reduction unit.
11. Carefully lift and remove the motor (E) together with the pinion and bearing.
12. Recover the reduction unit and the oil (J).
13. Reassemble in the reverse order of disassembly, and note these items:
–
Before installing the new reduction unit, fill in with oil of the type and quantity indicated on the reduction unit data
plate (SAE W 80 - 90 oil). The oil in the tank must cover the gear (K).
– Remember to remove the adhesive tape, if applied at step 11.
S301213
CAUTION!
To prevent part (H) and part (I) from separating during the motor disassembly/assembly, it is advisable to
apply adhesive tape temporarily to keep the two parts together.
