Signal Output Combinations
Appendix
IND100077-152
Signal Output Combinations
Overview of tested signal outputs
The latest computers from Hatteland Display are capable of displaying 3 signals simultaneously via DVI-D, DVI-I or
RGB/VGA (via adapter) or through the DisplayPort (DP) (including DP to DVI adapter) connectors. Below, the list of
possible combinations the hardware support. All resolutions and frequencies are indicated as max. Everything lower
than max can be used, even as low as 640x480 (VGA) for all 3 signal outputs.

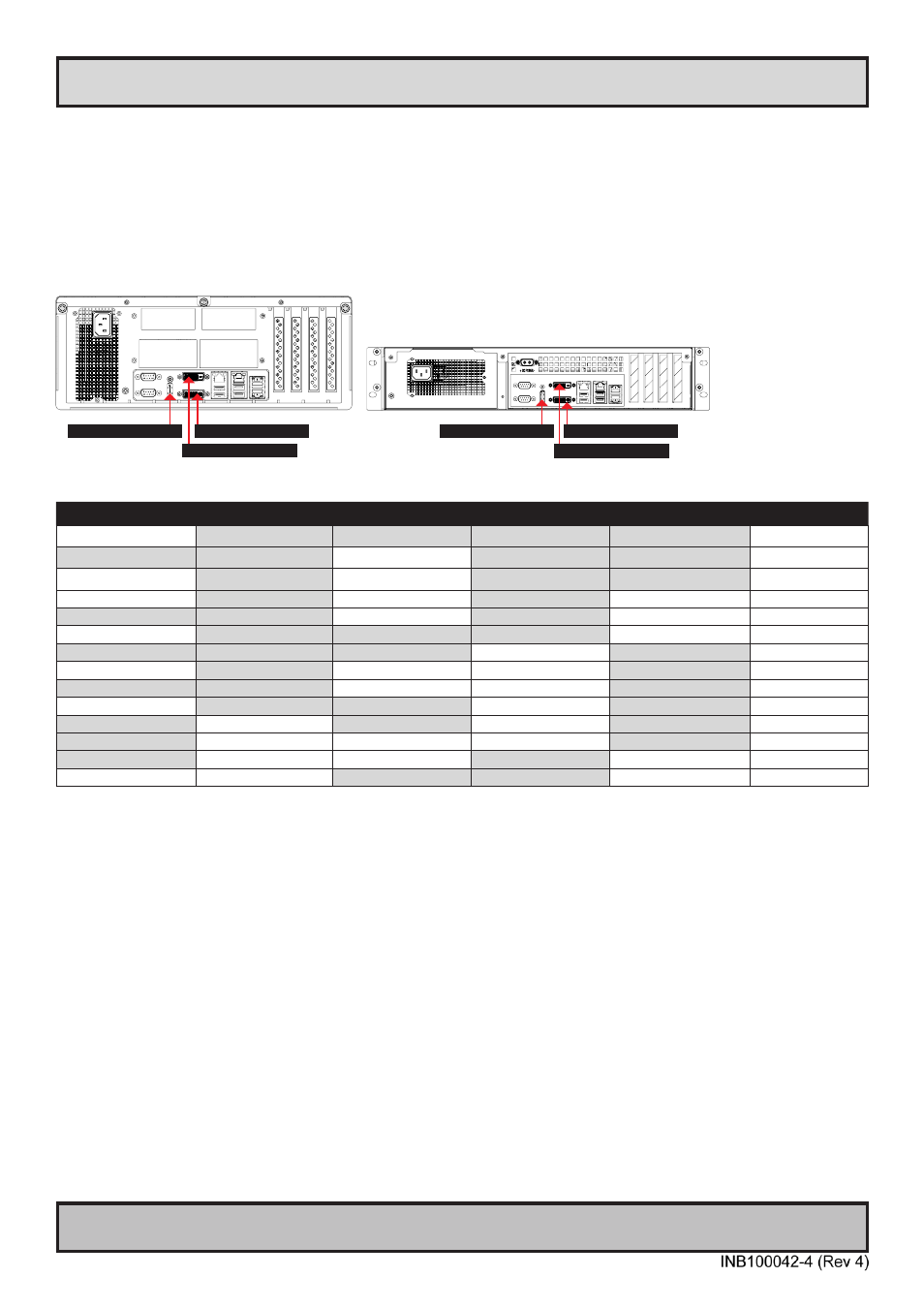

Example illustrations, indicating DVI and DP connectors:
DVI-D Output
DVI-I Output DP Output
DVI-D Output
DVI-I Output DP Output
DVI-I DVI-I to VGA DVI-D DP DP to DVI Outputs
1920 x 1200 @ 60Hz 1
1920 x 1200 @ 60Hz 1
1920 x 1200 @ 60Hz 1920 x 1200 @ 60Hz 2
1920 x 1200 @ 60Hz 1920 x 1200 @ 60Hz 1920 x 1200 @ 60Hz 3
1920 x 1200 @ 60Hz 1920 x 1200 @ 60Hz 2
1920 x 1200 @ 60Hz 1920 x 1200 @ 60Hz 2
2560 x 1600 @ 60Hz 1
1920 x 1200 @ 60Hz 1920 x 1200 @ 60Hz 2560 x 1600 @ 60Hz 3
1920 x 1200 @ 60Hz 2560 x 1600 @ 60Hz 2
1920 x 1200 @ 60Hz 2560 x 1600 @ 60Hz 2
1920 x 1200 @ 60Hz 2560 x 1600 @ 60Hz 2
1920 x 1200 @ 60Hz 1920 x 1200 @ 60Hz 2560 x 1600 @ 60Hz 3
1920 x 1200 @ 60Hz 1920 x 1200 @ 60Hz 1920 x 1200 @ 60Hz 3
1920 x 1200 @ 60Hz 1920 x 1200 @ 60Hz 1920 x 1200 @ 60Hz 3
