General Installation Recommendations
Installation

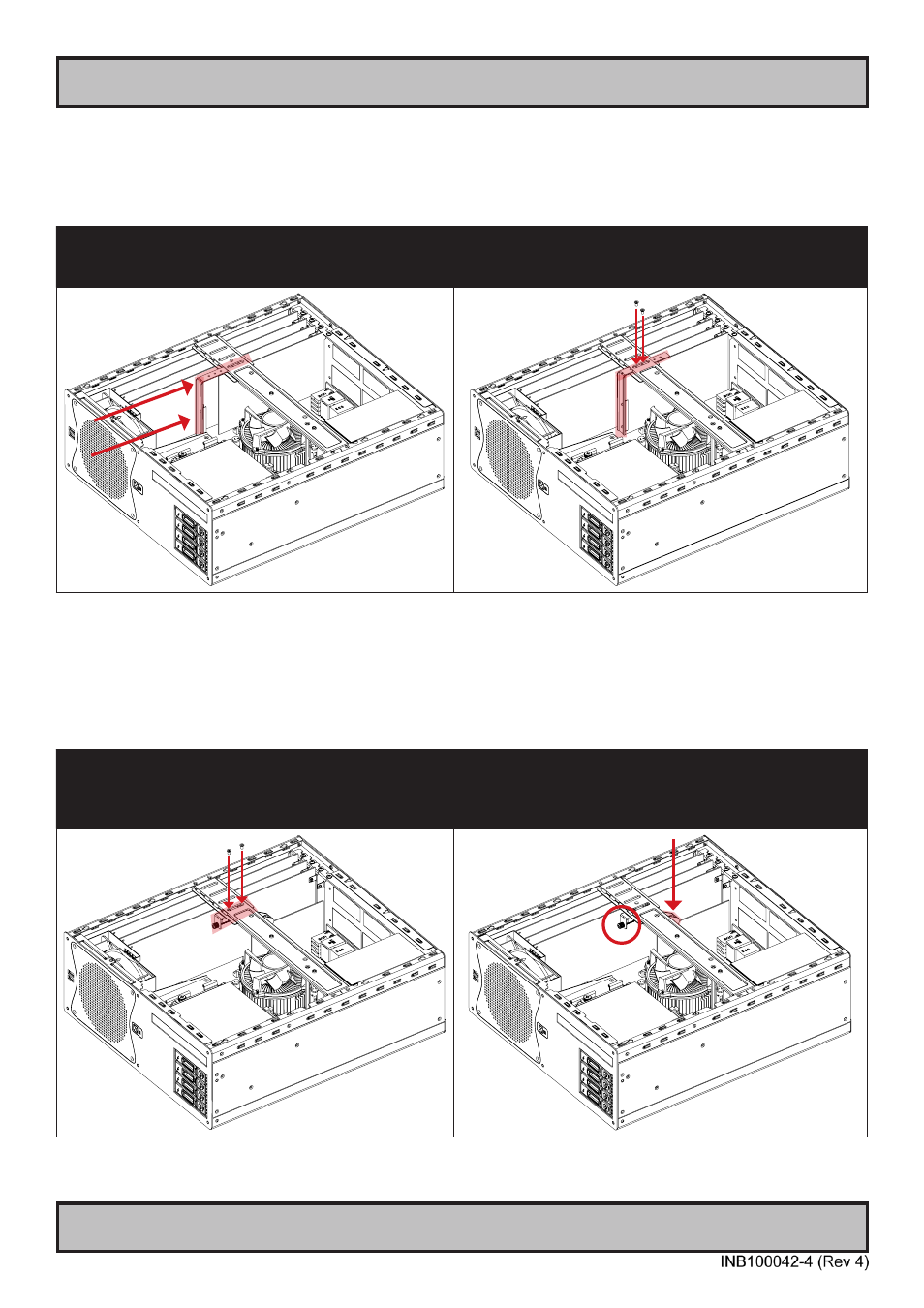

PCI / PCIe Card removal / replacement - Half Lenght & Full Height
Note: Areas of interest are marked in this section with circles and arrows in RED color. Please disconnect ALL
cables from the computer unit before proceeding!
1: Place the PCI / PCIe Half Length bracket as shown
and push/slide it in so it reaches the end of the card
and click in place at the end of the card.
2: Mount 2 screws on top to fasten the PCI / PCIe Half
Length bracket securely. Use a Pozidriv #2 screwdriver.
PCI / PCIe Card removal / replacement - Half Lenght & Half Height
Note: Areas of interest are marked in this section with circles and arrows in RED color. Please disconnect ALL
cables from the computer unit before proceeding!
1: Place the PCI / PCIe Half Length/Half Height bracket
as shown and fasten it with 2 screws on the top. Use a
Pozidriv #2 screwdriver.
2: Notice the screw at the end of the bracket. By turning
this clockwise using your fingers the support piece will be
pulled downwards and towards the edge of the card, thus
making it secured. Use a fair amount of force.
