Hatteland Display HT C02HI (Compact Entry Level) - Manual (Page 27)

27
IND100210-18
General Installation Recommendations
Installation
19 inch Rack Kit 4U - HT 00223 OPT-A1
Note: The unit can also be mounted inside a Hatteland Display 4U cabinet for rack mounting purposes. Please review
specifications and “Technical Drawings - Accessories” chapter in this user manual for additional information.

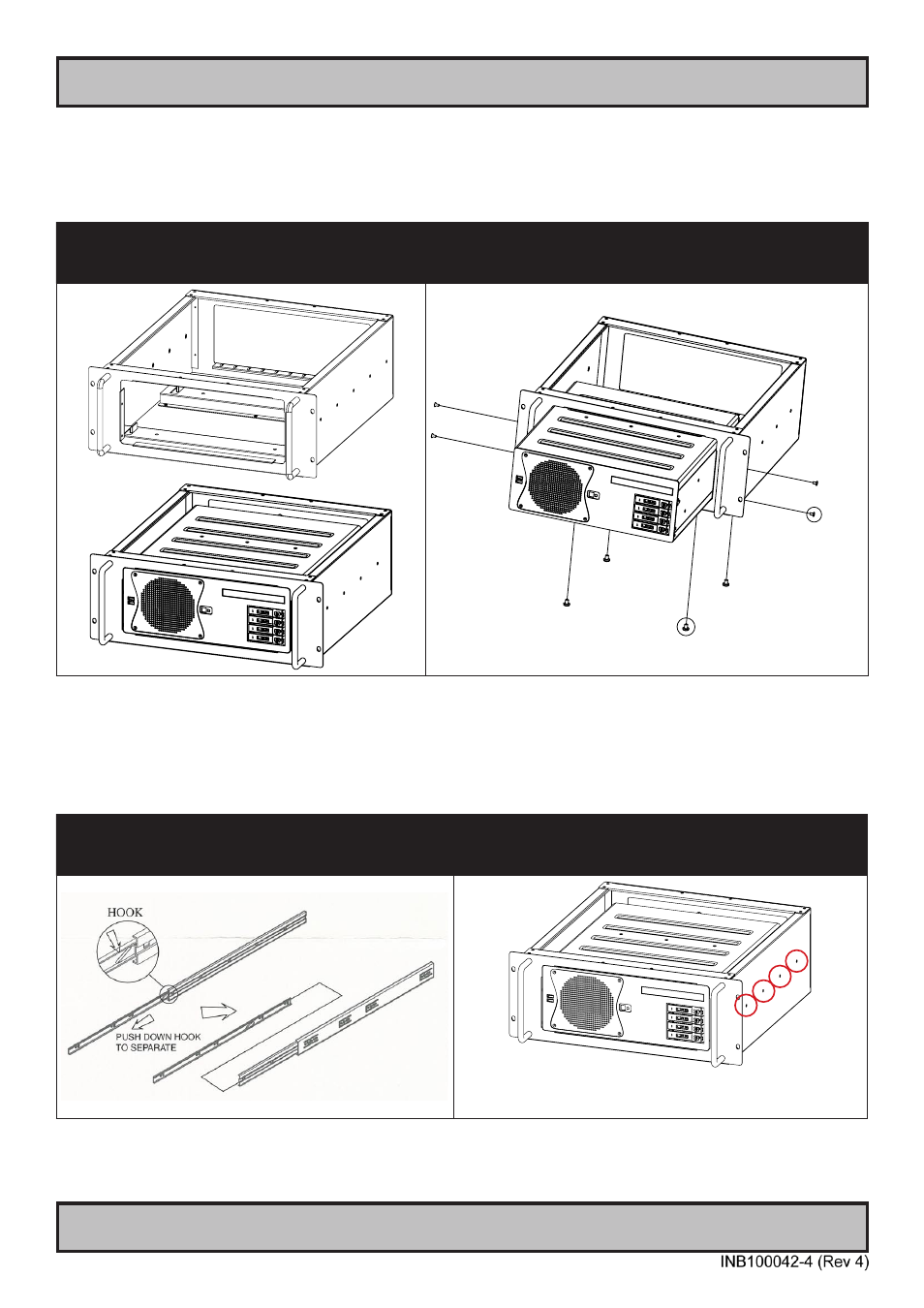

1: Empty 4U cabinet suitable for the computer and
final solution (note that there is no 4U top cover,
as the HT C02 model has its own already).
2: Showing mounting and screw (included) positions.
A = 4 Panhead M6 x 8 (mounted from under)
B = 4 Countersunk M4 x8 (4 on each side)
A
B
Sliding Rails - HT 00224 OPT-A1 (20”) / HT 00225 OPT-A1 (26”)
Note: The 19 inch Rack Kit 4U can also be mounted with sliding rails (20” or 26”). Please review 3rd party mounting
instructions found in the Sliding Rails package.
1: The 3rd party sliding rails shown below. The 4U
cabinet supports both 20” or 26” sizes depending
on option chosen.
2: Mount the sliding rails on each side of the 4U cabinet.
Fasten it with 4 screws (included) as indicated.
