Product Labels (Examples)
General
IND100240-12
Product Labels (Examples)

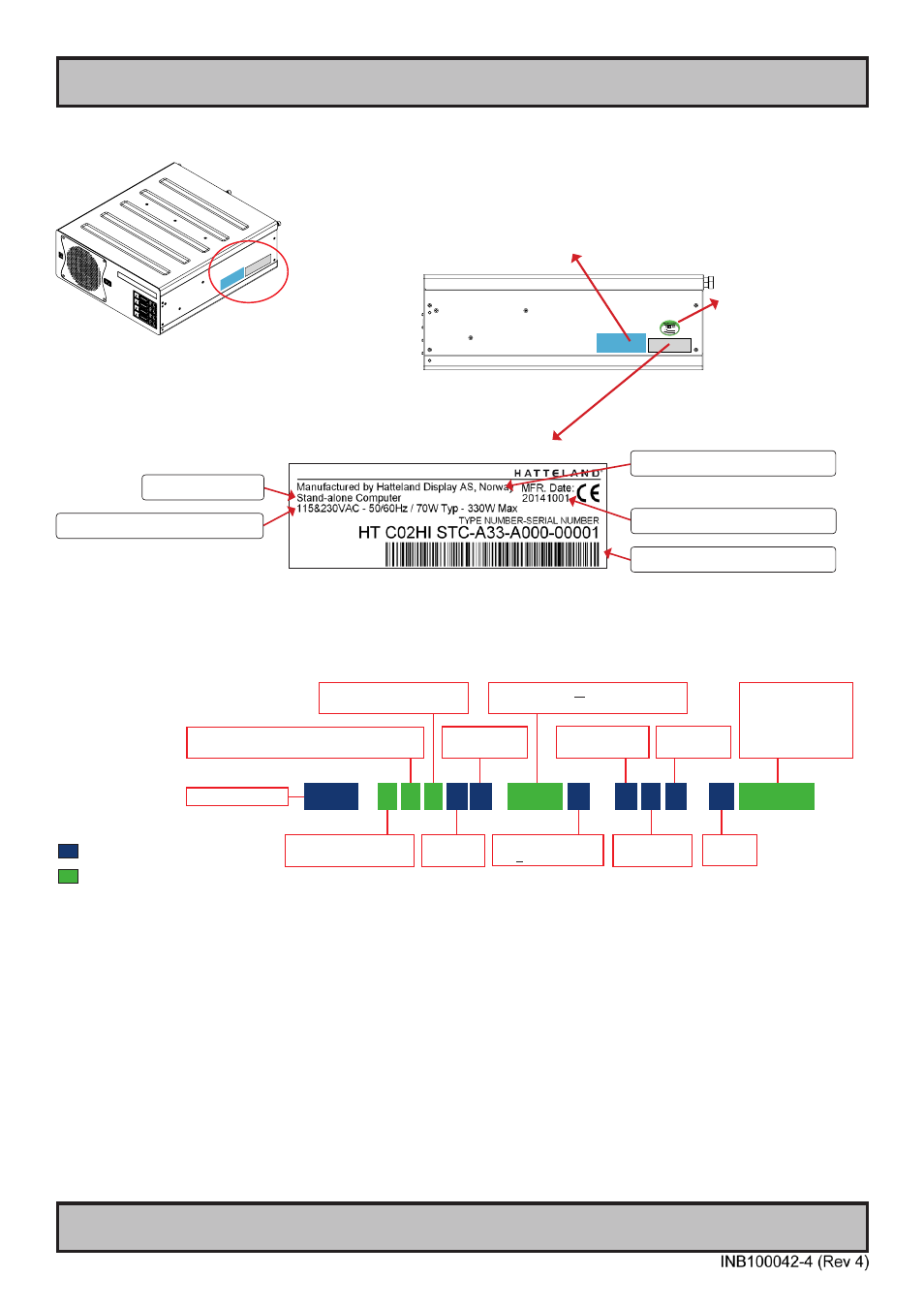

Serial Number Label Nomenclature
Serial Number Label Layout Example
Serial Number and Operating System (OS) license label placement
Only present if the unit was delivered with factory installed Operating System (OS) such as
Microsoft® Windows® Embedded Enterprise. Label size is 7cm wide x 2.8cm high. The same
Product Key is also printed on the “Product Declaration” sheet that follows the unit, check contents
of package. Note: For certain OS, there is no physical Product Key Label required or a Product Key
Number that must be entered during installation / usage of the unit.
Label Size: 6cm x 2cm. Silver background with black text
Barcode “128” (TYP+SNO)
Product Type
Input Voltages & Power Rating
Manufactured Date yyyymmdd
Manufacturer & Country
Computers - Typenumber Overview
Page 1 of 2
IND100780-6 - Rev 03 - 02 Jul 2013
Hatteland Display AS, Åmsosen, N-5578 Nedre Vats, Norway
Tel: (+47) 4814 2200 - [email protected] - www.hatteland-display.com
This document explains the type number structure for the Hatteland Display Compact, Rackmount and Compact
Fanless product range manufactured after 2012. Example “HT B22”, “HT C02” and “HT 221”.
- Example standard typenumber:
HT B22GG STC-A3J-M100
- Example standard description:
Fanless Computer IntelQM57 i5 2.40GHz 2GBRAM 250GBHDD OSNone ACDC HDCOM-4i
= Locked elements for factory standards.
= Custom/options - Can be customized by customer.
Product Range ID
Standard or reserved
customer chassis revision ID
Power
Input ID
Abbreviation for STandard computer or
reserved customer company name ID
Additional Hardware
Expansions
Confi guration or
reserved customer
hardware ID
Standard Electronics / Mainboard and
Technology or reserved customer Hardware ID
Standard or reserved
customer chassis type ID
Mainboard
ID
H T - M B 2 S T 1 0 0 2 - G
Processor Type
and Speed ID
G
Product Type ID
for Computer Range
Operating System
(OS) ID
C A
Memory Type
and Size ID
3
Storage Type
and Size ID
J
Typenumber Structure (example)
Type Number / Serial Label shown below may not match your actual unit, but the structure ID description are still
valid. Reference: http://www.hatteland-display.com/pdflink/ind100780-6.php
Computers - Typenumber Overview
Page 1 of 2
IND100780-6 - Rev 03 - 02 Jul 2013
Hatteland Display AS, Åmsosen, N-5578 Nedre Vats, Norway
Tel: (+47) 4814 2200 - [email protected] - www.hatteland-display.com
This document explains the type number structure for the Hatteland Display Compact, Rackmount and Compact
Fanless product range manufactured after 2012. Example “HT B22”, “HT C02” and “HT 221”.
- Example standard typenumber:
HT B22GG STC-A3J-M100
- Example standard description:
Fanless Computer IntelQM57 i5 2.40GHz 2GBRAM 250GBHDD OSNone ACDC HDCOM-4i
= Locked elements for factory standards.
= Custom/options - Can be customized by customer.
Product Range ID
Standard or reserved
customer chassis revision ID
Power
Input ID
Abbreviation for STandard computer or
reserved customer company name ID
Additional Hardware
Expansions
Confi guration or
reserved customer
hardware ID
Standard Electronics / Mainboard and
Technology or reserved customer Hardware ID
Standard or reserved
customer chassis type ID
Mainboard
ID
H T - M B 2 S T 1 0 0 2 - G
Processor Type
and Speed ID
G
Product Type ID
for Computer Range
Operating System
(OS) ID
C A
Memory Type
and Size ID
3
Storage Type
and Size ID
J
XX XXXXX XXX-XXX-XXXX-XXXXX NOMENCLATURE
HT C02HI STC-A33-A000-000001 Example Model Complete Typenumber-Serial
|| ||||| ||| ||| |||| ||||||- Serial Number, 6 digits (supports HWcode changes) ID
|| ||||| ||| ||| |||+-------- Additional Hardware/Software Configuration ID
|| ||||| ||| ||| ||+--------- PCI Configuration ID
|| ||||| ||| ||| |+---------- Hatteland Display Accessory USB Module Type ID
|| ||||| ||| ||| +----------- Power Supply Input Type ID
|| ||||| ||| ||+------------- Installed Storage Device(s) Type ID
|| ||||| ||| |+-------------- Installed Memory / RAM Type ID
|| ||||| ||| +--------------- Installed Operating System / No OS installed ID
|| ||||| ||+---------------- “C” for Computer Product Identification (Locked) ID
|| ||||| ++------------------ Abbreviation for Standard (ST) or reserved customer ID
|| ||||+--------------------- CPU / Processor Type ID
|| |||+---------------------- Motherboard Chipset ID
|| +++----------------------- Chassis / Electronics / Technology Revision ID
++--------------------------- Manufacturer ID / Product Series ID
H T A C 0 S T 0 0 0 2 H I C A 3 3
Quality Control (QC) label
