Physical Connections

IND100133-56

4 x EXPANSION AREA for Optional Modules:

The HT C02 computers supports a multitude of combinations and gives additional features to the unit by taking

advantage of the 4 available expansion areas. The table below lists all modules currently available for factory

mounting - including combinations and duplicates of each module possible (see next page).

Most of the modules connects internally through USB allowing for easy driver installation and usage, others

connects directly to the internal motherboard. For detailed pinout assignments and connector information, please

review “Pinout Assignments” and “Housing / Terminal Block Connector Overview” in this manual. Each option have

their own dedicated bracket to house the Optional Module securely to the unit’s outer chassis. For technical

specifications, see separate datasheets in this manual for each factory mounted module.

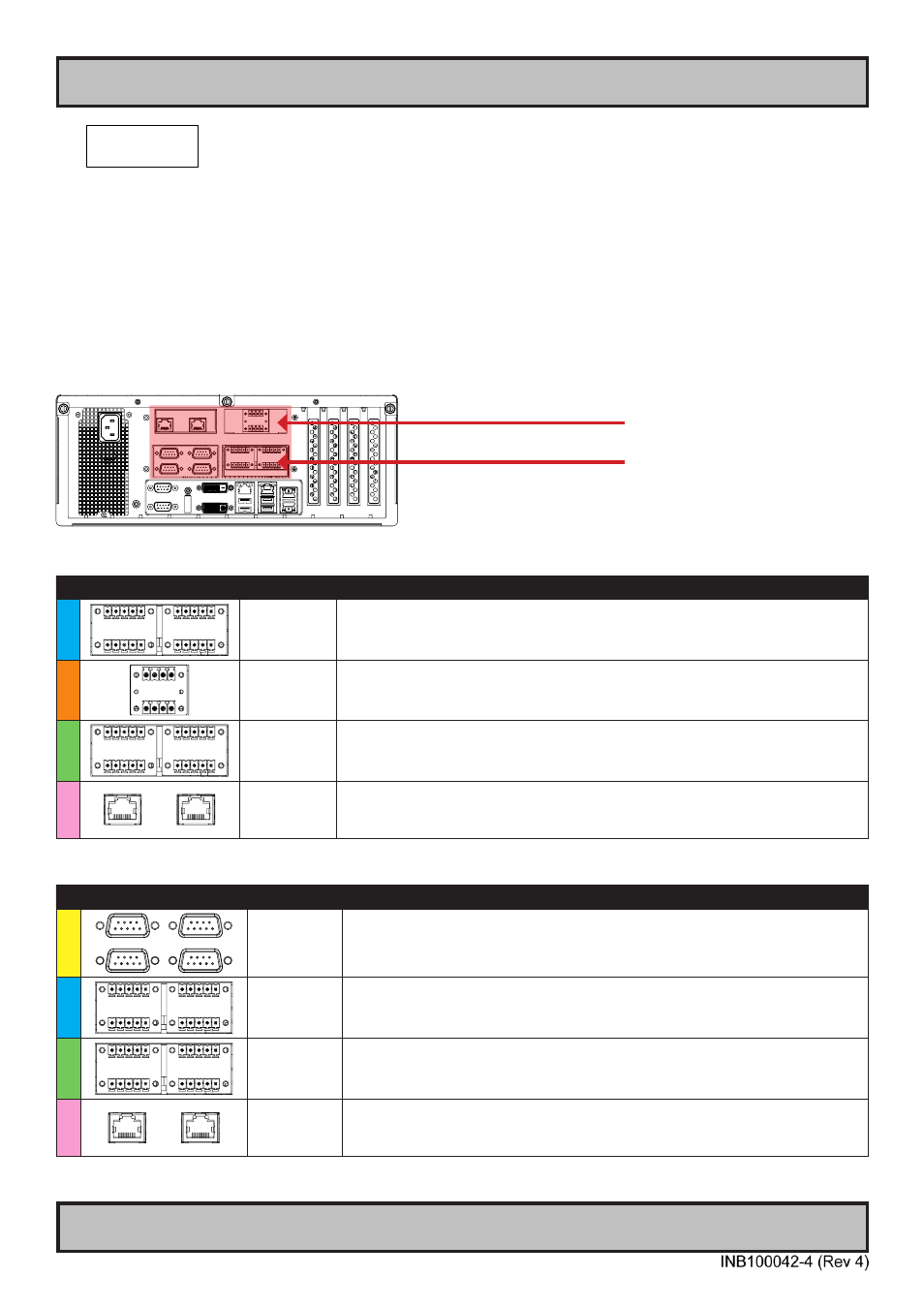

Example illustration showing 4 modules installed (LAN, CAN, COM, DIO):

Upper Row Modules - Options (review dedicated Datasheets in this manual):

# Illustration Module

Code ID

Description / Function

NMEA COM

RS-422/RS-485 NMEA Isolated / ECDIS Module

4 x 5-pin Terminal Block 3.81 connection

Typenumber: PCA100293-1

CAN

CAN isolated, 2 channel Module

Connector: 4-pin Terminal Block 3.81 connection

Typenumber: HT 00254 OPT-A1

DIO

Digital IO Isolated, 4 Output + 4 Input Module

Connectors: 4 x 5-pin Terminal Block 3.81 connection

Typenumber: HT 00268 OPT-A1

LAN

LAN 10/100Mbps, 2 ports Module

Connectors: RJ45

Typenumber: PCA100298-1

Lower Row Modules - Options (review dedicated Datasheets in this manual):

# Illustration Module

Code ID

Description / Function

COM

COM non-isolated RS-232, 4 channel Module

Connectors: 4 x D-SUB 9P Male

Typenumber: PCA100294-1
