General Installation Recommendations
Installation

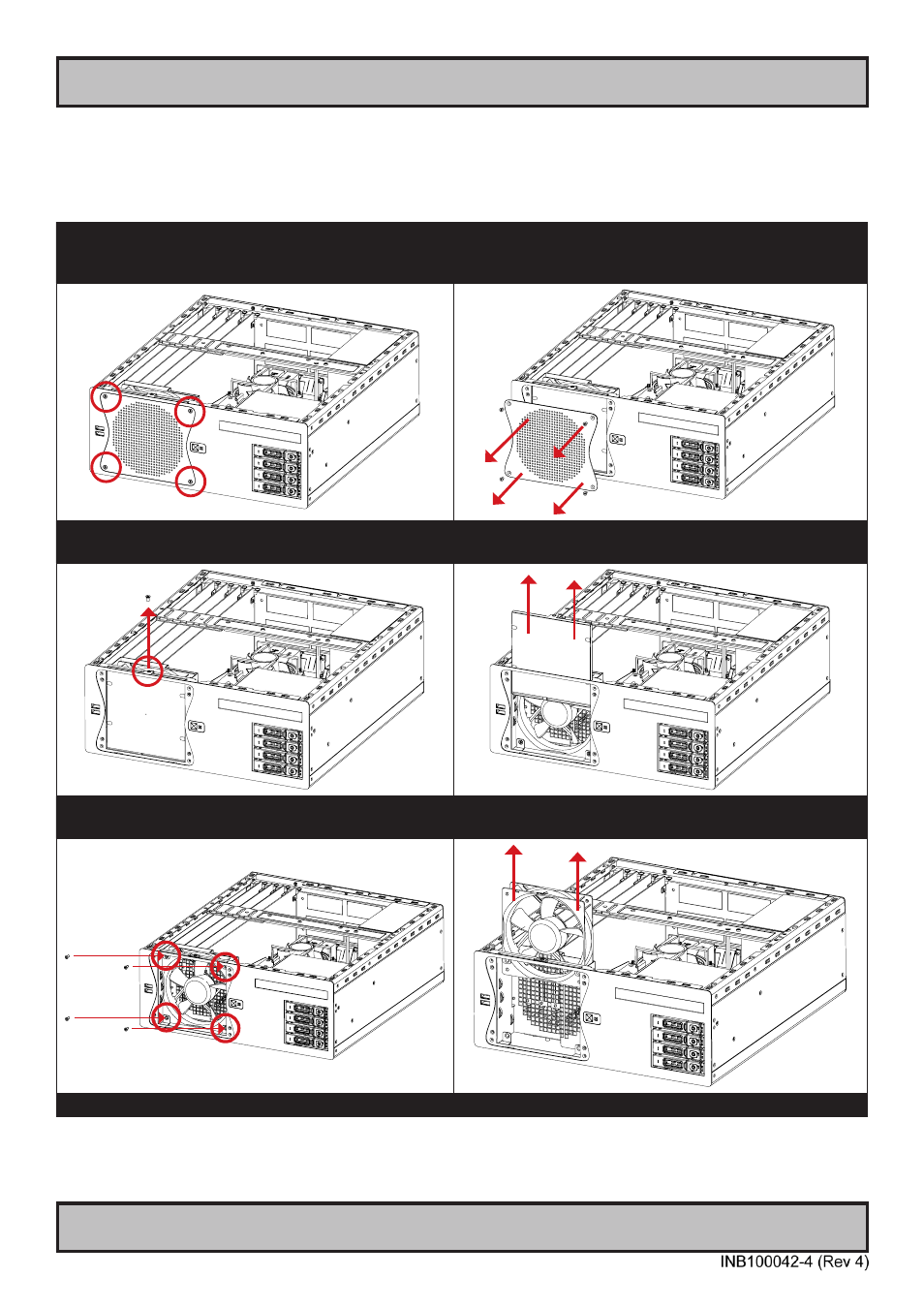

Front Fan removal / replacement
Note: Areas of interest are marked in this section with circles and arrows in
RED
color. Please disconnect ALL
cables from the computer unit before proceeding!
1: Remove cabinet cover (see beginning of this chapter)
Then unscrew 4 screws from the fan/filter cover in
front of the unit. Use a Pozidriv #2 screwdriver.
2: Gently pull out the fan/filter cover.
3: Unscrew 1 screw on top that keeps the Air Filter
Bracket in place. Use a Pozidriv #2 screwdriver.
4: Gently pull up the Air Filter Bracket.
5: Unscrew 4 screws that keeps the fan in place.
Use a Pozidriv #2 screwdriver.
6: Lift/slide the fan up from the unit.
Repeat the procedure backwards to finalize operation.
