AIR FILTER:
The computer unit features an cleanable / replaceable air filter located in front behind the metal hatch. Clean the filter
regulary or change it (based on environmental factors) to allow the unit to continuously cool properly and to prolong
the unit’s lifetime and the components inside. Please review Installation Chapter earlier in this manual for instructions.
Spare Part Air Filter can be ordered, check Data Sheet in this manual..
2 x FRONT USB2.0 (<5m) INPUT/OUTPUT:
Supports any USB1.1 (12Mbps) or USB2.0 (480Mbps) compliant peripherals. Drivers for most USB devices are
usually included in operating system or on separate installation CD’s delivered with Third Party products. USB 1.1
devices will operate in USB 1.1 mode (12 Mbps).
POWER LED:
The Power LED Indication ring will illuminate static green when powered on. When power is off and the unit is turned
off, the LED will also off.
Power Button:
To turn ON the computer, press down button and release it immediately. The Power LED indication riing will illuminate
green and the operating system will automatically boot. To turn OFF the computer, press down this button and hold it
for 3 seconds. The operating system may require additionally tasks to be performed before computer shuts down and
turns off the unit.
Reset Button: (Hard Reset)
To reset the computer in case of severe software failure, press this button. This reset button is a hard reset which
means the operating system will NOT be warned. Using this reset method may damage files and / or operating system
in worst case scenarios. Precaution should be taken when using this. To perform a safe software reset, press either
the power button, or use the operating system own reset functionality if possible.
MEDIA DRIVE (only Standard model):
By factory default a DVD/CD-RW recorder/player is installed. The drive features an eject button, a read/write activity
LED and a small hole to eject any media even if the computer unit is not powered on.

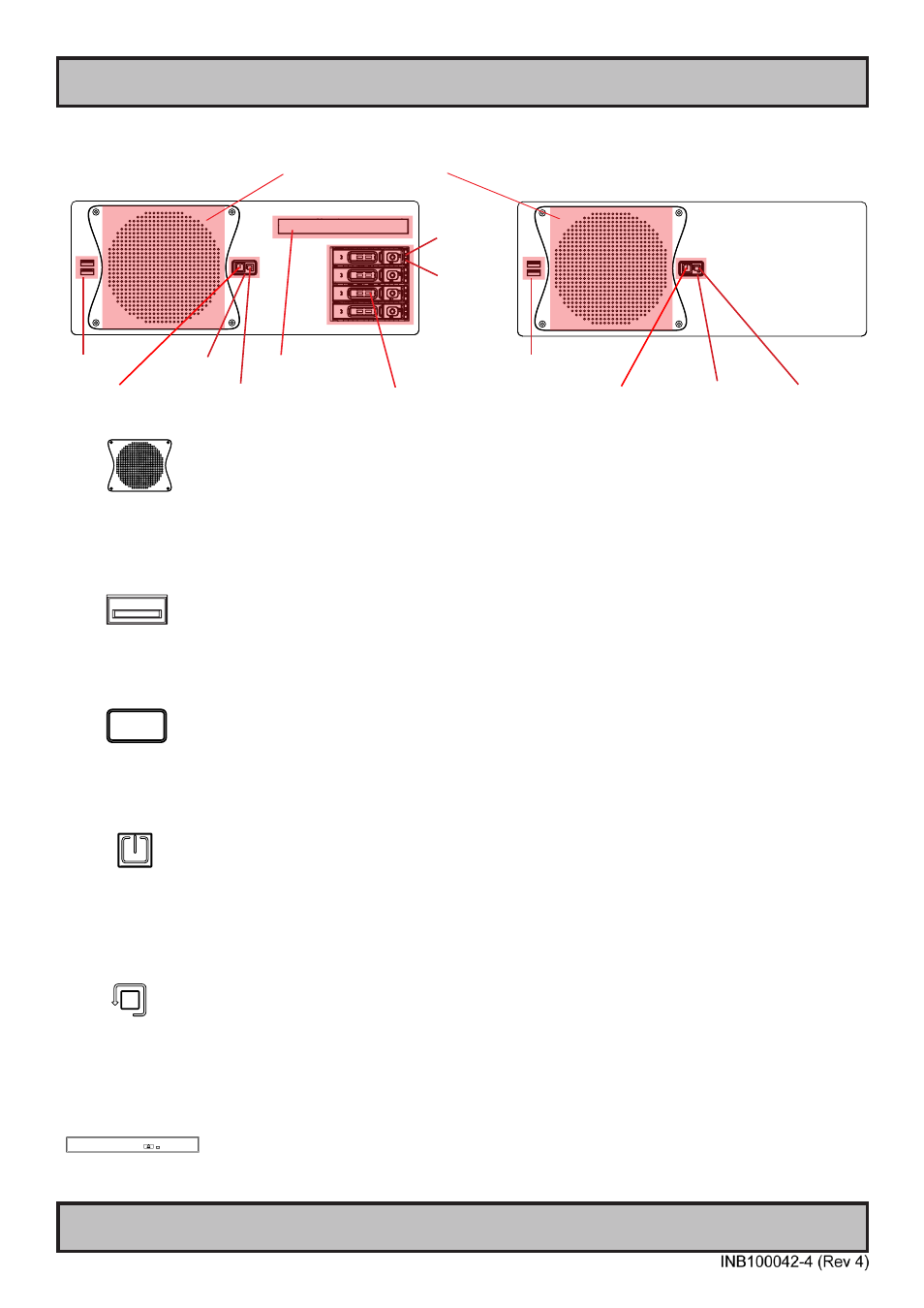

Front area of computer models
USB2.0
12cm FAN intake+filter
Reset Button Power Button
Physical Connections
DVD/CD-RW Power LED USB2.0
Reset Button Power Button Power LED 2.5” Removable SSD/HDD Trays.
Device Order: #3 (at top),
#2, #1 and #0 at bottom
SSD/HDD
Power LED
SSD/HDD
Activity LED
Standard Entry
