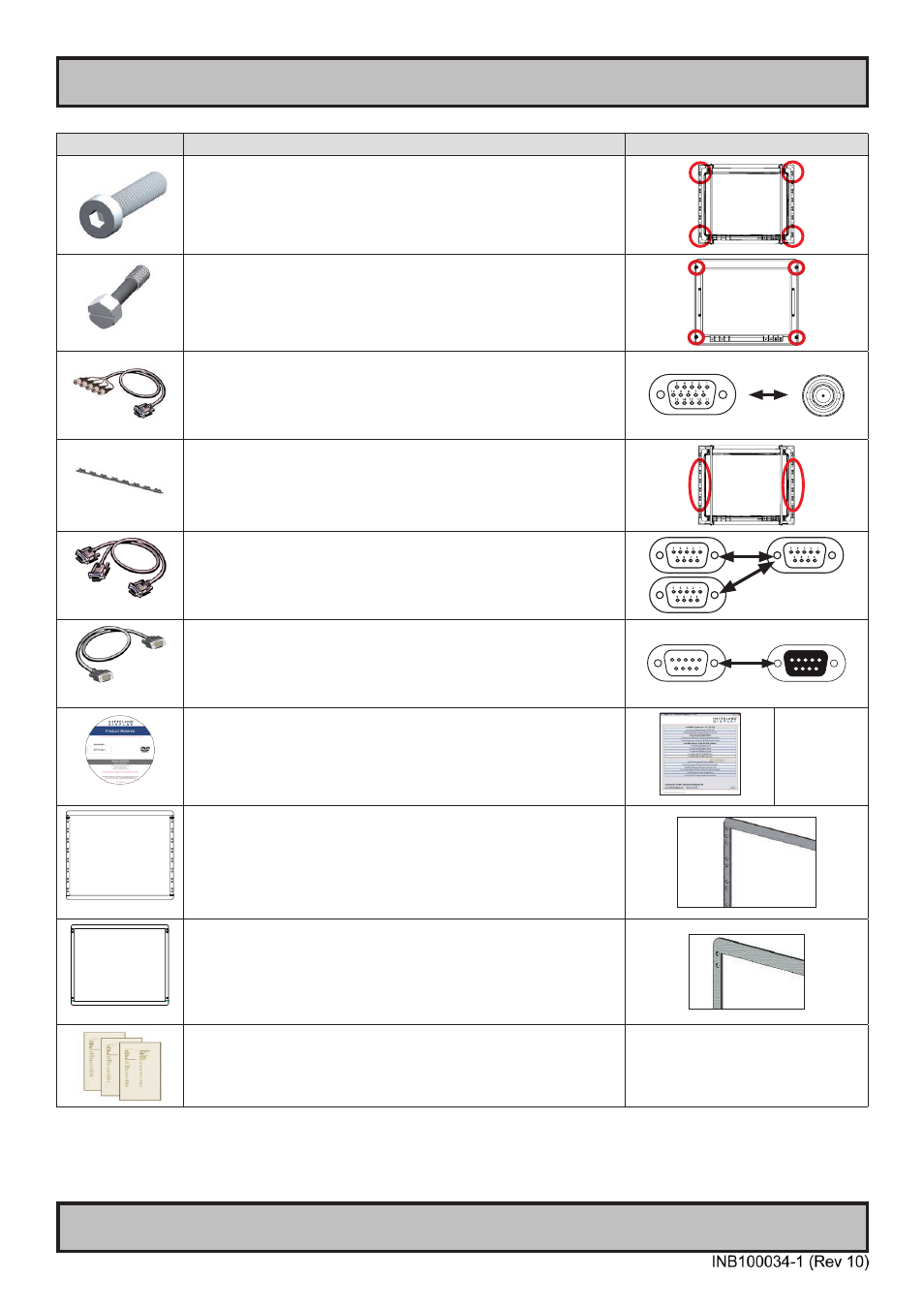

Contents of package
This product may be shipped with ( NOTE: Configuration and model dependent ):
Item Description Illustration
4 x Cylindrical screw M6x25mm, DIN7984 / head diameter 10mm / head
height 4mm / inside hex 4mm / A4 black
Note: Suitable for use with the NMD models.
58-77-216-24
4 x Southco Captive Screw L=26mm Stainless Steel Black Modify 10 mm
hex/w slot.
Note: Suitable for use with the CMD models.
VSD100113-1
1 pcs of Standard BNC Signal Cable.
1 x DSUB 15P Male to 5 x BNC 5P Male - Length: 2.0m (6.5 ft)
P005222-1
2 pcs of Silicone plug band (16 pcs of plugs ecah)
To provide drip-proof front frame. Mounted into the unused mounting holes
behind the handles during installation. See installation chapter.
Note: Only applicable for NMD models
VSD100641-1
1 pcs of Combined Serial/Touch custom cable.
2 x DSUB 9p Female to 1 x DSUB 9p Male - Length approx: 30cm (0.98 ft)
13750 es 100
1 pcs of Standard Serial Cable
1 x DSUB 9p Male to 1 x DSUB 9p Female - Length approx: 1.5m (4.9ft)
Note: -C7, -C8, -CF7, -CF8 models have 2 pcs of Standard Serial Cable.
MEDIA STD01
1 pcs of Documentation and Driver DVD. Contains also suitable touch screen
driver for units delivered with a factory mounted touch screen.
Menu and
Driver browser
for Microsoft®
Windows®
P005225-1
1 pcs of EMI / Water Sealing Gasket with 17 holes on each side.
Comes with adhesive tape: 3M 9080-High Performance Non-woven Double
Coated Tape. See installation chapter.
Note: Only applicable for NMD models
P004503-1
1 pcs of EMI / Water Sealing Gasket with 6 holes on each side.
Comes with adhesive tape: 3M 9080-High Performance Non-woven Double
Coated Tape. See installation chapter.
Note: Only applicable for CMD models.
1 pcs of factory Checklist sheet for the unit.
