Hatteland Display 20 inch - HM 20T07 CMD - Manual (Page 20)

20
IND100078-22
General Installation Recommendations
Installation

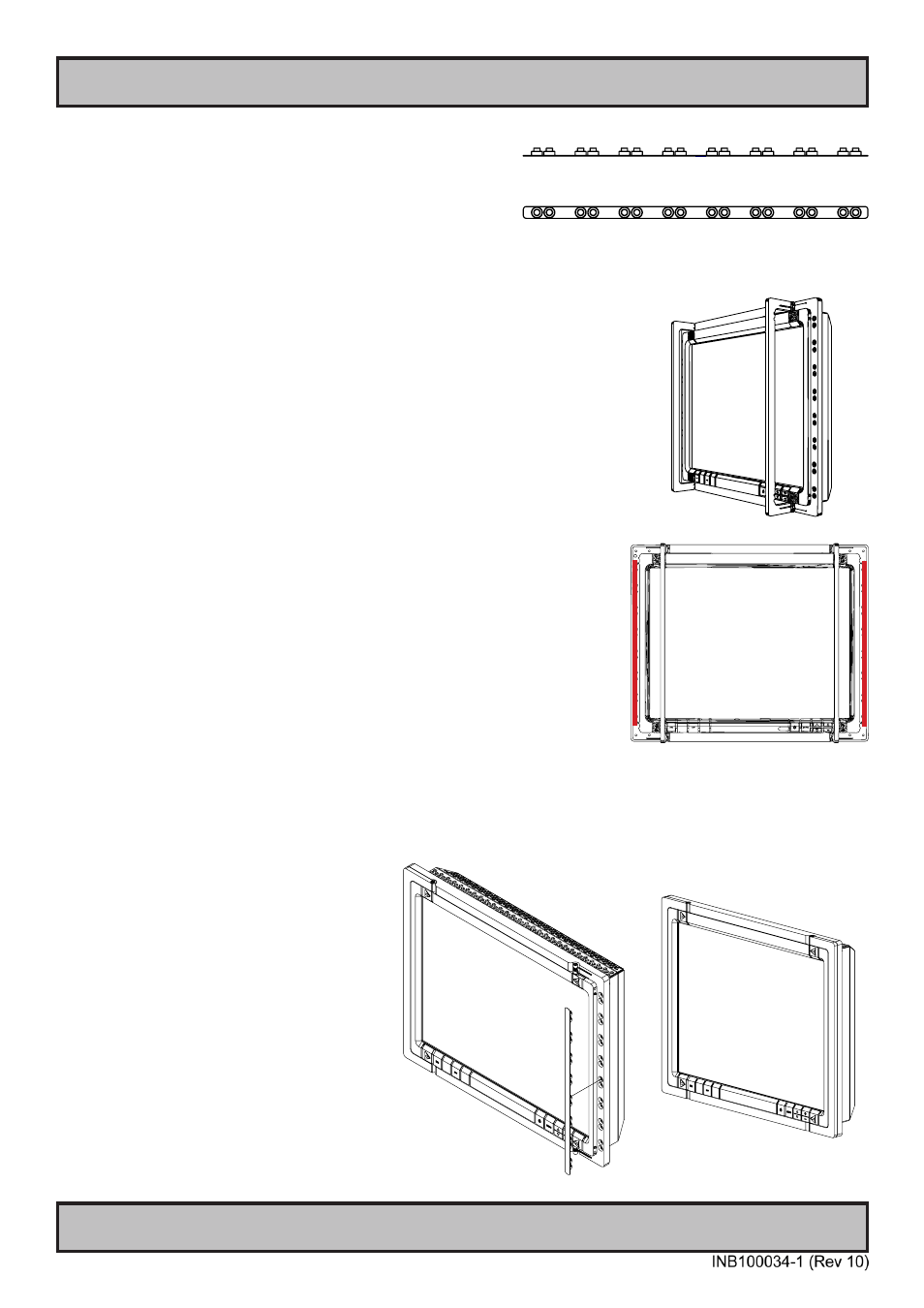

Mounting Hole IP Gasket (16 x 2 plug version)
This gasket (FIG 1) is only applicable for NMD models.
It provides drip-proof front frame. Mounted into the unused
mounting holes behind the handles during installation.
To mount it correctly, please review the quick guide below.
1: After the product has been mounted into a console or similar with screws,
leave the handles released as FIG 2 shows.
2: The gasket is mounted where the red area in FIG 3 shows.
3: Insert the gasket into the holes (FIG 4).
4: Close the handles (FIG 5)
FIG 2
FIG 3
FIG 1
FIG 4
FIG 5
