Pneumatic Step 6 - Process Settings>Trigger >Type
Continued from previous page
Figure 4-29 iQ Explorer
,
Process Settings > Trigger >Type

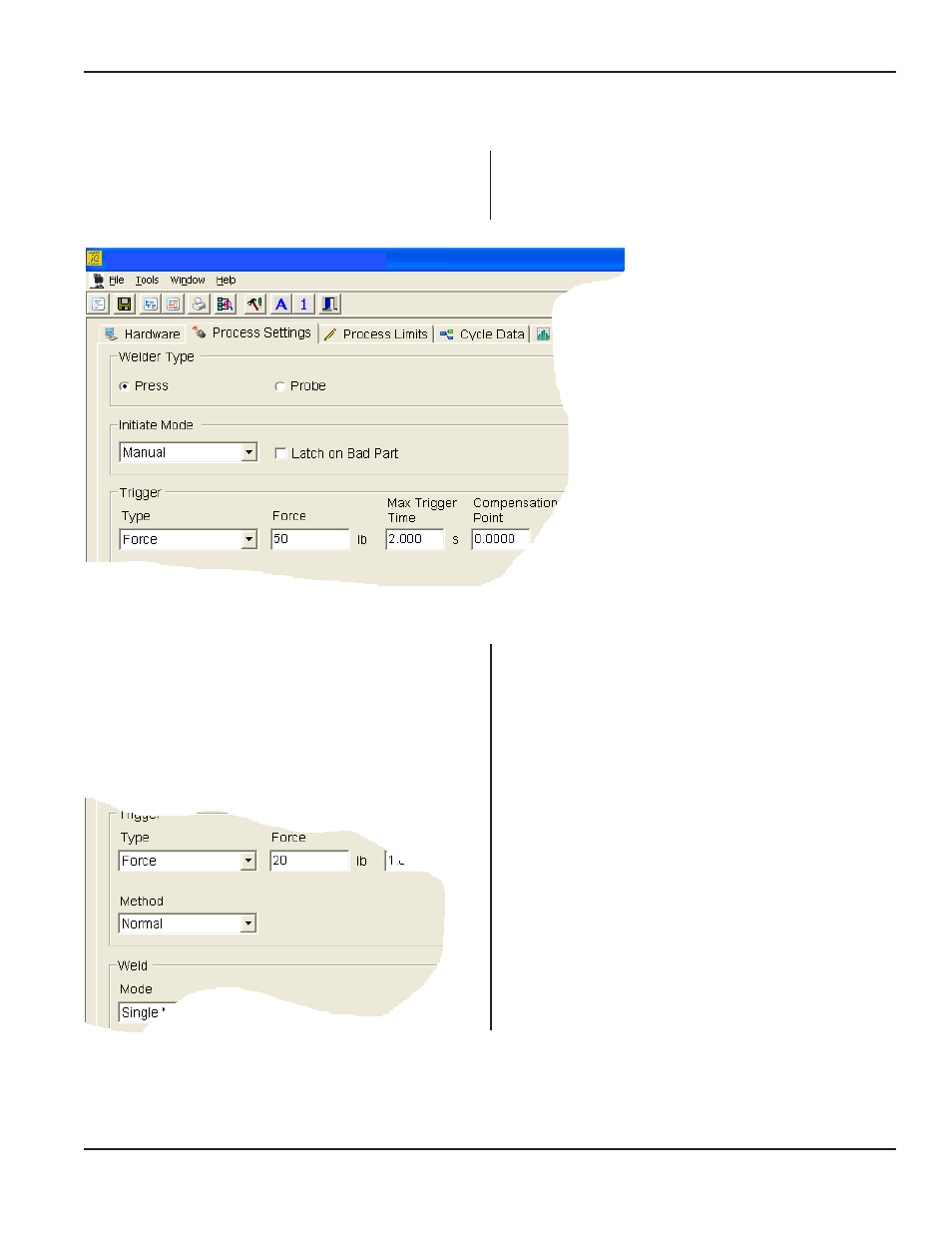

Figure 4-29 below shows Trigger Type and the other
example values discussed on the previous page.
Figure 4-30 iQ Explorer
,
Process Settings > Trigger > Method
Trigger, Method - In the programming example here,
we have chosen Normal.
Figure 4-30 below shows this selection.
Page 59
Dukane Manual Part No. 403-575-00
Section 4 - Operation
Lab Dukane iQ Explorer - [Welder 1- Setup 4]
