- 7 -

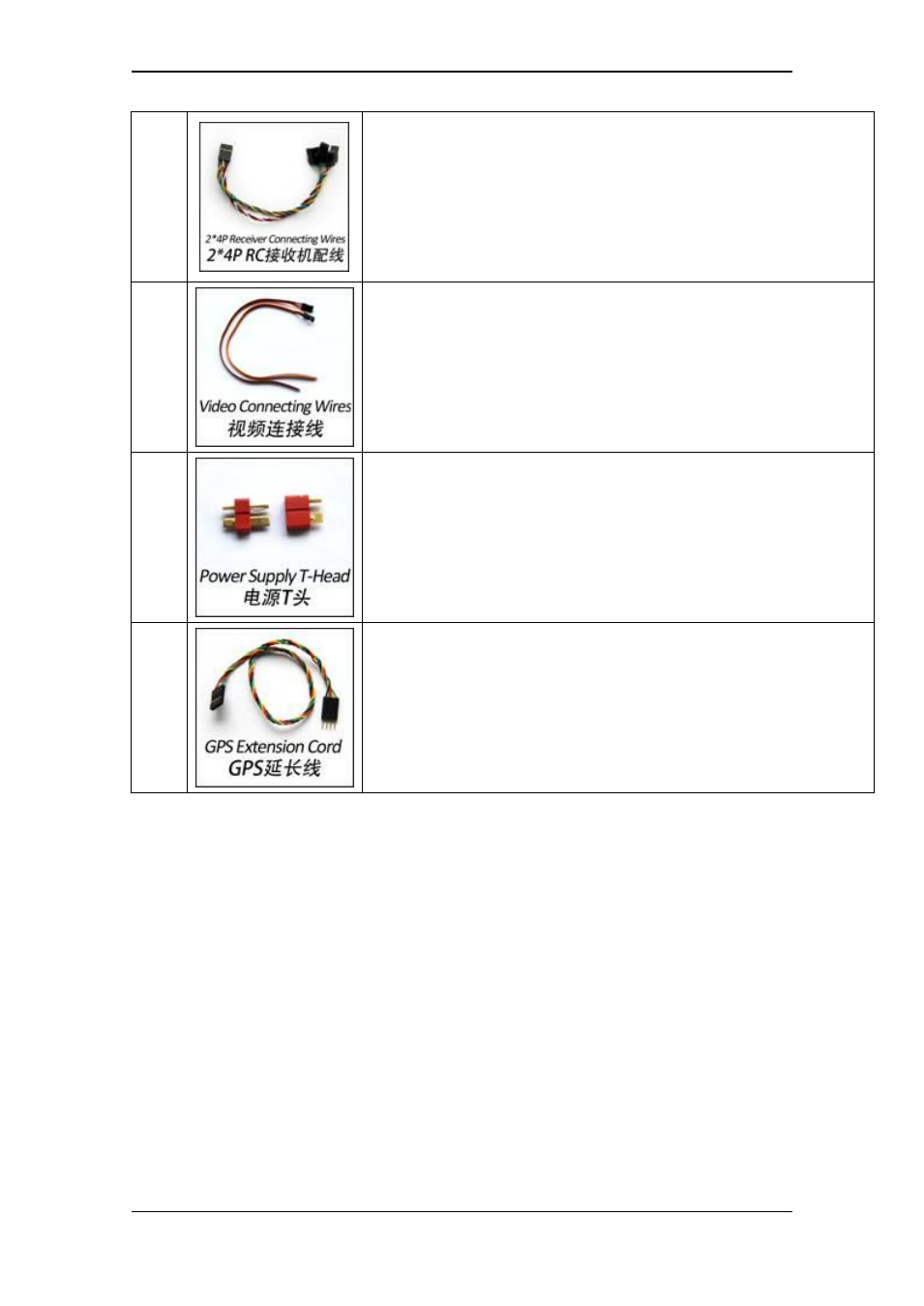

6
2×4P RC receiver wiring
For connecting the FY-41AP and RC receiver
Black&white ——AIL Orange——ELE
Green ——THR Yellow——RUD
Brown ——CH5 Blue——CH6(Not use)
7 For connecting the video camera or video transmitter
8
Can weld to power manager module for connecting the battery
and ESC
9 GPS extension wire
FY-41AP Connection Summary
The following pictures display the rotation direction and serial number of each motor.
Each ESC should be connected to the FY-41AP S1 - S8 interface. Pay attention once
you ‘ve chosen the control type, as the corresponding position motor rotate direction has to
be completely the same as in the picture. (If the motor rotate direction is not correct then
exchange any two of the three connection wires between ESC and motor to change the
motor rotate direction.)
