Connection Introduction

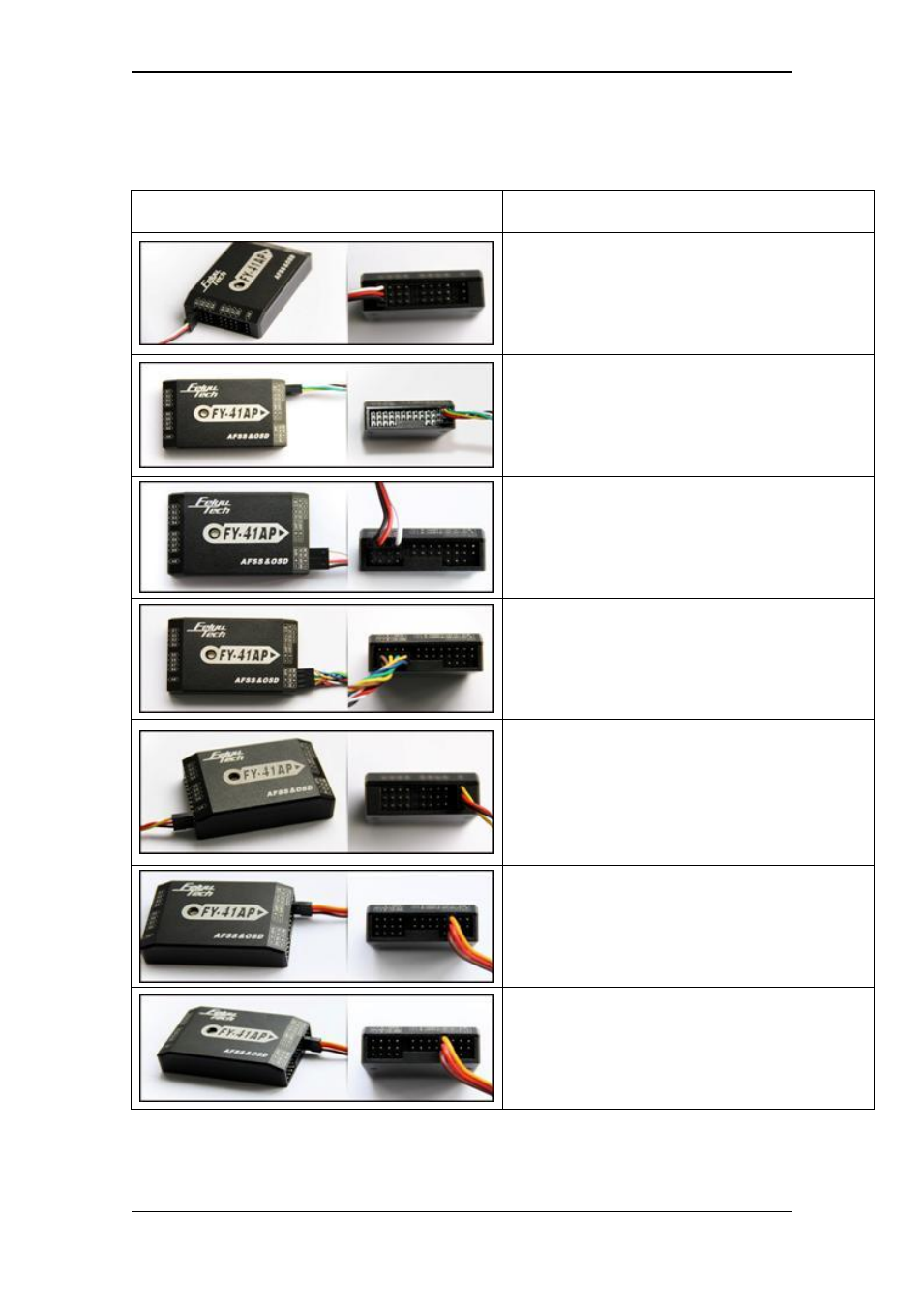

Connection Picture
Introduction
S1～S8 servo wiring connection
Pay attention to the signal wiring sequence
Power manager wiring
GPS module wiring
2×4P RC receiver wiring
For FY-41AP
Black&white
——AIL orange——ELE
green
——THR yellow——RUD
brown
——CH5 blue——CH6
Airspeed meter wiring(Not use)
Video camera wiring
Yellow-video signal
Red--+12V
Black--GND
Video transmitter wiring
Yellow-video signal
Red--+12V
Black--GND
