OSD interface instruction
The integrated OSD module supports PAL or NTSC form video input.

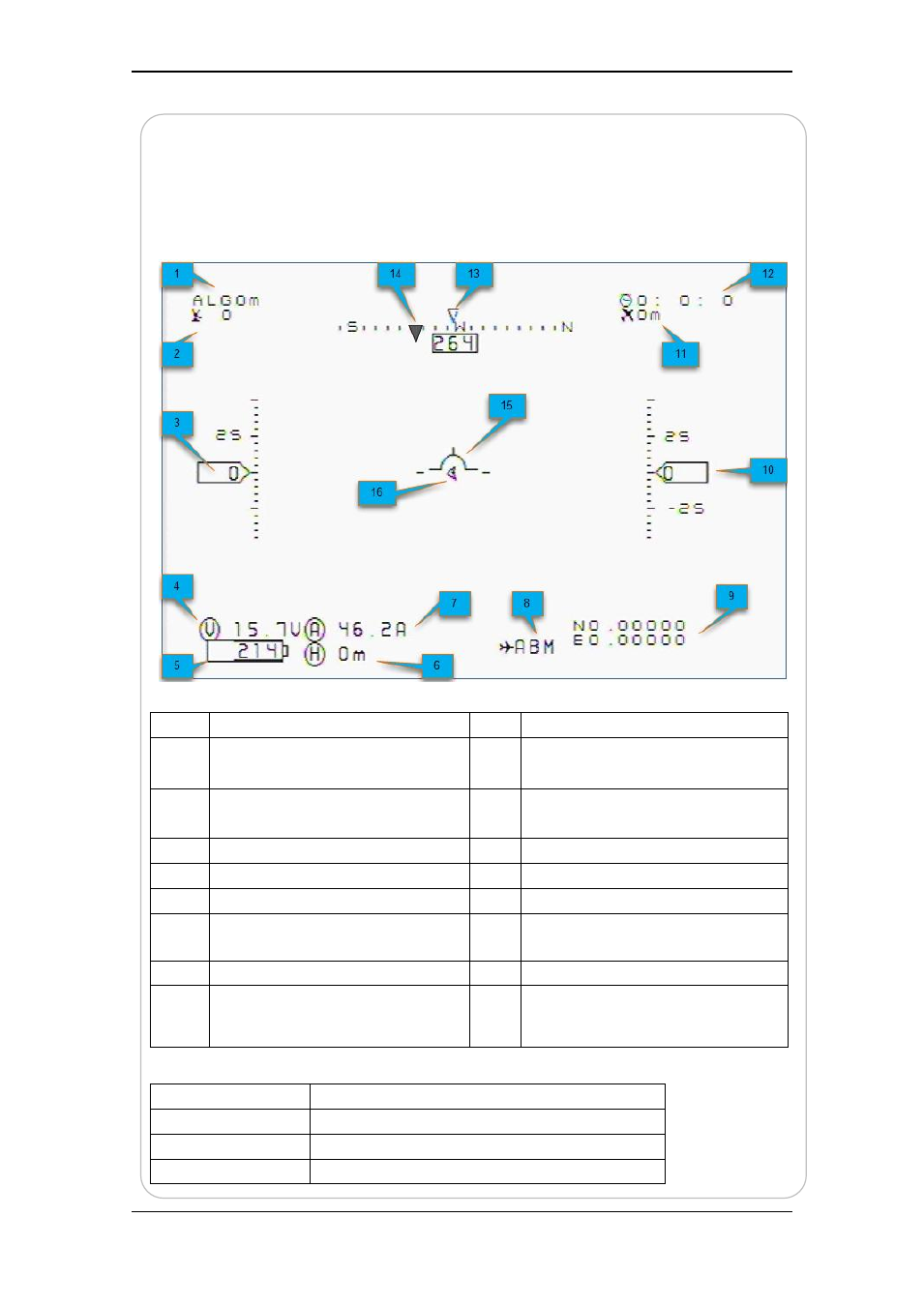

OSD display interface:
No.
Instruction
No.
Instruction
1
GPS altitude(Unit : m)
9
Current latitude & longitude of the plane
(Format: dddmm.mmm)
2
The quantity of satellite used for
positioning
10
Relative altitude (Unit : m)
3
GPS speed (Unit : km/h)
11
Flight total mileage (Unit : km)
4
The battery voltage (Unit : V)
12
Total flight time (Format:h : m:s)
5
Battery power consumed (Unit : mA/h)
13
Current course of flight (Unit : deg)
6
Distance to Home Point (Unit : m)
14
The angle of turning to the Home Point
(Unit : deg)
7
Power battery current (Unit: A)
15
Attitude table
8
Flight mode
16
Relative position of Home Point (Icon in
the middle position when the aircraft is
around Home Point.)
Flight mode instruction
Name
Introduction
3D
Attitude Stabilized Mode
NAV
Hovering Mode
RTL
Auto Return To Launch Mode(RTH)
