Performing Acquisitions
High Performance Power Meter 59

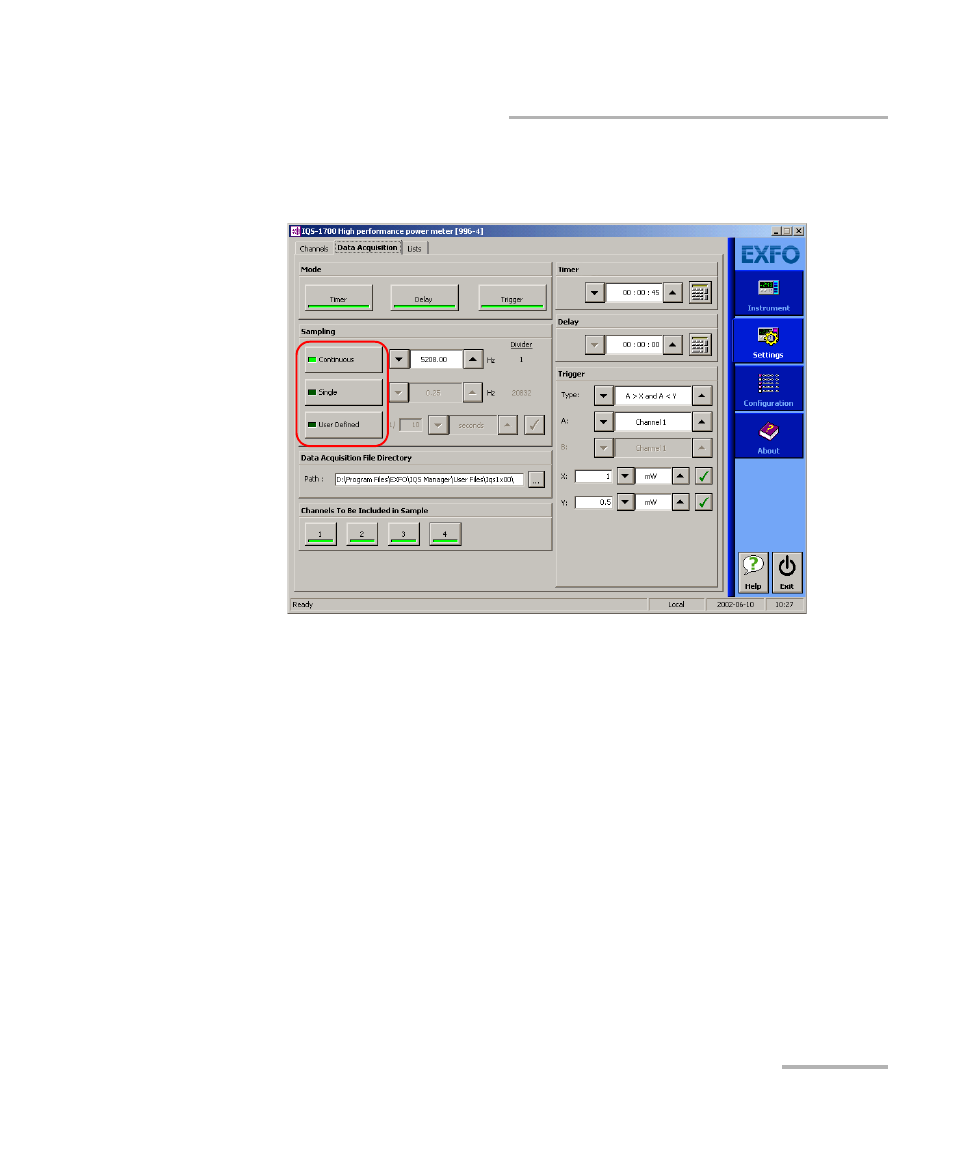

Selecting the Sampling Type
To select a sampling type:
1. From the Settings function tab, select the Data Acquisition tab.
2. Select the sampling type by clicking the corresponding button.
If you select Continuous, select the rate to use with the arrow buttons.
This rate is a divider of the maximum rate (5208 Hz). For example,
5208 Hz has a divider of 1, 2604 has a divider of 2 and so forth. To add
or remove dividers from the list of available values, see Editing the
Frequency Divider List on page 61.
