2b 2a – EXFO IQS-1700 High Performance Power Meter for IQS-500/600 User Manual
Page 18
Getting Started with Your High Performance Power Meter
10
IQS-1700
Inserting and Removing Test Modules
To insert a module into the controller or expansion unit:
1. Exit IQS Manager and turn off all your units.

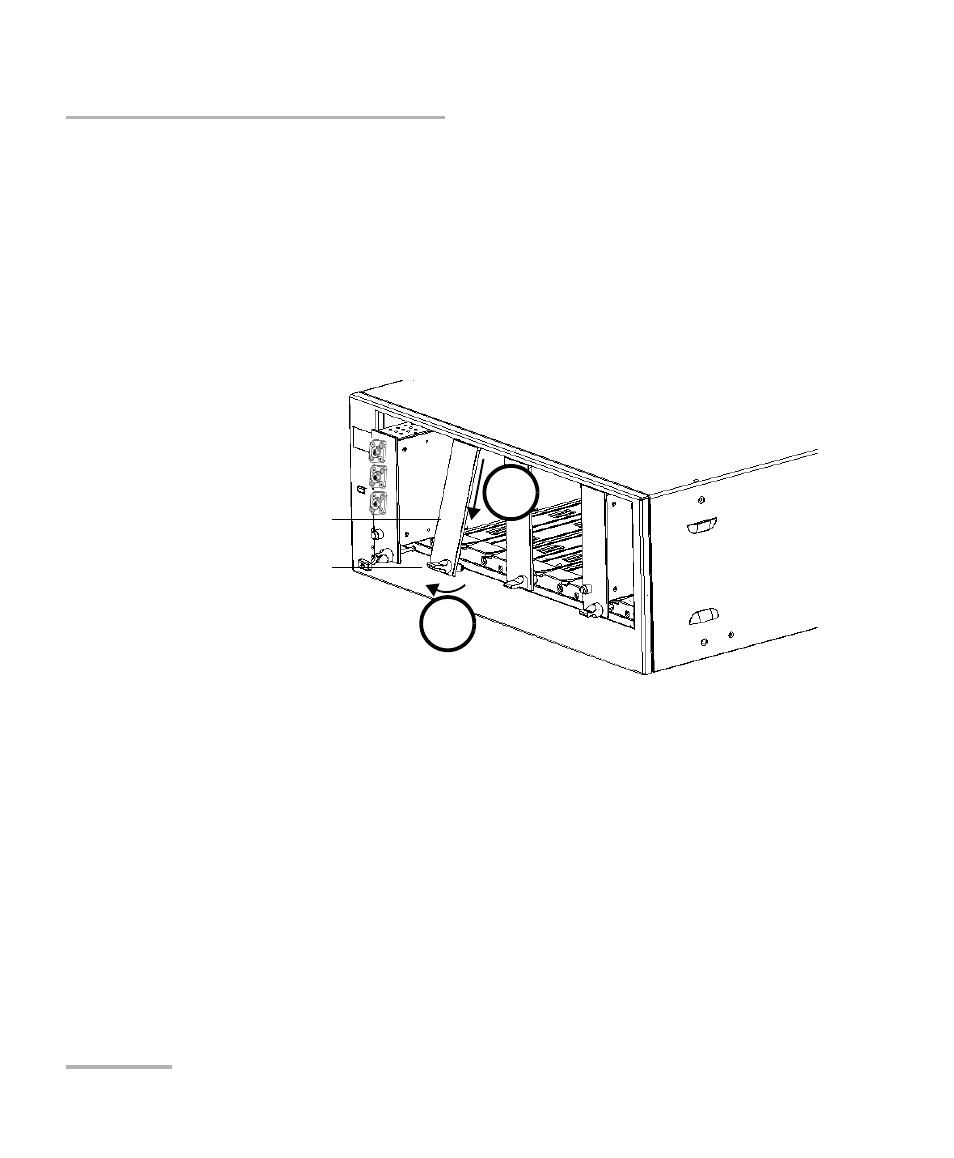

2. Remove the protective cover from the desired unused module slot.
2a. Pull the retaining screw knob firmly towards you and release the
bottom of the cover.
2b. Gently pull the top of the protective cover downwards, to remove
it from the unit grooves.
3. Position the module so that its front panel is facing you and the top and
bottom protruding edges are to your right.
Retaining screw
knob
Protective cover
2b
2a
