Introducing the AXS-200/610 Copper Test Module
Copper Test Module 3
LED Indicators
Note: When connecting a DSL cable to the WAN port, use the RJ-45 plug end of
the 26AWG cable provided with the unit. There is a 1500V maximum
transient voltage on telecom ports. Basic insulation is needed for external
telecom circuits.
LED Indicators

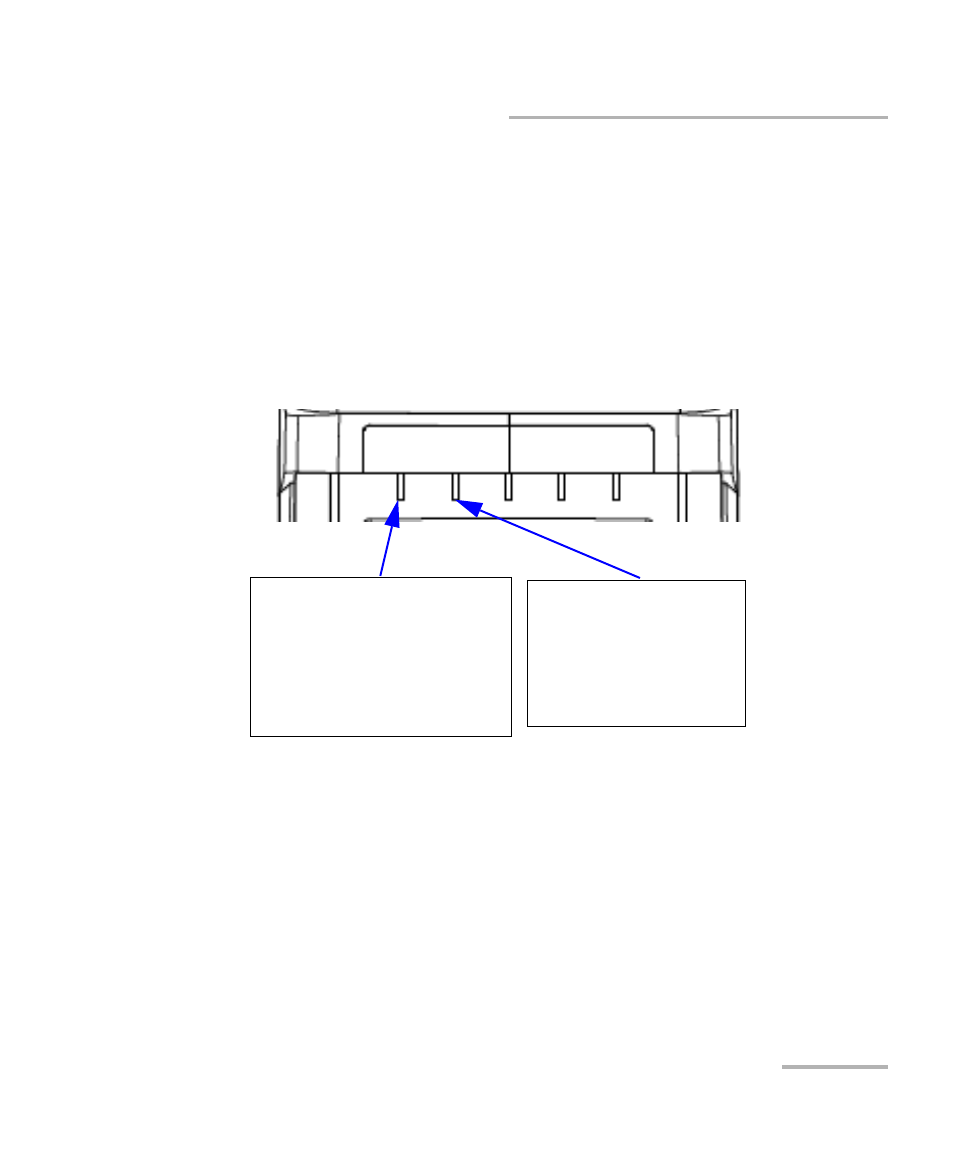

The graphic below illustrates the LED indicators across the top of the
AXS-200/610 unit.
Electrical Safety Information
Do not use the unit outdoors in wet locations. For information about
equipment rating for temperature, environment, and power supply, refer to
the Safety Information chapter of the AXS-200 User Guide.
VOLTAGE DETECTED
Red indicates that a voltage is
detected on the line. This is normal if
the voice switch is connected to the
circuit under test. If the circuit is
open, foreign voltage is present -
either DC (with battery cross) or AC
(induced from electrical power lines.
PASS/FAIL
Red indicates that test results
have failed the thresholds.
Green indicates that test results
were evaluated against the
customer-defined thresholds
and have passed.
