Auto CQ/Video-DSL Rate Prediction
Copper Test Module 41
Running CQ Auto Tests and Viewing Results

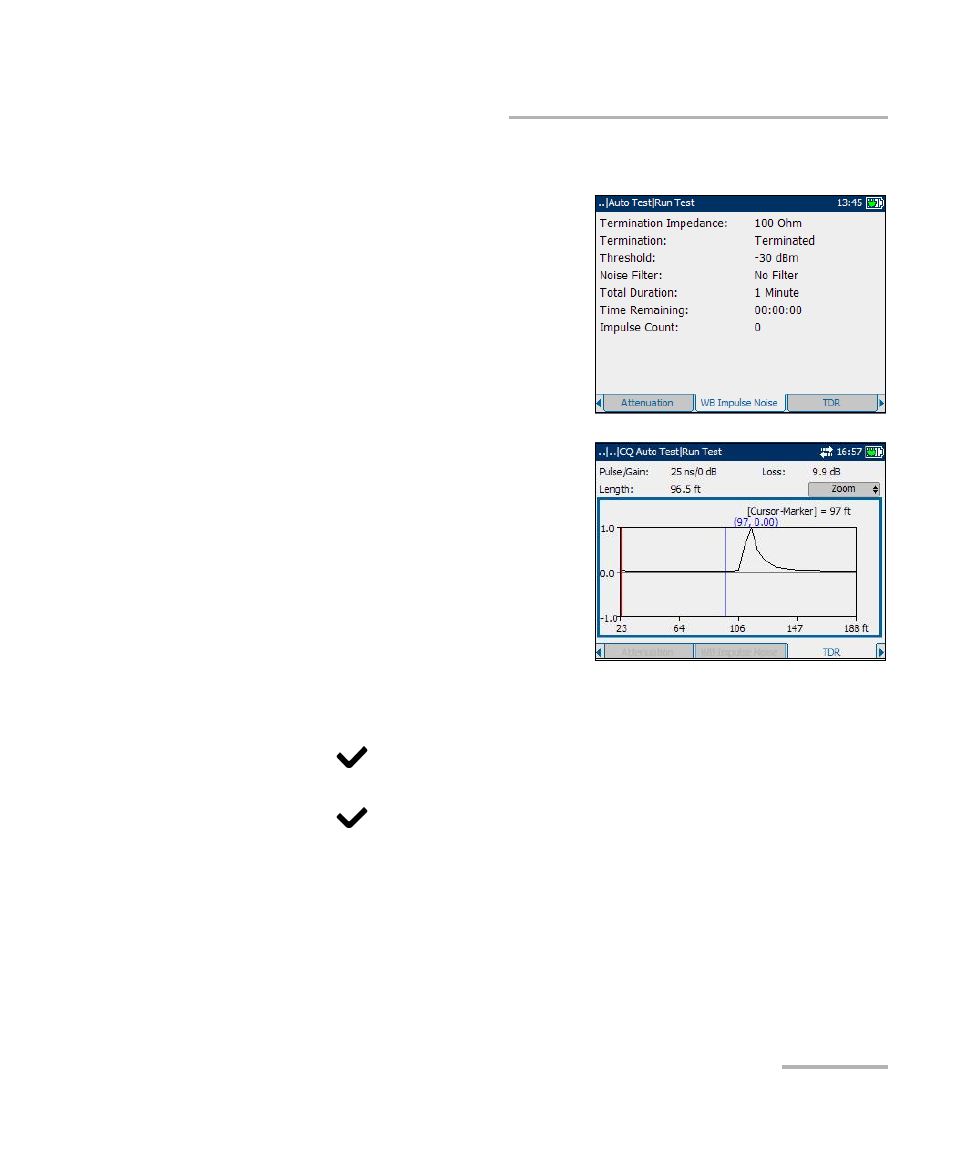

WB Impulse Noise
The WB Impulse Noise tab displays
the measured values from the
wideband impulse noise tests.
TDR
The TDR tab displays the time domain
reflectometry which is on and ready to
use upon completion of the Auto Test.
TDR first attempts to find the length of
the circuit and then searches all ranges
from shortest to longest for significant
events. Upon completion, the test
selects the nearest major event, sets
the range to match, and aligns the
cursor with the event. It remains
running (not in Fault Location Tests).
To make TDR adjustments via the keypad:
1. Press
to change the mode button (top-right corner of the pane)
and function of the up/down arrow keys.
2. Press repeatedly to cycle between:
³
Zoom
³
Gain
³
Pulse Gain (Pulse Width & Gain)
³
Range
³
Cursor and Marker Selection
