Page 88
Fault Location Tests
82
AXS-200/610
RFL Single Pair (2 wire) Test

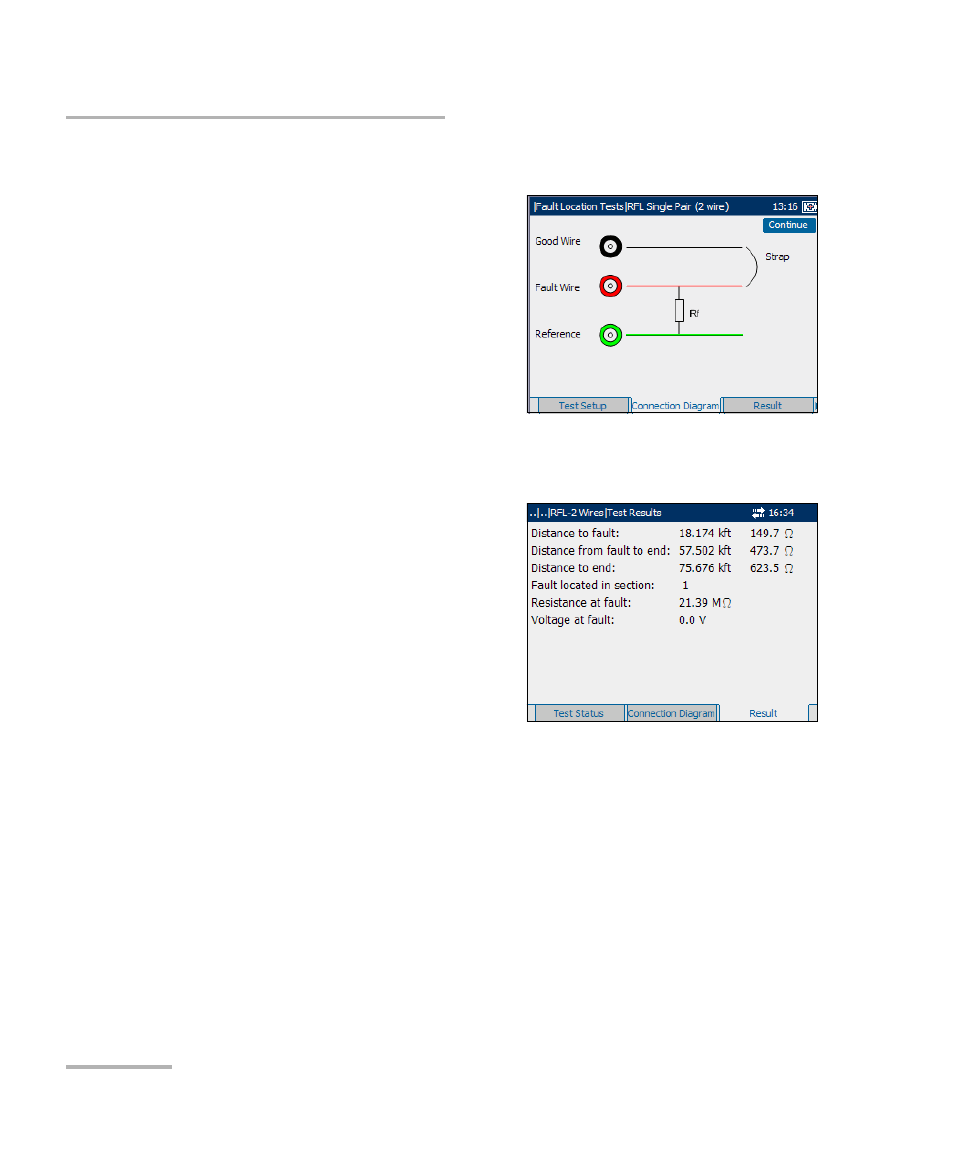

Connection Diagram
The Connection Diagram tab displays
how to connect the cables to the unit.
The green lead is used as reference.
Continue button allows you to resume
the test once the cables have been
connected.
Result
The Result tab allows you to view
detailed results of the RFL test.
