Wideband Tests
Copper Test Module 125
Data Rate Prediction
Attenuation

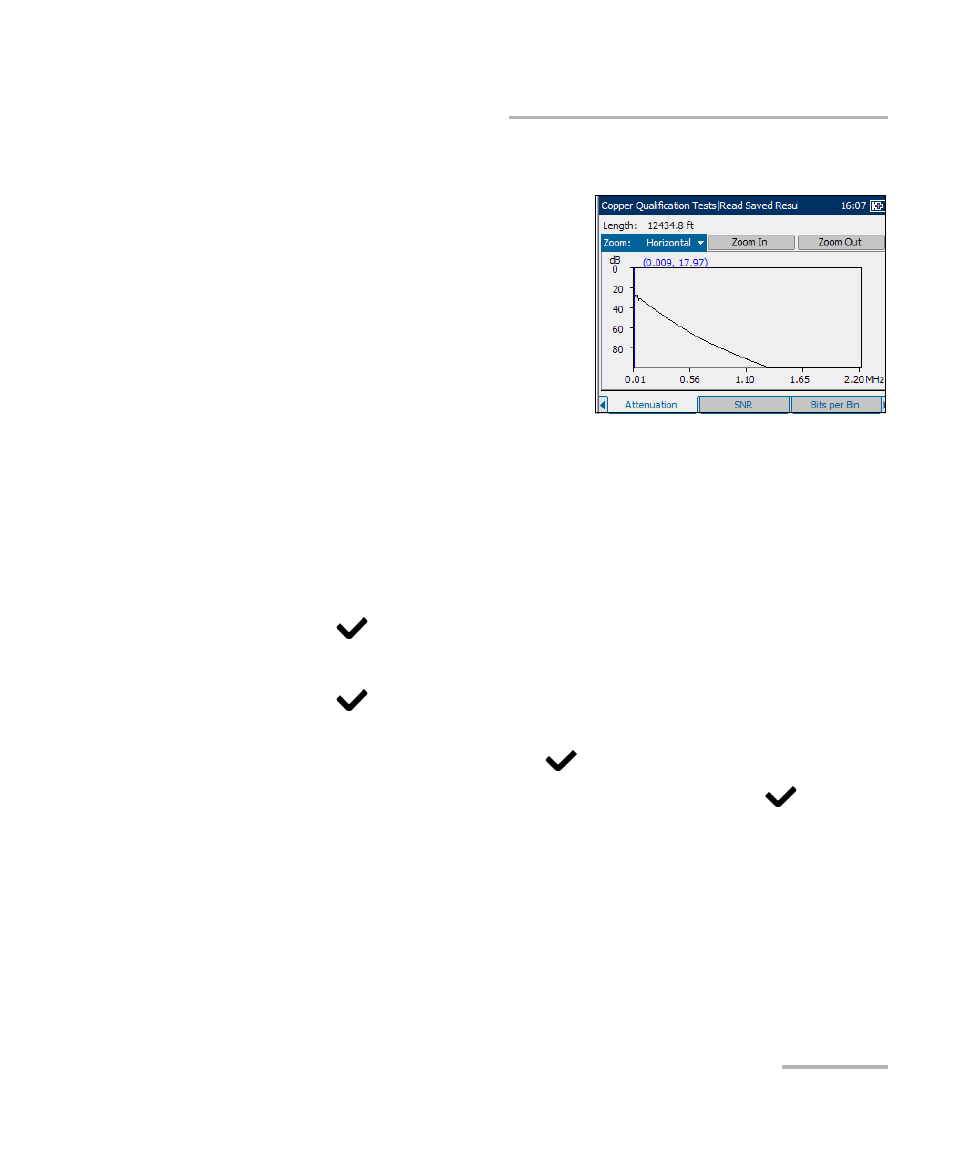

The Attenuation tab displays the
wideband attenuation test results in
graphical form.
The list and buttons on the tab are
described below:
³
(Zoom function List) allows you to
select the desired zoom function:
Horizontal Zoom or Vertical
Zoom. The selected function is
displayed in the box.
³
Zoom In allows you to increase the level of zoom for the selected
zoom function.
³
Zoom Out allows you to reduce the level of zoom for the selected
zoom function.
To zoom in/out:
1. Press
to display a list of zoom functions.
2. Press the up/down arrow key to highlight the desired zoom function.
3. Press to select the zoom function.
4. Use the left/right arrow key to highlight the Zoom In or Zoom Out
button as required, then press .
5. The graphical display zooms in or out accordingly. Press
repeatedly to continue zooming.
To move the screen pointer:
Press the left/right arrow key to move the screen pointer. The pointer value
updates dynamically.
